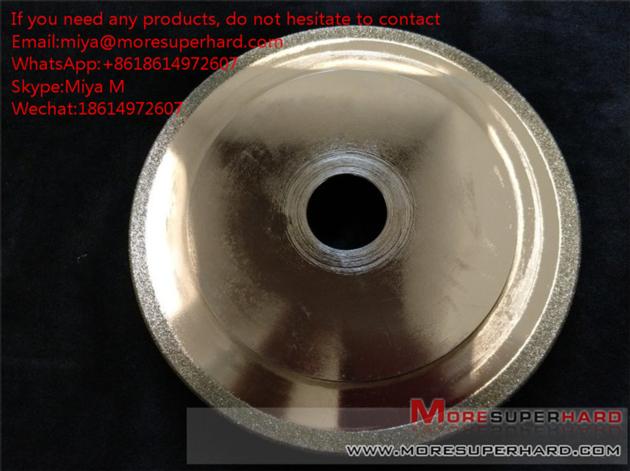

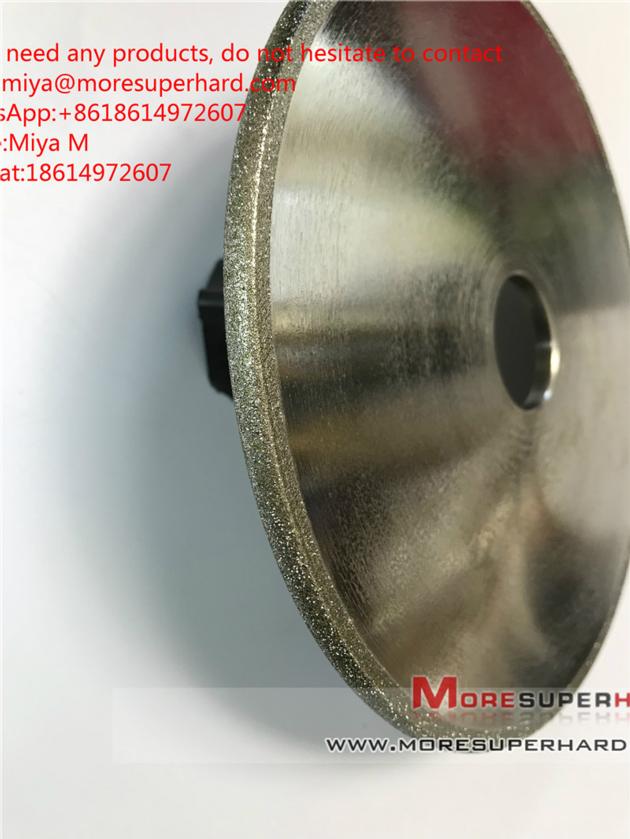

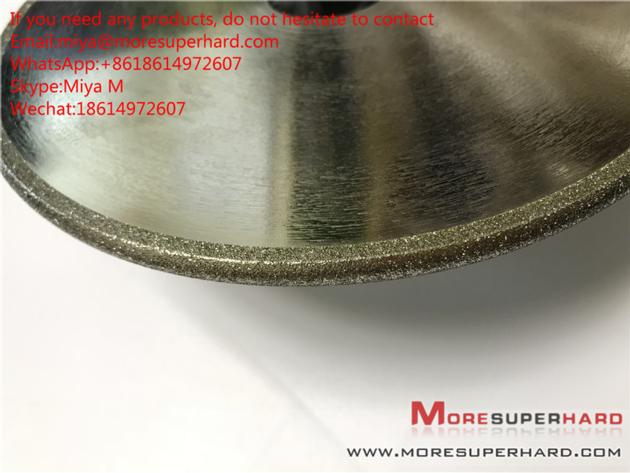

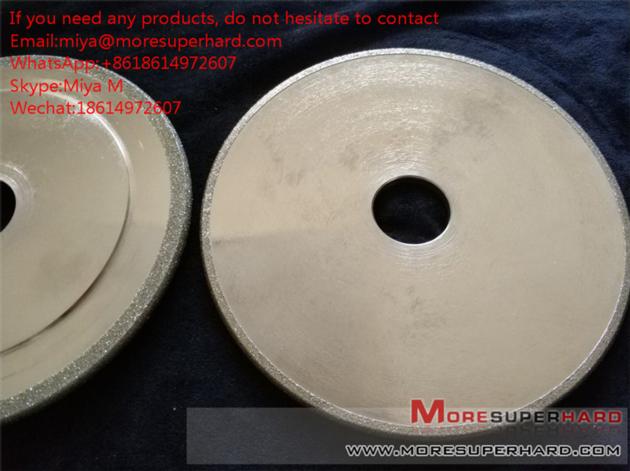

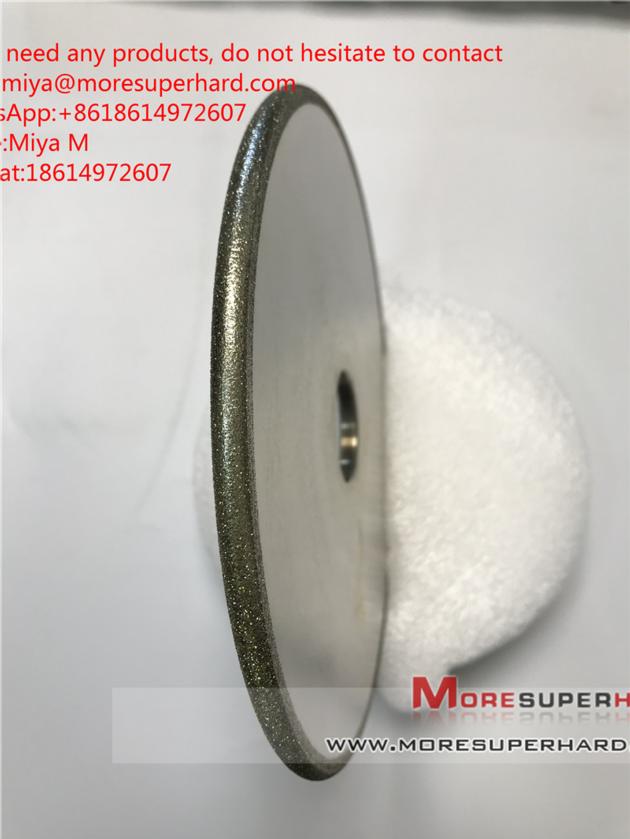

Name: electroplated diamond & CBN grinding wheel for non-ferrous industry application
No dressing,Body can be re-plated several times

Introduction:Electroplated diamond and Cubic Boron Nitride (CBN) tools are made up of a basic single layer or multi-layers (depending on application) of either diamond or CBN particles that are bonded to the tool surface using a nickel matrix. The product can be made with various shapes and they are suitable for special complicated profile, surface grinding ,Internal grinding, Slot grinding,Profile grinding and small and others form grinding. Electroplated diamond and CBN tools are used for surface grinding ,Internal grinding, Slot grinding,Profile grinding Ceramics, Glass, Tungsten Carbide, Ferrite ,Chilled Cast Iron, Founded Alloy Steel, Titanium Alloy And etc
Applications of electroplated bond grinding wheels:
diamond tools for non - ferrous industry application
* carbide (grinding green and sintered tungsten carbide)
* ceramic (grinding ceramics like SIC, AJO,ZrO, etc)
* automotive (grinding brake liners and cutting re-enforced rubber mouldings)
* pharmaceutical (grinding factitious knee joint)
* dental (profiling rubber bonded grinding pins)
* ferrite (grinding magnetic parts)
* chemical (grinding laboratory glass)
* graphite (grinding graphite parts)
* glass (grinding tubes, automotive components)
* Fiberglass ,Plastics and Electronic components, etc
CBN tools for metallic materials industry application
* High-speed tool steels
* Die steel
* Hardened carbon steels
* Hardened stainless steels
* Alloy steels,Titanium Alloy
* Aerospace alloys
* Abrasion resistant ferrous materials, etc
The Specification Of electroplated bond grinding wheels:

Diameter(mm) Hole(mm) Blank thickness(mm) Return width Grit size Maximum RPM
16 3 0.3 5 200 20,000
19 3 0.3 5 200 20,000
20 3 0.3 6 200 20,000
22 1.8 or 3 0.3 7 200 20,000
25 2 or 3 0.3 9 200 20,000
30 3 0.3 11 200 20,000
38 3 0.3 11 200 20,000
40 3 0.5 12 150 20,000
45 3 0.3 17 150 20,000
50 3 0.5 17 150 20,000


Advantages of electroplated diamond & CBN wheels:
1.No dressing procedure necessary,Body can be re-plated several times
2.High geometric and proportion precision,Complicated forming
3.retain their original shape and dimensions throughout their working life
4.Simple electroplated process, less investment convenient manufacturing
5.Excellent surface roughness, high grinding efficiency , long tool life
6.free-faster cutting, no dressing, less heating due to the diamond particles protruding from the surface.

common used spect:

Specification
Shape Specification(Diameter) Grit
Plane grinding wheel 50~400 36#~2000
Irregular grinding wheel Less than 400 36#~2000
Electroplated grinding dot 0.15~50 36#~2000


Please provide us details when you order, For example,
Product needed: Resin bond diamond grinding wheel
1) Diameter   (25, 40,100,200,300…750mm)
2) Hole/state bore dimension
3) Thickness   (4/5/6/8/10/…40/50/60mm)
4) Shape (1A1 /1A1R/1A8/1A1W/1L1/1F1/6A2/12A2/11V9/4A1/14A1…)
5) Grit size (16/18, 18/20…40/45,80/100…325/400. In GB or ISO standard)
6) Other request
