Electronic Prescription Home use Handheld UV Radiation Treatment System KN-4003BL2D with battery

New Model Medical UV Phototherapy with UVB lamp for Vitiligo and Psoriasis KN-4003BL2D

Intended Application:
patients with skin diseases of vitiligo, psoriasis, pityriasis rosea, eczema are suitable for the ultraviolet irradiation treatment.
Products are designed for treatment by patients themselves at home under doctor's guidance.


Features:
(1)Small size, light weight, convenient for patients to carry;
(2)Hand-held operation,irradiate body parts flexibly;
(3)Can be selected independently of PUVA or NB UVB treatment based on the treatment need;
(4)Simple to opertate,easy to master,more suitable to treat at home;
(5)Case management function,help the doctor to creat and search the information of the patient.
(6)Can connected to special phone APP to get more treatment suggestions free.;

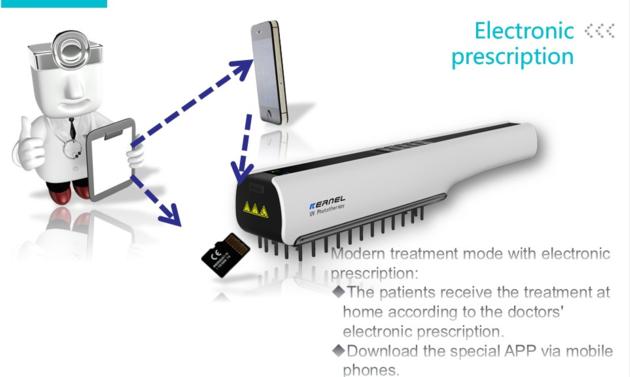

(7)Optional equipment recommendation mode, pantients can treat at home according to electronic prescriptions issued by doctors,;Can also get doctor’s prescriptions by mobile phone APP, and download to the instrument, treatment process can be controlled by mobile phones, more convenient and safe;
(8)Microcomputer timer function, easy to set up,can improve the accuracy at the same time;
(9)With remaining time prompt function, easy for the user to grasp the treatment;
(10)Use special optical materials which produced by the safety shield, to prevent the patient touching the lamp. And also can prevent dust from entering the instrument, provides more protection;

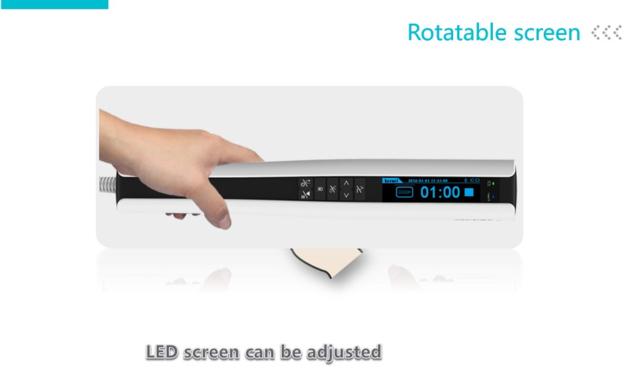

(11)Can adjust the direction of the LCD screen,according to different demand;
(12)Waterproof and dust protection, ensure the patient’s safety when using the instrument at home;
(13)Special comb is easy for the treatment of scalp parts;
(14)Use replaceable lithium-ion battery, without wire interference, more convenient to operate, working time up to 70 minutes, more energy efficient. (DC power products applicable)


Warranty:

The lamp comes with 1 year manufacturer's warranty (500 hours for bulbs)

UV Therapy Treatment Effect Pictures

How to use UV Phototherapy?

Before treatment

Before treatment: the first step, please take a bath for 15 to 20 minutes to remove skin surface scales;
The second step, patients need to determine the MED.


Treatment:

Psoriasis:
3 ~ 4 times / week, 15 ~ 20 times / treatment course.

Vitiligo:
2 ~ 3 times / week, need treatment for 30 ~ 50 times or more.

Parapsoriasis:
PUVA, UVA/UVB,NB-UVB: 4 times / week, until histology improvement.

Packing Size: 415mm×181mm×81mm（L×W×H）

Safety Classification: Ⅱ.
Working mode： Intermittent load continuous operation
Usual equipment（Classification of dustproof and water proofIP22 ）
Input power：
KN-4003AL2/BL2：AC 220V¯10%，50Hz¯2%orAC 120V¯10%，60Hz¯2%
KN-4003AL2D/BL2D：
Internal power ：DC6～8.4V >3A
Power Adapter：AC 100-240V，50/60Hz¯2%
Battery：18650 7.4V 2.2Ah
charging period：5 hours（Electricity reached 85%）
Battery life：70 mins
Input power：50VA
Structural style：hand-held
Working distance：3cm¯0.5cm
Display mode：OLED display
Timing Timer function
