Electromechanical Universal Test Machine

Electromechanical Universal Test Machine

Product Code

PRS-EU8050 Electromechanical Universal Test Machine, 50 kN, 220-240V, 50-60Hz, 1 ph.

PRS-EU8300 Electromechanical Universal Test Machine, 300 kN, 220-240V, 50-60Hz, 1 ph.

PRS-EU8050, 50 kN and PRS-EU8300, 300 kN capacity fully automatic Electromechanical ParsRos Universal Testing Machines are multi purpose versatile machines which satisfy the requirement of R&D laboratories, university laboratories, institute laboratories and quality control laboratories for tensile, compression flexural tests under load or displacement control for a wide range of materials.

PRS-EU8050 and PRS-EU8300 model Electromechanical Universal Testing Machines can be used for tensile test on any material i.e (metal, plastic, textile, wood) by using suitable accessories.

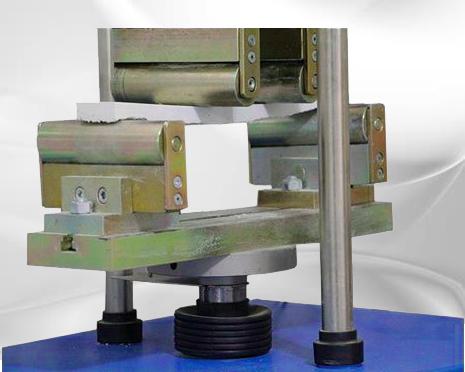

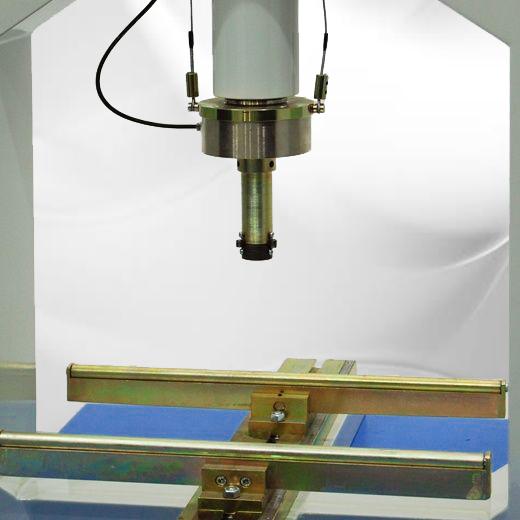

Those machines can also be used for general compression, flexural, test on steel, soil, concrete, cement, asphalt and similar materials, by using suitable accessories.

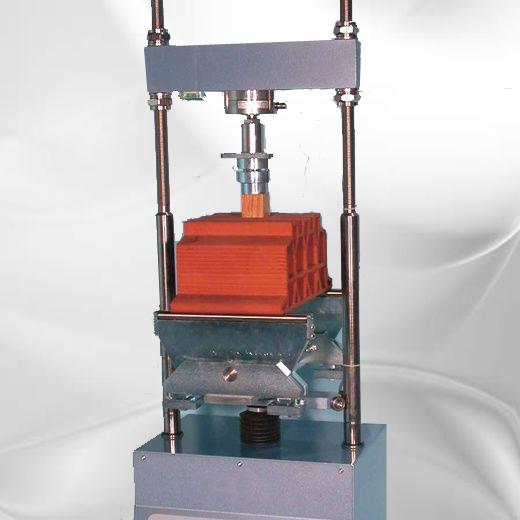

These Testing Machines consist of base containing the transmission components and holds two robust columns connected by upper cross head and digital graphics data acquisition and control system.

The upper cross head can be adjusted to set the vertical test space for different tests. User can adjust the vertical test space by also lower crosshead moved by an electromechanical system with a single recirculating ball screw, powered by an servomotor.

Advanced closed loop control system assures accurate load or displacement pace rate on sample.

The load is measured by a load cell that located on upper crosshead and displacement is measured by an encoder fit to the servo motor on both models.

The operator will have large flexibility during the test with advanced microprocessor control and material testing software installed on PC.

The machine is supplied complete with high precision load cell.

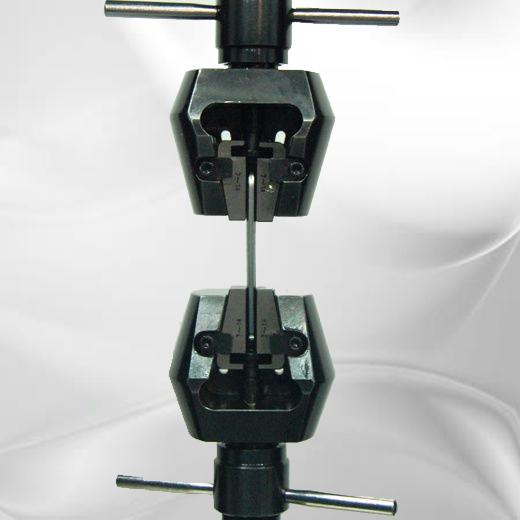

Gripping systems, extensometers and accessories are not included and have to be ordered separately.


PRS-EU8050 supplied with;

• Compression Platens
• Load Cells 50 kN Capacity

PRS-EU8300 supplied with;

• Compression Platens
• Load Cells 300 kN Capacity

ACCESSORIES
Electromechanical Universal Testing Machines are suitable for difference tests on various materials as Uniaxial Tests, Triaxial Tests, Steel Re-bars, Cement and Concrete, Soil (CBR), Asphalt (Marshall, Indirect Tensile, Duriez),
Tiles, Flat Blocks etc. General Accessories;

1. PRSGM-0040 Load Cell, 5 kN Capacity

2. PRSGM-0042 Load Cell, 50 kN Capacity

3. PRSGM-0043 Load Cell, 300 kN Capacity

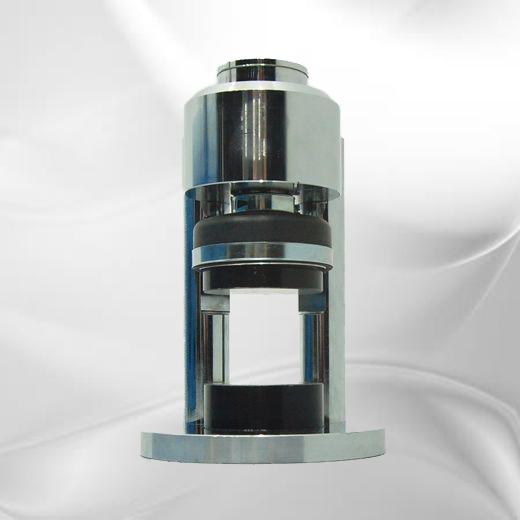

4. PRSGM-0115 Compression Platens, used to perform uniaxial and unconfined compression tests.

5. PRSM-0500 Extensometer for universal testing machine, 50 mm gauge length, 10 mm travel (to use with max Ø:22 mm specimens)

6. PRSM-0520 Extensometer for universal testing machine, 50 mm gauge length, 100% strain feature, standard temperature range: -40¬C to +100¬C (-40¬F to 212¬F).
