Electroformed Hub Dicing Blade [email protected]

Product introduction

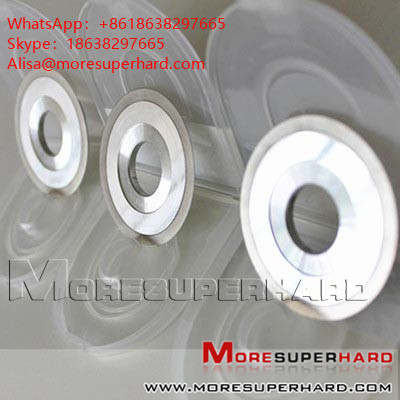

Electroformed Hub Dicing Blade Is Made By Using An Ultra-Thin Diamond Wheel And A High Precision Aluminum Alloy Hub.
Product characteristics
1:very sharp grinding
2.high grinding efficiency
3.High machining precision
4.Good shape preservation
5.Various shapes

product application

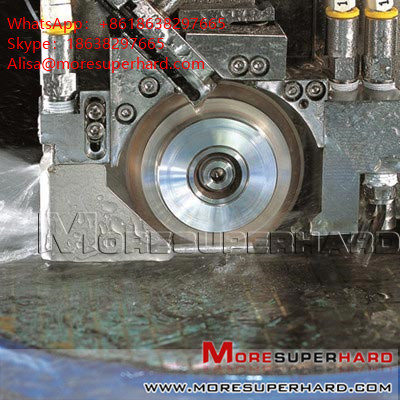

Electroformed Hub Dicing Blade Is Used For Cutting Silicon Wafers, Copper Wafer, IC/LED Packages, Compound Semiconductor Wafers (GaAs, Gap),Oxide Wafers (LiTaO3), Optical Glass

The Features Of Hub Type Dicing Blade:
1.Improving Balance Between Blade Life And Processing Quality (In Particular Backside Chipping)
3.Strengthens Rigidity, Reduction In Wavy Cutting And Blade Wear Under High Load Conditions
4.Precise Control Of Diamond Grit Size, Diamond Concentration, And Nickel Bond Hardness To Reduce Splitting On The Edges
5. Realizes High Speed Wafer Cutting After Laser Grooving.
The Specification Of Hub Type Dicing Blade:
Exposure(Μm) 380 510 640 760 890 1020 1150 1270 Grit Size
Kerf Width(Μm) 380 - 510 510 - 640 640 - 760 760 - 890 890 - 1020 1020 - 1150 1150 - 1270 1270 - 1400 #5000
#4800
#4500
#4000
#3500
#3000
#2500
#2000
#1800
#1700
#1500
16 - 20 20 * 380 20 * 510
21 - 25 25 * 380 25 * 510 25 * 640
26 - 30 30 * 380 30 * 510 30 * 640 30 * 760 30 * 890 20 * 1020
31 - 35 35 * 380 35 * 510 35 * 640 35 * 760 35 * 890 35 * 1020
36 - 40 40 * 380 40 * 510 40 * 640 40 * 760 40 * 890 40 * 1020 40 * 1150
41 - 50 50 * 380 50 * 510 50 * 640 50 * 760 50 * 890 50 * 1020 50 * 1150 50 * 1270
51 - 60 60 * 510 60 * 640 60 * 760 60 * 890 60 * 1020 60 * 1150 60 * 1270
61 - 70 70 * 640 70 * 760 70 * 890 70 * 1020 70 * 1150 70 * 1270
71 - 80 80 * 890 80 * 1020 80 * 1150 80 * 1270
81 - 90 90 * 1020 90 * 1150 90 * 1270



Advantages of electroplated diamond & CBN wheels:
1.No dressing procedure necessary,Body can be re-plated several times
2.High geometric and proportion precision,Complicated forming
3.retain their original shape and dimensions throughout their working life
4.Simple electroplated process, less investment convenient manufacturing
5.Excellent surface roughness, high grinding efficiency , long tool life
6.free-faster cutting, no dressing, less heating due to the diamond particles protruding from the surface.



Why choose our grinding wheel
Our product’s advantages:
1.High grinding efficiency
2.Wonderful edge quality
3.Long service life
4.High polishing efficiency
5.Large Exports
6.Considerable after-sell service
7.Amazing performance
8.Various types and sizes available
9.Direct Factory Manufacturer
10.Backing/substrate material: Aluminum
11.Abrasive layer: diamond
12.Bond: vitrified
13.Excellent cutting edges
14.Reduced cycle times
15.Custom Engineered
