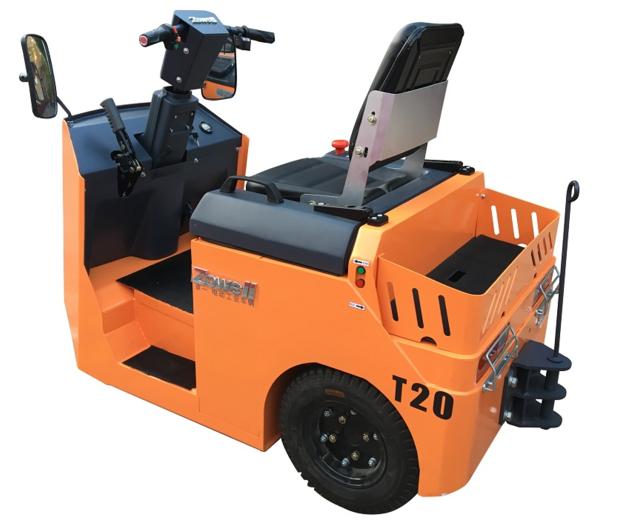

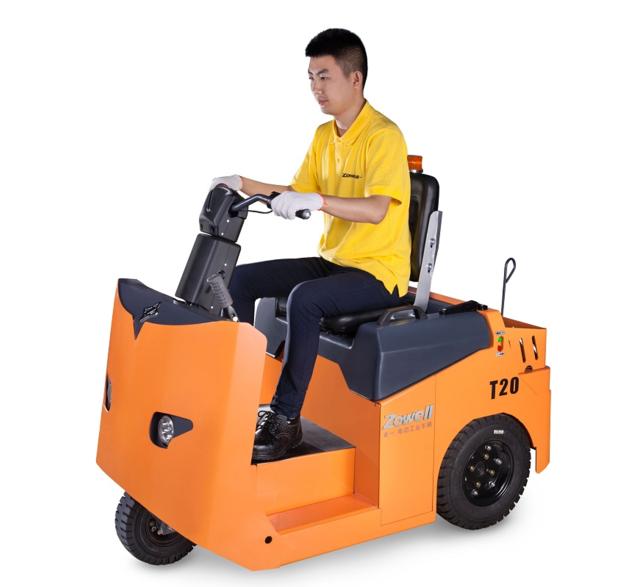

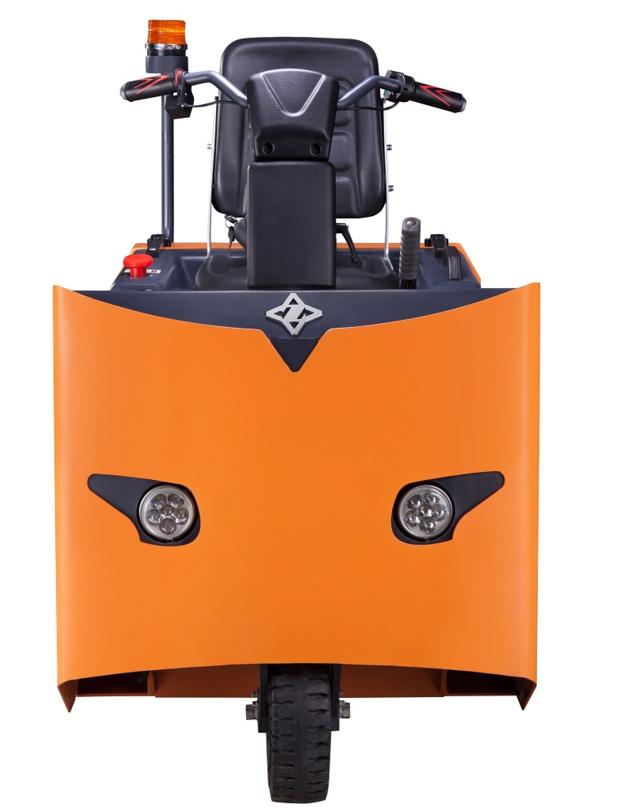

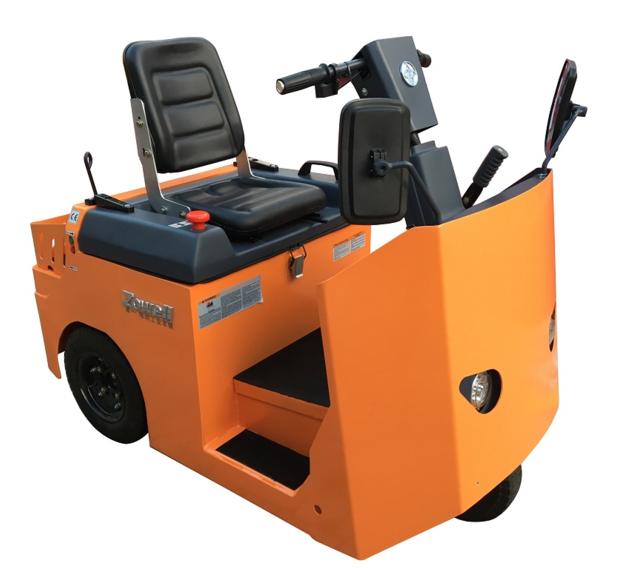

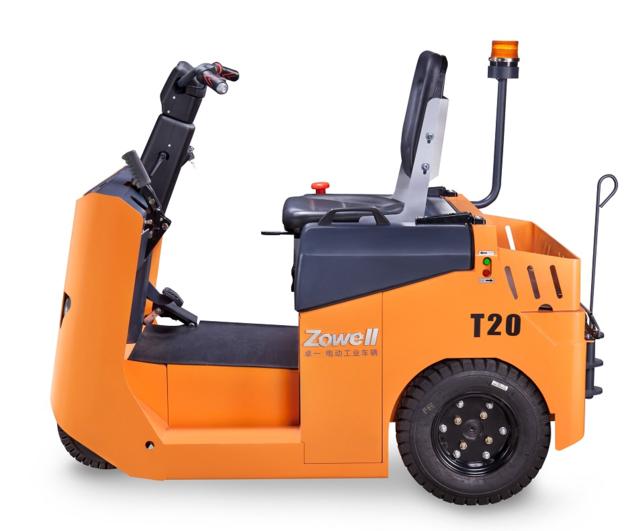

Electrical towing tractor
| Price: | US$ 4700 / Unit |
|---|---|
| Minimum Order: | 1 unit |
| Payment Terms: | T/T30% in advance, balance against B/L copy |
| Port of Export: | Shanghai |
Product Details
| Model No.: | XT20 | Brand Name: | Zowell |
|---|
| Certification: | CE/SGS/ROHS |
|---|---|
| Specification: |
1 Product Model XT20
2 Power supply Electric 3 Operating type sitting on 4 Load capacity Q t 2 5 Traction weight F N 686 6 Wheelbase Y mm 1030 1 Weight kg 584 1 Tyres PU 2 Tyre size drive end mm 3.50-5-6PR 3 Type size load end mm 4.00-8-6PR 4 Wheels number (x=drive wheel) drive end/load end 1/2x 5 Tread width drive end mm - 6 Tread width load end mm 680 1 Total height h1 mm 1330 2 Draw hook Height h2 mm 259/309/334/384 3 Overall length L mm 1645 4 Overall width W mm 800 5 Minimum ground clearance h3 mm 82.5 6 Turning radius R mm 1805 1 Travel speed loaded/unloaded km/h 8/9 2 tractive effort loaded/unloaded 60min N 686 3 Max tractive effort loaded/unloaded 5min mm/s 1783 4 Max gradeability loaded/unloaded % 5/8 5 Service brake hydraulic 1 Drive motor rating kw 2.5 3 Battery voltage / nominal capacity V/Ah 24/180 4 Battery weight kg 180 1 Type of drive control AC curtis 2 Noise level at operator’s ear dB(A) <70 |
Packaging & Delivery
| Packaging: | none/pallet |
|---|---|
| Delivery/Lead Time: | 30-60days |
| Production Capacity: | 2000unit annual |
Product Description
Basic information
Rated load: 2000 kg
Operating mode: sitting type operation
HS code: 8709111000
Certificate: CE/SGS/ISO9001
Detail features
1. Motorbike handle
The electric tugger is equipped with a motorbike style handle which is intuitive and familiar to control. The operation is easy and turning is highly flexible.
2. Comfortable seat
The wide and comfortable seat is designed to relieve the fatigue of the operators.
you can contact me through *
Suzhou Pioneer Material Handling Equipment & Technology Co., LTD was established in 2005. The factory is located in Suzhou Wuzhong district, Xujiang industrial park.Zowell is the English trademark and its Chinese trademark is pronounced zhuoyi. The company is a national high-tech enterprise which has been awarded the the title of national intellectual property superiority enterprise and it has its own Suzhou engineering technology research and development center.
Zowell company has comprehensive comply with ISO9001 quality management system, ISO14001 environmental management system, ISO45001 occupational health and safety management system.
|
