Electric pallet stacker walkie type
| Price: | US$ 1800 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Shanghai |
Product Details
| Model No.: | CDD-C | Brand Name: | RUNLI |
|---|
| Certification: | CE,ISO |
|---|---|
| Specification: |
Capacity:1200/1500 Kg
Lifting height:1600-3500 mm Specifications: Name Walkie Full Electric Stacker（24V） Model No. CDD10C-16 CDD10C-25 CDD10C-30 CDD15C-16 CDD15C-25 CDD15C-35 Load Capacity Kg 1000 1000 1000 1500 1500 1500 Max lifting height H（mm） 1600 2500 3000 1600 2500 3500 Load center C（mm） 500 500 500 500 500 500 Wheel Type Pu solid tire Fork size mm 1150X160 1150X160 Fork outer distance mm 680 680 680 680 680 680 Overall length L（mm） 1785 1785 1785 1785 1785 1785 Overall width S（mm） 800 800 800 800 800 800 Height--Mast Lowered H1（mm） 2075 1825 2075 2075 1830 2330 Maximum height when fork is lifting H2（mm） 2075 3033 3533 2075 3037 4037 Min. Fork height h1（mm） 85 85 85 85 85 85 Turning radius W（mm） 1380 1380 1380 1380 1380 1380 The front wheels to the fork end distance （mm） 430 430 430 430 430 430 wheelbase (mm) 1199 1199 1199 1199 1199 1199 Min. stacking aisle 1000*1000 pallet mm 2155 2155 2155 2155 2155 2155 Max. Walking Speed Km/h 3.5/4 3.5/4 3.5/4 3.5/4 3.5/4 3.5/4 Grade ability % 3/6 3/6 3/6 3/6 3/6 3/6 Total Weight Kg 506 546 566 596 666 700 Driving wheel mm Ø210*70 Front wheel mm Ø80*70 Balance wheel mm Ø125*50 Battery capacity V/Ah 2*12/80 Driving motor Kw 0.75 Lifting motor Kw 2.2 Walking Adjustable Type Holzer type accelerator |
Packaging & Delivery
| Packaging: | Custom |
|---|---|
| Delivery/Lead Time: | 7 work days |
| Production Capacity: | 600 units/month |
Product Description
Features:
Top quality DC driver motor
Imported Curtis controller
2*80Ah sealed battery for free maintenance
Removable fork as selected option
Left handle operation has wide view for high safety
Emergency power-off switch as standard oprtion
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift.
Q2: How about the delivery time?
A2: About 15-30 days based on different model. For the standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
Hi ,
Hope everything is going well with you.
We are a well-known electric forklift manufacturer and spare parts supplier in China.

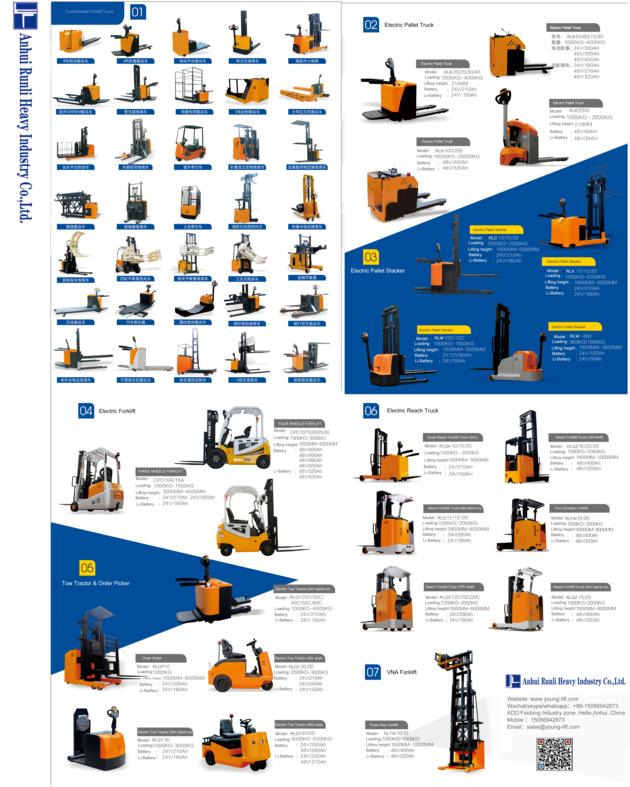

And our main products are：Counterbalanced electric forklift，VNA forklift，pallet stacker，pallet truck，reach truck，tow tractor，order picker.
You can visit our website for details： *
Please feel free to contact me if you have any questions.
Thanks & BR
|
