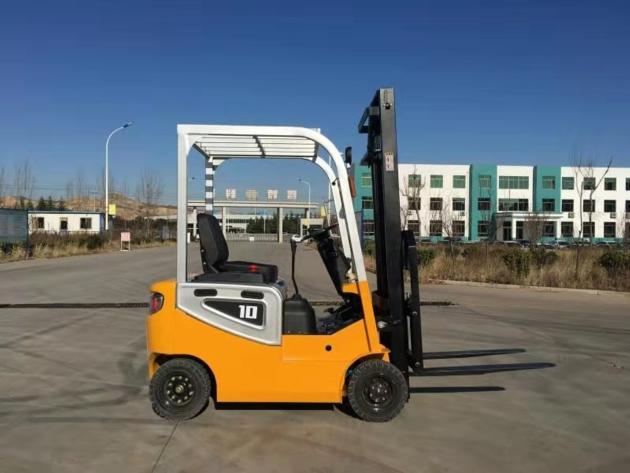

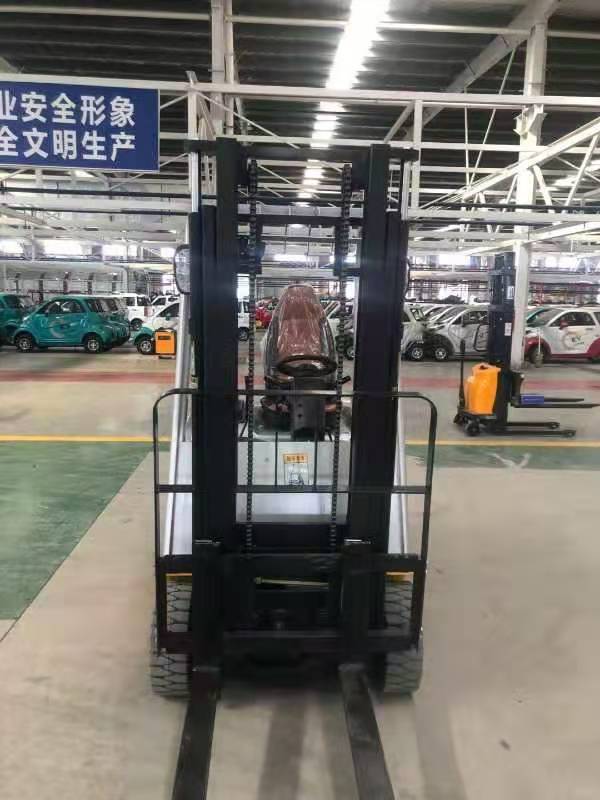

Electric forklift

Price:	US$ 5000
Minimum Order:	1
Payment Terms:	T/T
Port of Export:	Shanghai

Product Details

Model No.:	CPD	Brand Name:	RUNLI

Certification:	CE,ISO
Specification:	Electric counterbalance weight forklift (4-wheel) Feature 1.1 Model No. CPD15 CPD20 CPD25 CPD30 1.4 Power type Full-electric Full-electric Full-electric Full-electric 1.5 Operation type seated type seated type seated type seated type 1.6 Load capacity Q(t) 1500 2000 2500 3000 1.7 Load center C(mm) 500 500 500 500 1.8 Front overhang X(mm) 447 447 495 495 1.9 wheelbase Y(mm) 1450 1450 1600 1600 Total weight 2.1 Total weight(including battery) kg 2850 3260 4210 4410 Wheel 3.1 Tire type pneumatic tire solid tire solid tire solid tire 3.2 Front wheel 6.50-10 6.50-10 23X9-10 23X9-10 3.3 Rear wheel 5.00-8 5.00-8 18X7-8 18X7-8 3.4 Front wheel tread b10(mm) 910 910 970 970 3.5 Rear wheel tread b11(mm) 930 930 950 950 Size 4.1 Height-mast lowered h1(mm) 2095 2095 2095 2095 4.2 Free-lifting height h2(mm) 80 80 80 80 4.3 Lifting height h3(mm) 3000 3000 3000 3000 4.4 Fork height when fork lifting h4(mm) 4110 4110 4110 4110 4.5 Overhead guards height h14(mm) 2190 2190 2185 2185 4.6 Fork height when mast retracts h13(mm) 40 40 45 45 4.7 Tilt angle (front/rear) ® 6/10 6/10 6/12 6/12 4.9 Overall length l2(mm) 2330 2330 2529 2529 4.10 Overall width b1(mm) 1105 1105 1160 1160 4.11 Fork size s/e/l(mm) 35/100/1070 40/122/1070 40/122/1070 45/125/1070 4.12 Fork adjustment size b5(mm) 244-1042 244-1042 244-1020 244-1020 4.13 Min ground clearence m2(mm) 130 130 130 130 4.14 Stacking channel width,1000×1200 pallet(1200 span fork placement) Ast(mm) 4429 4429 4686 4286 4.15 Stacking channel width,1000×1200 pallet(1000 placed along fork) Ast(mm) 4511 4511 4511 4511 4.16 Turning radius Wa(mm) 2090 2090 2200 2200 Performance 5.1 Travel speed, no load / full load km/h 12/11 12/11 12/11 12/11 5.2 Lifting speed, no load / full load m/s 0.205/0.221 0.196/0.214 0.210/0.215 0.193/0.212 5.3 Descent speed, no load / full load m/s 0.350/0.260 0.365/0.240 0.365/0.240 0.365/0.240 5.8 Max.grade capacity, no load / full load % 20/15 20/15 20/12 20/12 5.1 Brake hydraulic hydraulic hydraulic hydraulic Motor 6.1 Drive motor kw 8 8 11 11 6.2 Lifting motor kw 8.6 8.6 12 12 6.3 Battery type Lead acid Lead acid Lead acid Lead acid 6.4 Battery capacity V/Ah 48V400Ah 48V450Ah 48V480Ah 48V550Ah Other 8.1 Drive controlling type AC AC AC AC 8.4 Driver's ear noise level according to en12053 dB(A) 75 75 75 75

Certification:

CE,ISO

Specification:

Electric counterbalance weight forklift (4-wheel)
Feature 1.1 Model No. CPD15 CPD20 CPD25 CPD30
1.4 Power type Full-electric Full-electric Full-electric Full-electric
1.5 Operation type seated type seated type seated type seated type
1.6 Load capacity Q(t) 1500 2000 2500 3000
1.7 Load center C(mm) 500 500 500 500
1.8 Front overhang X(mm) 447 447 495 495
1.9 wheelbase Y(mm) 1450 1450 1600 1600
Total weight 2.1 Total weight(including battery) kg 2850 3260 4210 4410
Wheel 3.1 Tire type pneumatic tire solid tire solid tire solid tire
3.2 Front wheel 6.50-10 6.50-10 23X9-10 23X9-10
3.3 Rear wheel 5.00-8 5.00-8 18X7-8 18X7-8
3.4 Front wheel tread b10(mm) 910 910 970 970
3.5 Rear wheel tread b11(mm) 930 930 950 950
Size 4.1 Height-mast lowered h1(mm) 2095 2095 2095 2095
4.2 Free-lifting height h2(mm) 80 80 80 80
4.3 Lifting height h3(mm) 3000 3000 3000 3000
4.4 Fork height when fork lifting h4(mm) 4110 4110 4110 4110
4.5 Overhead guards height h14(mm) 2190 2190 2185 2185
4.6 Fork height when mast retracts h13(mm) 40 40 45 45
4.7 Tilt angle (front/rear) ® 6/10 6/10 6/12 6/12
4.9 Overall length l2(mm) 2330 2330 2529 2529
4.10 Overall width b1(mm) 1105 1105 1160 1160
4.11 Fork size s/e/l(mm) 35/100/1070 40/122/1070 40/122/1070 45/125/1070
4.12 Fork adjustment size b5(mm) 244-1042 244-1042 244-1020 244-1020
4.13 Min ground clearence m2(mm) 130 130 130 130
4.14 Stacking channel width,1000×1200 pallet(1200 span fork placement) Ast(mm) 4429 4429 4686 4286
4.15 Stacking channel width,1000×1200 pallet(1000 placed along fork) Ast(mm) 4511 4511 4511 4511
4.16 Turning radius Wa(mm) 2090 2090 2200 2200
Performance 5.1 Travel speed, no load / full load km/h 12/11 12/11 12/11 12/11
5.2 Lifting speed, no load / full load m/s 0.205/0.221 0.196/0.214 0.210/0.215 0.193/0.212
5.3 Descent speed, no load / full load m/s 0.350/0.260 0.365/0.240 0.365/0.240 0.365/0.240
5.8 Max.grade capacity, no load / full load % 20/15 20/15 20/12 20/12
5.1 Brake hydraulic hydraulic hydraulic hydraulic
Motor 6.1 Drive motor kw 8 8 11 11
6.2 Lifting motor kw 8.6 8.6 12 12
6.3 Battery type Lead acid Lead acid Lead acid Lead acid
6.4 Battery capacity V/Ah 48V400Ah 48V450Ah 48V480Ah 48V550Ah
Other 8.1 Drive controlling type AC AC AC AC
8.4 Driver's ear noise level according to en12053 dB(A) 75 75 75 75

Packaging & Delivery

Packaging:	Custom
Delivery/Lead Time:	15 work days
Production Capacity:	500 units/month

Product Description

Features:

1. Drive motor,controller and pump structure are well organized.Easy for maintenance.

2. Imported Curtis controller ensuring better performance and less maintenance.

3.Vertical drive motor without brush is for easy maintenance;

4. Electric power steering (EPS) improve work efficiency.

5.Imported ZF gearbox for better performance and longer service lifer.

6. Ergonomic design seat and smooth operation control levels offer comfortable driing experience.

7.Wide-view mast with dual cylinder lift for more stable lifting and protection.

8.Curtis hour meter

9.Side-removable battery&side shifter as selected option.
