Electric coaster mini bus, 8.06m long, 250km per full charge, local assembly service available

Price: US$ 79999 / Unit
Minimum Order: 1
Payment Terms: TT
Port of Export: Chongqing
Product Details
Model No.: BIGST-6810ZEV-1 Brand Name: BIGST, ZEV or Customized
Certification:
Specification: Key Specifications/Special Features:
Size parameter:
Length/width/height (mm): 8060*2160*2630/2860(with A/C)
Gross weight/curb weight (kg): 9000/6000
Wheelbase (mm): 4500
Front/rear overhang (mm): 1180/2380
Approach/departure angle (®): 17/9
Wheel track (front/rear) (mm): 1830/1610
Driving range (km): 250
Max. speed (kmh): 100
Rated passenger(persons): 24-31
Driving motor parameter
Driving model: central rear drive
Driving motor model: DZ65M01-1WRV permanent magnet synchronous water cooling motor
Max power (kW): 130
Max torque (N.m): 1700
Max rotating speed (rpm): 2600
Motor/controller parameter
Model: NPE600R12 with energy retrieving function
Rated output current (Ah): 170
Rated output voltage (V): 380
Battery parameter
Battery type: LiFePO4
Capacity (kWh): 93.8
Rated voltage (V): 512 DC
Battery management system can monitor the temperature, voltage, current, power of each monomer, and with the warning function
Charging infrastructure DC charger
Chassis parameter
Chassis type: CDL6760CREV
Front axle: DANA 3000010-FF30
Rear axle: DANA; 2400010-FF55 ratio 4.88
Steering system: integral power steering, electro-hydraulic power steering
Braking system: drum brake, spring actuated air-cut parking brake, ABS
Suspension system: leaf spring, front 3/ rear 4
Cooling system: water cooling, one aluminum water tank
Tyre: 215/75R17.5
Functional configuration parameter
Body material: skeleton is made of special steel, after cleaning, derusting, phosphating treatment
Skin is made of galvanized steel, roller forming stretching skin
Roof and side skin interlining fully populated with flame retardant foam materials
Painting: China-made painting
Electric harness can line is fir-retarded wire harness, waterproof connectors, 2 pieces of 100AH maintenance-free batteries, manual power master switch and magnetic switch
Interior modeling roof, PVC composite side board, injection molding window pillar with curtain.
Packaging & Delivery
Packaging: FCL
Delivery/Lead Time: 30-45working days
Production Capacity: 50-100 monthly
Product Description

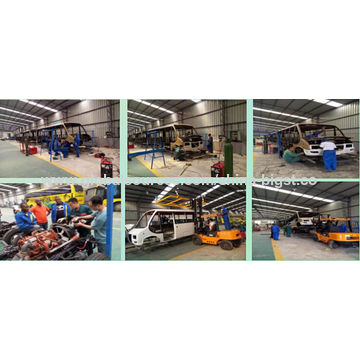

Bus assembly in local is optional if you are interested:

1. How much is the customs duty rate for the importation of complete bus (CBU/FBU) and how much is the customs duty for the importation of the buses in knocked down kits? (CKD)

If the difference of the customs duty rate between CBU and CKD is more than 30%, then there is a chance or profit margin for you to start the assembly project of the bus in your local place, it is the basic and also the most important condition

2. Second factor of starting the bus assembly project in local, it requires large investment, because one bus is pretty much expensive, except the mini bus, so how to make this possible? To find orders from your government, it is better to have orders from your local authorities, then you don't need to worry about the sales and the working capital;

Of course, you must have much enough your own money to start the project, otherwise, you will not be trusted

3. With the above two, you can start the project from step by step now: order some buses as sample to your local place for exhibition and advertisement, if there is bidding in your country, it will be much useful, all persons related will see the buses you have, to get the model fixed that is available for assembly in local, then, both parties, you can us, getting into such a research with discussion, and reach to an agreement on the assembly of such bus, after that we will make the design, budget, plan, all are involved for this project

4. For more and further detailed information, please contact us freely by sending us inquiry through this website or contact us directly with email: chinabigst4 (at) hotmail (dot) com, thank you.

Electric coaster mini bus, 8.06m long, 250km per full charge, local assembly service available.
