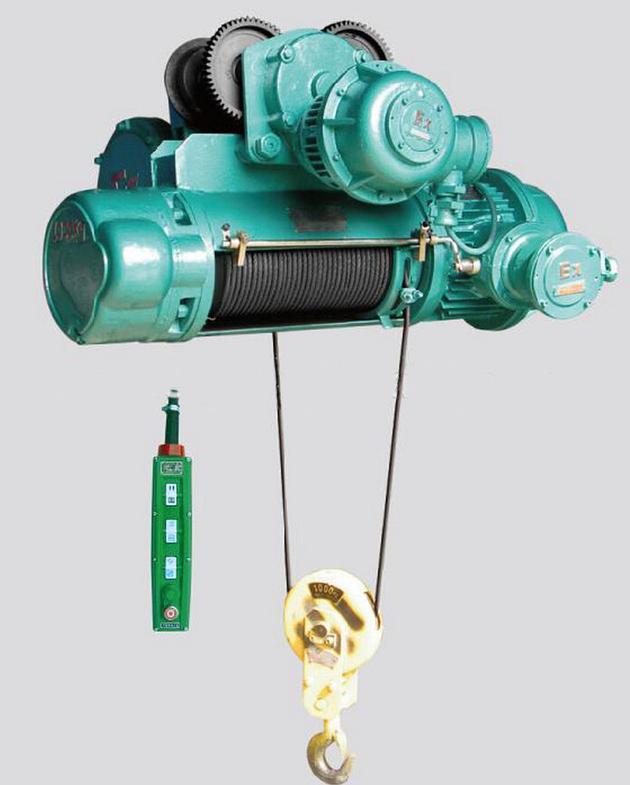

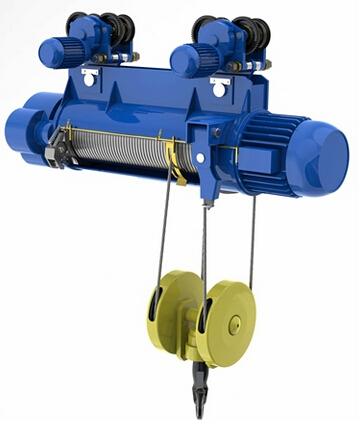

Electric Wire Rope Hoist/lifting crane

Introduction of electric wire rope hoist,lifting crane:
1. CD1 and MD1 series of steel-rope electric hoist are improved ones on the basis of the original CD and MD .
2. Tight structure ,smart body,safety and reliability ,commom-used parts,strong lifting capacity, easy maintance.
3. The hoists exists in form of stationary style and crab-style
4. The products are widely at industrial ore enterprises ,railway,harbors,warehouses and materials sites etc.
5. Working environment:no fire,no explosive danger ,no corrosive media and no dirt exist
6. Working temperature:-25®C~+40®C ,Wetness is less than 85%
7. 380v/50Hz/3
8. Mainly consists 3 parts:lifting mechanism ,traveling mechanism and electrical equipment
9.With slight modification, it also can be use as a which.
10.Electric wire rope Hoist is assembled by several parts:
Motor: Hoist Motor is a taper type rotor motor with braking, it is made by Nanjing special motor factory, it is of the best quality motors, it has bigger torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.
Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.
Wire Rope: Hoisting ropes comply with the exporting standards. The leading rope taken by the Drum does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.
Rope Drum: Grooved hoist Drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.
Electric apparatus controlling system: Model CD1 and MD1 hoist is composed of the contactor box, controlling switch, cut-off limiter, the working voltage of controlling switch is 380V, 36V or 24V(safety voltage).
Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thickened and dilated, so that it is not easy to be damaged.
Hook: The Hook Block is tested to 150 % of full load before assembly.
