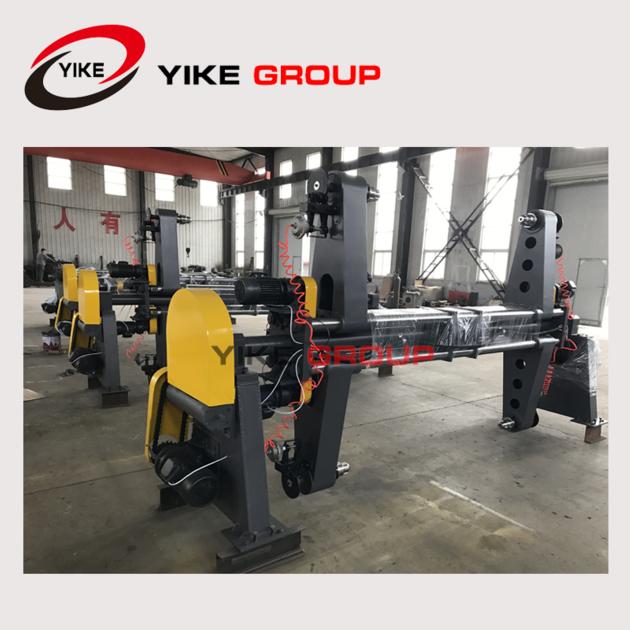

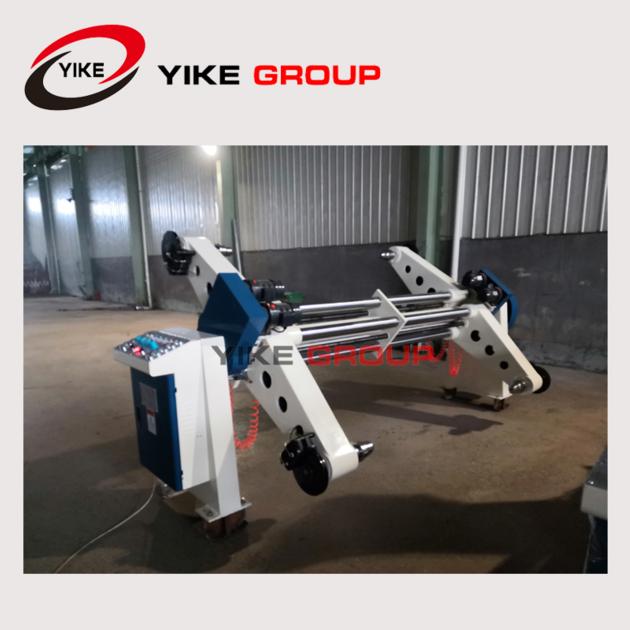

Electric Mill Roll Stand
| Price: | US$ 10000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT |
| Port of Export: | Tianjin |
Product Details
| Model No.: | Brand Name: | YIKE GROUP |
|---|
| Certification: | |
|---|---|
| Specification: |
Mainly purchased parts, raw materials and origin：
Name of main parts Brands or place of origin material motor Hebei Hengshui reducer Shandong Dezhou Jin bu huan contacts Chint or De li xi chuck Xusheng 3 inches, 4 inches shared wallboard Production own HT200 |
Packaging & Delivery
| Packaging: | plastic package |
|---|---|
| Delivery/Lead Time: | 30days |
| Production Capacity: | 50sets per month |
Product Description
Structural features：
1.Symmetrical structure can also install two bundles of paper at the same time，Paper can be used for non-stop for a job；Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
2. each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car；paper guide the use of channel 14 and the guide post weld，paper car adopt 10mmwelded stell，the length of track is 4500mm。
3. manual dics brake，add screw following
4. electric elements centralized control the electric elements，expand chuck。
technical parameters：
1.Backstands action mode：mechanical electric operation
2.The range of paper jams：maximum：1800mm minimum：600mm
3.The diameter of paper jams：maximum：￠1400mm minimum：￠400mm
4.Unilateral maximum load：maximum2000Kg
5.Powered motor parameters：
A: Paper jams motor550W×4set 380V 50HZ short（S2）working standard
B: lift motor 1.5Kw 380V 50HZ short（S2）working standard
|
