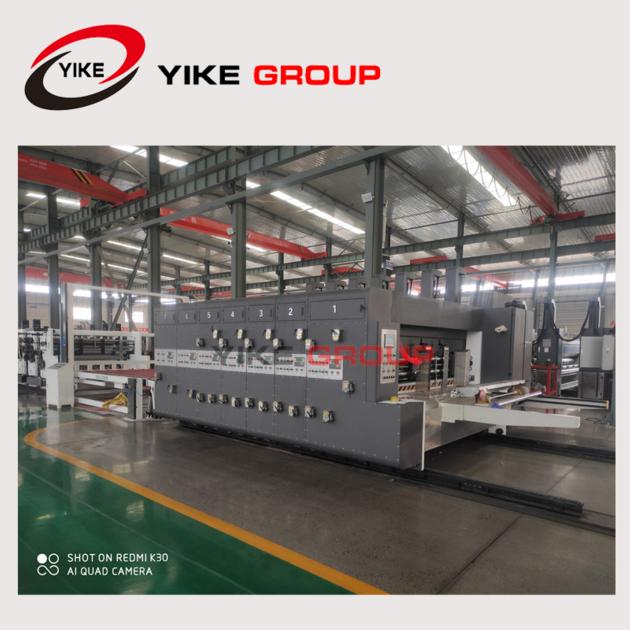

Economic Type Flexo Printer Slotter Die Cutter Machine
| Price: | US$ 100 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT |
| Port of Export: | Tianjin |
Product Details
| Model No.: | Brand Name: | YIKE GROUP |
|---|
| Certification: | |
|---|---|
| Specification: |
Specification
YX-1420 ECONOMIC LEAD EDGE FEEDER PRINTER SLOTTER DIE CUTTER MACHINE Wall board thickness 50mm Max Machine Speed (pcs/min) 120 Economic Working Speed (pcs/min) 80 Max. Feeding Size (mm) 1400×2000 Min. Feeding Size (mm) 450x660 Standard Plate Thickness (mm) 3.9 Max slotter depth (mm) 300 Print precision (mm) ¬0.3 Slot precision (mm) ¬1.0 Die cut precision (mm) ¬1.0 Suitable Cardboard Thickness (mm) 2 - 11 |
Packaging & Delivery
| Packaging: | plastic package |
|---|---|
| Delivery/Lead Time: | 30days |
| Production Capacity: | 50sets per month |
Product Description
Main features
Printer slotter phase :electric number digital adjust
Auto ink circulation system
Combined slotting creasing slitting knives which is easy to change order.
The gear of the machine: Auto lubrication with oil
Machine body thickness:50mm
Automatic seperated, pneumatic lock up.
Product Description
Main features
● Printer slotter phase :electric number digital adjust
● Auto ink circulation system
● Combined slotting creasing slitting knives which is easy to change order.
● The gear of the machine: Auto lubrication with oil
● Machine body thickness:50mm
● Automatic seperated, pneumatic lock up.

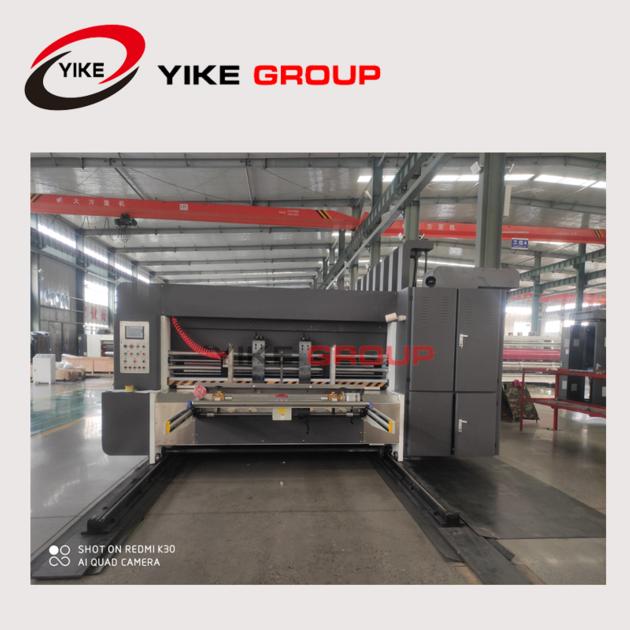

※ LEAD EDGE FEEDER UINT
1. Automatic suction lead edge feeder equipped with a 7.5kw suction fan to feeding cardboard, the blowing rate is adjustable by the transducer according to the degree of crook of cardboard in order to transmit cardboard smoothly.
2. The main control pannel is composed of control buttons and touch screen, which is very convenient and reliable.
3. The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
4. The side plate is electrical adjusted automatically while the backstop is adjusted manually.
5. Sheet cleaner is equipped to remove the contaminants on the cardboard which will improves the printing quality.
|
