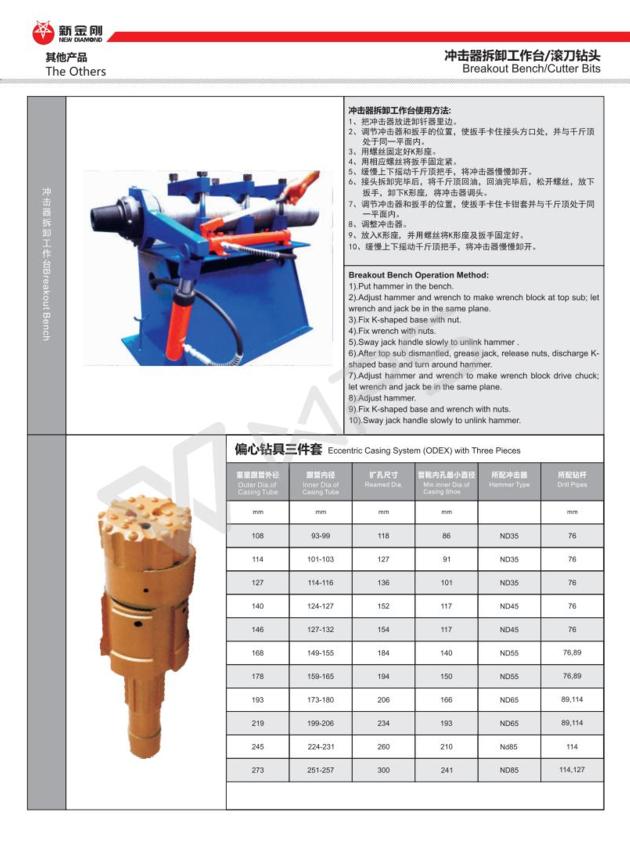

Eccentric /Symmetric Overburden Drilling Equipment/Eccentric Casing System(ODEX) with Three Pieces
| Price: | US$ 3800 |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | T/T |
| Port of Export: | Shanghai |
Product Details
| Model No.: | NOD90,NOD115,NOD140,NOD190,NOD240,NOD280 | Brand Name: | New Diamond |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
Bit face shape selection:
1. Drop Center Bit For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control. 2. Concave Face The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity. 3. Convex Face For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control. 4. Double Gauge Face This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit. 5. Flat Face Bit This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash. Carbide button shape selection: 1. Domed/Round Button 2. Parabolic/Semi-Ballistic Buttons 3. Ballistic Button 4. Sharp Button 5. Flat Button |
Packaging & Delivery
| Packaging: | Inner package with cartons,outer package with wooden case |
|---|---|
| Delivery/Lead Time: | 3 weeks |
| Production Capacity: | 1000 pcs/month |
Product Description
1. 10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide
Eccentric Reamer System Step-by-step
1. When drilling starts, the reamer swings out and reams the pilot-hole wide enough for the casing tube to slide down behind the drill bit assembly.
2.When the required depth is reached, rotation is reversed carefully, whereupon the reamer swings in , allowing the drill bit assembly to be pulled up through the casing.
3. Casing tubes that are to be left in the drill hole should be sealed at the bottom of the hole by means of cement grout or some other sealing agent.
4. Drilling continues to the desired depth in the bedrock using a conventional drill string.
|

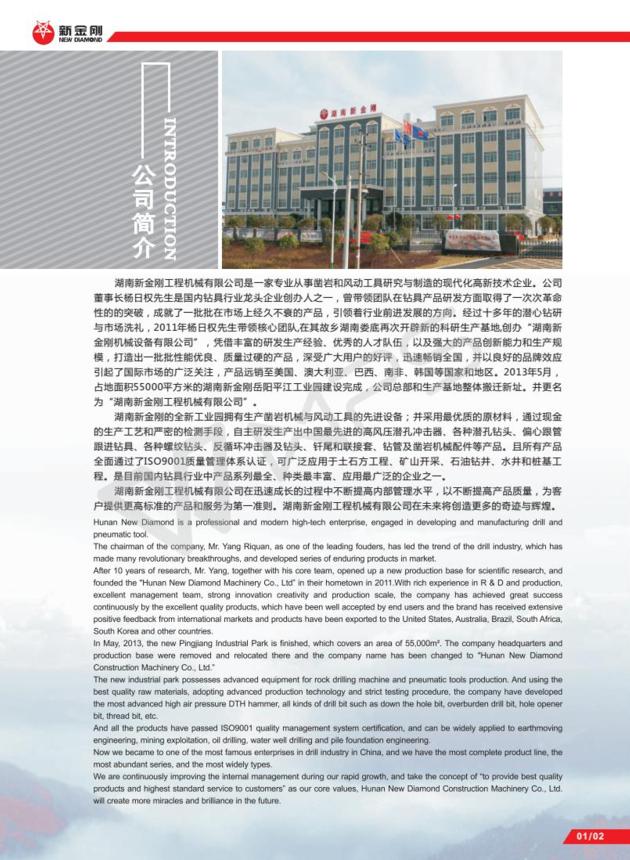

SUPPLIER PROFILE
|
|||
|---|---|---|---|
