Easily To Be Moved Operation Aluminum And Copper Busbar Machine

Product Description

\Main features of busbar processing machine:

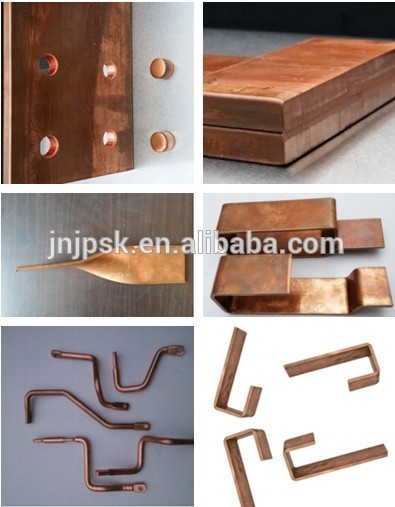

1. The cut surface is smooth and neat, no droop, no burrs, no waste

2. Rotary turret punch unit installed 6 dies, less replacing, high efficiency

3. Easily to be moved with four castors

4. Closed structure to make sure the flat bending and embossing more smooth,which highly improves the repeating precision during mass production and prolong the working time.

5. Allow that three working positions can do their only operation at same time without bothering the others.

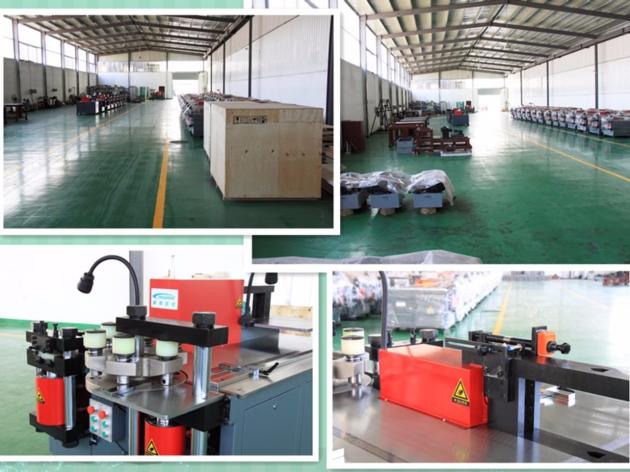

Detailed Images



Technical parameters:

Function Item Model
JPMX-303DM
Punching Max. Punching Force (KN) 300
Punching Diameter Range (MM) 4.3-25
Max. Thickness (MM) 12
Max. Width (MM) 150
Shearing/Cutting Max. Shearing Thickness (MM) 12
Max. Shearing Width (MM) 150
Honrizental Bending Max. Bending Force (KN) 300
Max. Width (MM) 150
Max. Thickness (MM) 12
Vertical Bending Max. Width (MM) 100(10mm THK)
Max. Angle (Degree) 90®
Out Dimension MM 1500*1300*1200
Power KW 3*4KW
Weight KG 1250

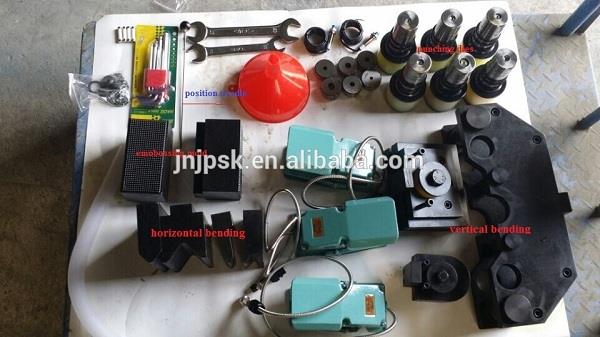

Accessories of busbar processing machine:

punching die, foot switch,

flat bending die , inner hexagon spanner

vertical bending die, oil filler

hydraulic system sealing ring punching location needle

U type bending die limit switch
