Cable Gland

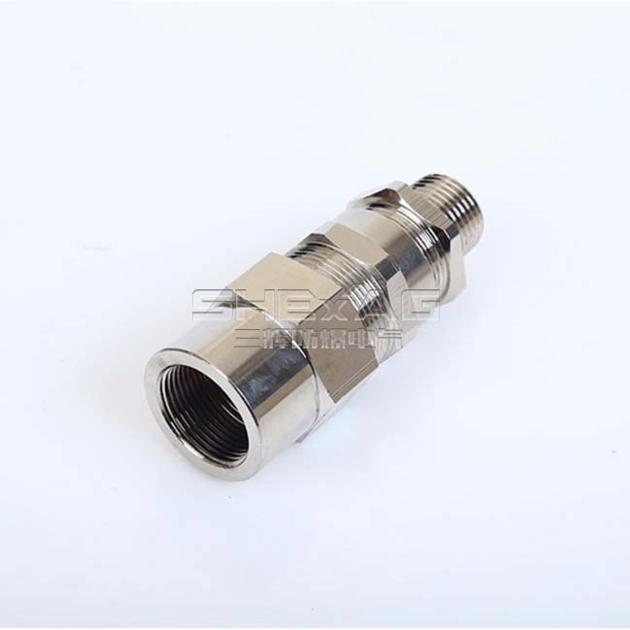

SHBDM-24 Parameters and shape
Made of brass or stainless steel, mechanical cable clamping device for armored cable clamping, double compression.
 Specifications（D1）  Cable diameter(Φ)   Thread length    Length   Max diameter Standard thread(D2) Armored layer thickness h(mm)
Armored cable diameter (outlet) Cable diameter (inlet) (Metric)  (G)
Standard Optional(K)
M20*1.5A G1/2”A 4-8 -- 5.5-12 15 89 30 M20*1.5 G1/2” 0.3-1.0
M20*1.5B G1/2”B 6.5-10.5 -- 9.5-16 15 89 30 M20*1.5 G1/2” 0.3-1.0
M20*1.5C G1/2”C 10-14.5 6-12 12.5-20.5 15 91 30 M25*1.5 G/4” 0.3-1.0
M25*1.5B G3/4”B 10-14.5 6-12 12.5-20.5 15 91 37 M25*1.5 G3/4” 0.3-1.0
M25*1.5C G3/4”C 12.9-19.5 9-15 17-26 15 98 37 M32*1.5 G1” 0.4-1.2
M32*1.5B G1”B 12.5-19.5 9-15 17-26 19 106 45 M32*1.5 G1” 0.4-1.2
M32*1.5C G1”C 19-25.5 14-22 22-33 19 114 45 M40*1.5 G1 1/4” 0.4-1.4
M40*1.5B G1 1/4”B 19-25.5 14-22 22-33 19 114 55 M40*1.5 G1 1/4” 0.6-1.9
M40*1.5C G1 1/4”C 25-31 19-28 28-41 19 121 55 M50*1.5 G1 1/2” 0.6-2.2
M50*1.5B G1 1/2”B 25-31 19-28 28-41 19 121 65 M5*1.5 G1 1/2” 0.8-2.3
M50*1.5C G1 1/2”C 31.5-37 26-33 36-52.5 19 129 65 M63*1.5 G2” 0.8-2.3
M63*1.5B G2”B 31.5-37 26-33 36-52.5 19 129 77 M63*1.5 G2” 0.9-2.4
M63*1.5C G2”C 42.5-49 39-46 46-65 19 150 82 M75*1.5 G2 1/2” 0.9-2.4
M75*1.5B G2 1/2”B 42.5-55 39-46 46-65 19 150 93 M75*1.5 G2 1/2” 0.9-2.4
M75*1.5C G2 1/2”C 54.5-64 40-58 57-78 19 157 110 M90*2 G3” 0.9-2.4
M90*1.5 G3” 63-75 68-88 19 159 121 M115*2 G4” 0.9-2.6
M115*1.5 G4” 75-90 83-103 19 164 137 M125*2 G4 1/2” 0.9-2.6
Noted: With optional armored cable diameter sealing(K), if needed, please indicate.
The list thread is as a sample, NPT thread can also be customization. And if need stainless steel materials, please specify.
