ETL-35 Substation equipment test van
| Price: | US$ 1 / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | PIA - Payment in advance |
| Port of Export: |
Product Details
| Model No.: | ETL-35 | Brand Name: | KharkovEnergoPribor Ltd. |
|---|
| Certification: | |
|---|---|
| Specification: |

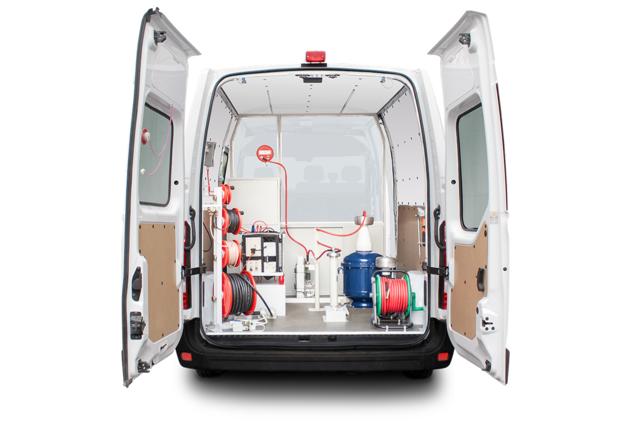

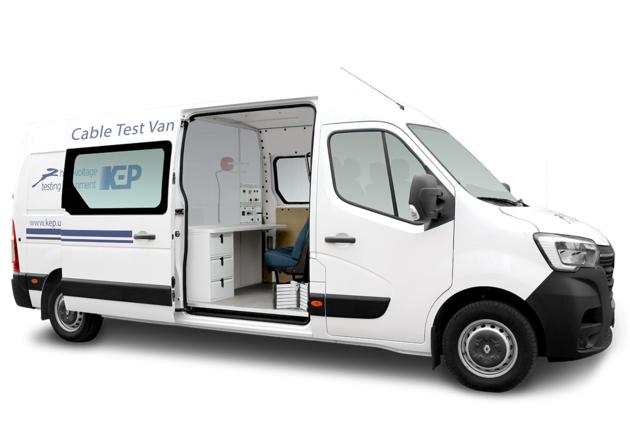

ETL-35 is a van-mounted system designed for testing electrical substation equipment.
Apart from insulation withstand testing with DC (rectified) voltage up to 60 kV and ability to measure very small leakage currents, the system can be used for testing various substation objects with small electrical capacitance with AC voltage of up to 100 kV and measuring dielectric dissipation factor (Tan Delta) at industrial frequency. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
AC & DC TESTING
Van-based substation test system ETL-35 allows to carry out withstand testing of insulation with DC (rectified) high voltage up to 60 kV and testing other electrical objects with AC voltage up to 100 kV at industrial frequency (f = 50 Hz).
MEASURING LEAKAGE CURRENT OF SURGE ARRESTERS
A microammeter included with the system allows testing surge arresters with DC (rectified) voltage up to 60 kV and measuring the leakage current with up to 0.01 mA significance.
DIELECTRIC DISSIPATION FACTOR MEASUREMENT
ETL-35 system can be equipped with an optional Tan Delta module for accurate measurement of capacitance and the dielectric dissipation factor at up to 10 kV voltage of industrial frequency.
Tan Delta measurement using cable test vans is most often used to assess the transformer insulators on the electrical substations.
|
