ER32 5/8" Ultra Precision ER Spring Collet for CNC machine
| Price: | US$ 4.8 |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T |
| Port of Export: | QingDao |
Product Details
| Model No.: | ER32 | Brand Name: | ChongDe |
|---|
| Certification: | ISO9001:2018 |
|---|---|
| Specification: |
ER32 Spring Collet

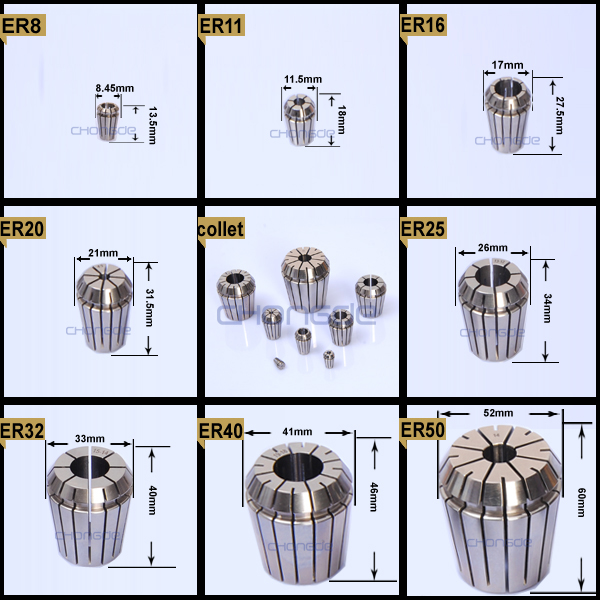

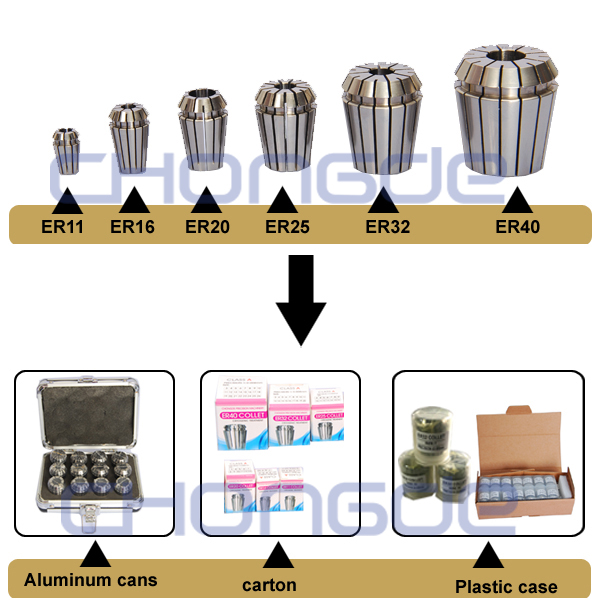

1) Runout of our ER collet are within 0.005mm-0.008mmm. 2) ER8, ER11, ER16, ER20, ER25, ER32, ER40 and ER50 collet. 3) Made of high quality steel: JIS-SUJ2. 4) Packing:Inner packing is plastic or paper box, the outer packing is cartons. 5) We normally supply three kinds of accuracy: first accuracy 0.005mm, and second accuracy 0.008mm. The highest accuracy is 0.005mm. 6) Inspection: 100% collet inspection. |
Packaging & Delivery
| Packaging: | neutral packing |
|---|---|
| Delivery/Lead Time: | 7-24Days |
| Production Capacity: | 20000pieces/month |
Product Description
Chongde ER32-5/8" Precision Spring Collet Runout is 0.0003"
Condition Brand-New
Brand chongde
SKU CD010201-32048
Collet Series ER32
Collet Grip Range 0.625"-0.585"
Size 5/8"
Diameter(D1) 1.299"
Overall Length (L) 1.575"
Runout ≤0.0003"
Dimensions 1.5" x 1.5" x 1.9"
Net Weight 0.19 LB
Gross Weight 0.24 LB

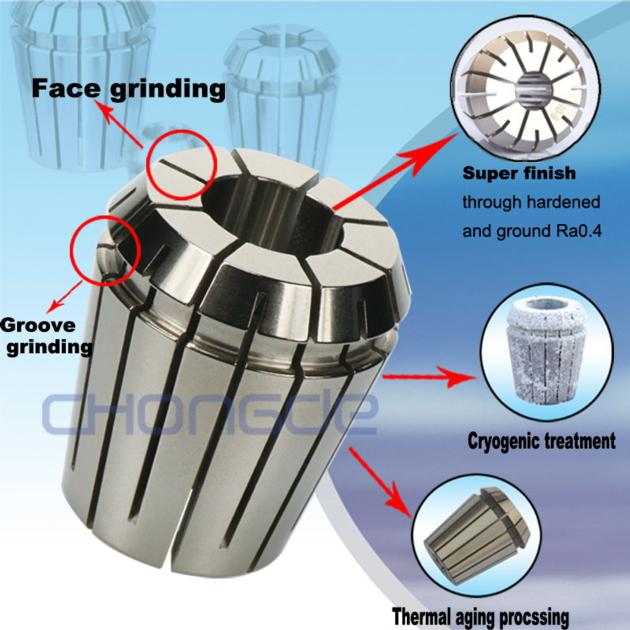

A new process quenching treatment for collets, which has a decisive influence on product accuracy, service life and stability.
Quenching is a high-frequency aging treatment added to the heat treatment, -384.8℉ degrees cryogenic treatment, these are not reflected in the appearance, but have a decisive impact on the service life and stability of the product.
Processing technology, full-line CNC internal hole grinding machine, compared with the products processed by ordinary internal hole grinding machine, the inner hole straightness is better, the finish is better.

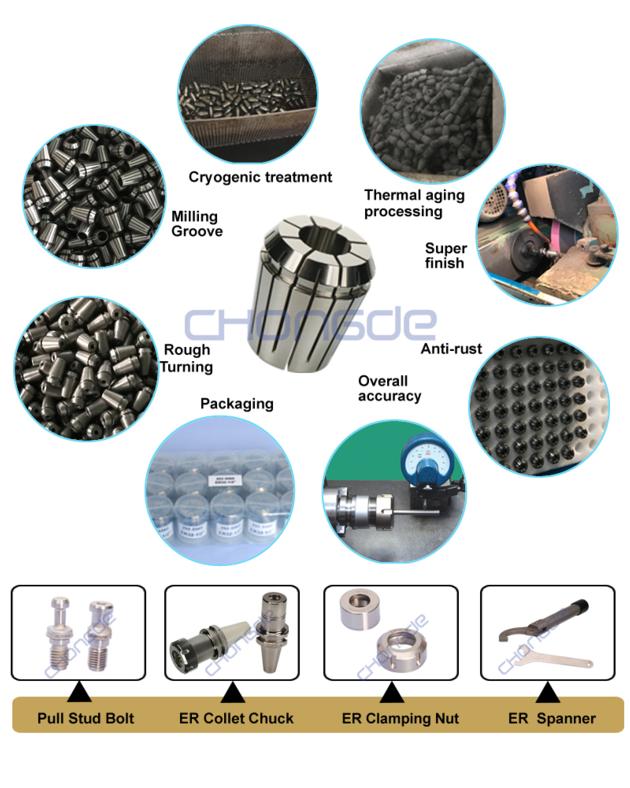

Cryogenic treatment
1) -196℃, and ultra long cryogenic treatment make the nearly all retained austenite change to martensite.
2) The precipitated nano carbide particles increase the hardness and toughness of the material.
3) Remove the internal stress of the residual material.
4) After cryogenic treatment , the wear resistance of products is significantly improved, and the accuracy and service life of repeat clamping can be increased by about 50%.
|
