EPDM Twin Sphere Flex Rubber Flexible Joint
| Price: | US$ 5~2000 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | EH-20 | Brand Name: | Ehase-Flex |
|---|
| Certification: | ISO |
|---|---|
| Specification: |
Specification Dia L Movement Operating Conditions Axial Compress Axial Extension Transver Se Disp. Angular Disp Max. Pressur (kg/cm2) Max. Temp (mm) (in) (mm) (mm) (mm) (mm) (õ) EH-10 EH-10H ℃ 25 1 120 50 30 35 40 10 16 60 32 1 1/4 175 50 30 35 10 16 40 1 1/2 175 50 30 35 10 16 50 2 175 50 30 35 10 16 65 2 1/2 175 50 30 35 10 16 80 3 175 50 30 35 10 16 100 4 225 57 35 40 10 16 125 5 225 57 35 40 10 16 150 6 225 57 35 40 10 16 200 8 325 63 35 45 10 16 250 10 325 63 35 45 10 16 300 12 325 63 35 45 10 16 350 14 350 40 30 30 10 16 400 16 350 40 30 30 10 16 450 18 350 40 30 30 10 16 500 20 350 40 30 30 10 16 600 24 350 40 30 30 10 16 *Specification stated above are standard. We can design and manufacture according to customer's requirement. *Flange standard: JIS, ANSI, DIN, B.S., JB, etc |
Packaging & Delivery
| Packaging: | Carton Box, Pallet, or Plywood Case |
|---|---|
| Delivery/Lead Time: | 20 Working Days |
| Production Capacity: | 10000 Piece/Pieces per Month |

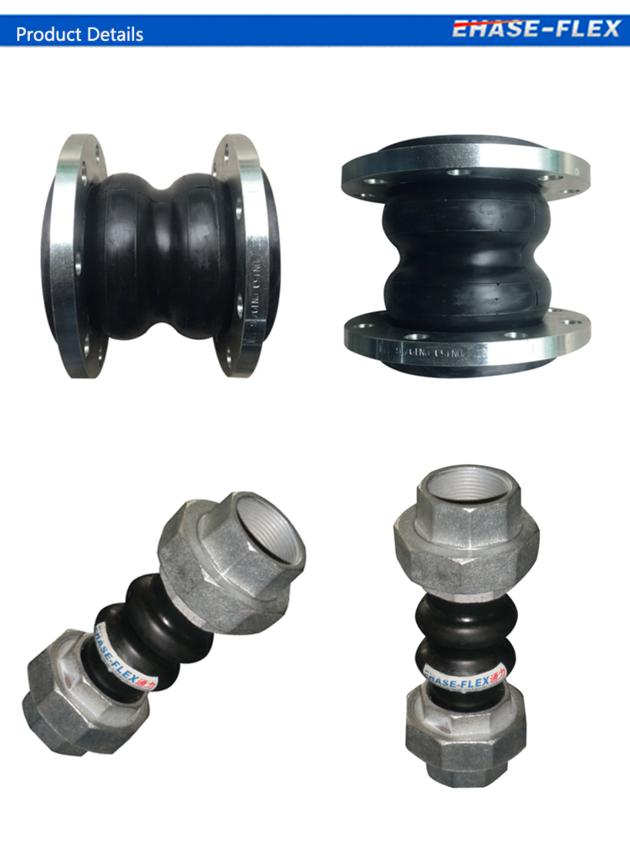

Product Description
Quick Details Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ehase-flex
Model Number: EH-20/20H
Type: Rubber Joint
Material: EPDM, NEO, Butyl, Nitrile, Hypalon, Natural Rubber Joint
Technics: EPDM Rubber Joint
Connection: Flange
Shape: Equal
Head Code: Round
Size: DN15-DN800
Temperture: Max.60℃
Bursting Pressure: 60kg/cm2
Flange Standard: JIS, ANSI, DIN, BS, JB...
Certificate: ISO 9001
OEM/ODM: Allowed
Application: Water, Warm Water, Sea Water, Weak Acid Fluid, Soda Fluid etc.
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton Box, Pallet or Plywood Case; As Customer's Requirement
No Unacceptable Packaging Material or Bamboo Products Been Used as Packing
Port
shanghai or ningbo or Any Port in China
Lead Time :
Depends on QTY; Normally 20days or As Client's Requirement
Application
Water, Sea Water, Fresh Water, Warm Water, Weak Acid Fluid, Soda Fluid, etc.
Construction:
Item Parts Material Remark
1 Outerlinner Natural Rubber EPDM, Hypalon, Neoprene, Butyl, Nitrile
2 Key Frame Nylon Cord Fabric
3 Presswired Steel Wire
4 Flange Carbon Steel Stainless Steel
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK...
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Hangzhou, Zhejiang Prov., China
|
