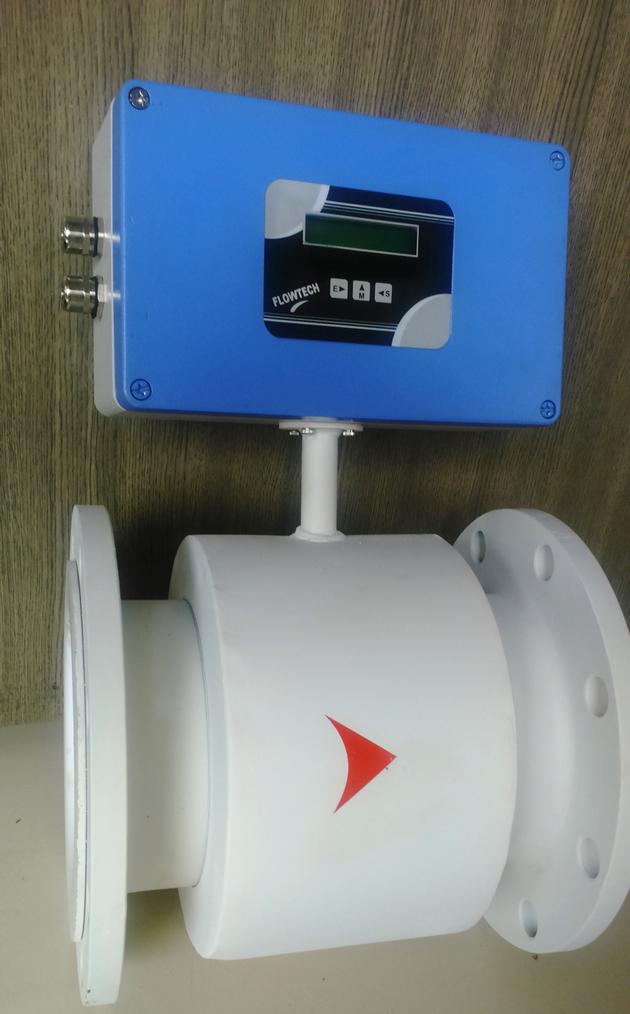

ELECTRO MEGNETIC INDUSTRIAL FLOW METER
| Price: | US$ 405 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | 100 % ADVANCE BY T.T |
| Port of Export: | MUMBAI |
Product Details
| Model No.: | EMFM-108 | Brand Name: | FLOWTECH |
|---|
| Certification: | FLOWTECH MEASURING INSTRUMENTS PVT.LTD. |
|---|---|
| Specification: |
This is working on the principal of faraday`s law which states that when a conductor moves through a magnetic field of a given strength a voltage is produced in the conductor and proportion to the relative velocity between the conductor and the magnetic field.
TECHNICAL DETAIL Nominal Dia (mm) : 15 to 400 Material of Construction : MS, SS 304, SS 316 & SS 316L Electrode Material : SS 316, SS 316L, Hastelloy ‘c’, & Tantalum Process Pressure : Max. 25 kg/cm2 Process Temperature : Max. 150C Flow Tube Material : SS 316 End Connection : Flange/Wafer Flange- Standard : ANSI B 16.5 150 #RF / 300 # RF Measuring Range : 0.5 m/sec for Minimum & 5m/sec for Maximum Accuracy : ¯ 1% FSD Optional: ¯0.5% FSD. Repeatability : 0.3% Display : 2 Line Alfa Numeric LCD Display Version : Integral /Remote Display Unit : Standard Unit in M3, Litre Power Supply : 230 VAC, 110 VAC & 24 VDC Output : Std. 4 – 20 mA Protection Class for Sensor : IP 65 Protection Class for Transmitter : IP 65 Cable Length for Remote : 10 meters. Installation : Inline Flange Type |
Packaging & Delivery
| Packaging: | WOODEN CAGES |
|---|---|
| Delivery/Lead Time: | 2 WEEK |
| Production Capacity: | 500 PIECS PER MONTH |
Product Description
FLOWTECH Make Electromagnetic Flow Meter are intended for measuring flow of electrically conductive liquids in closed pipe lines where the magnetic flux permeates the entire cross sectional area of the liquids flow. Electromagnetic flow meters measure electromotive forces to determine liquids velocity using Faraday’s law of electromagnetic induction and compute the flow rate using equation of conductive liquids having minimum conductivity of 5 micro Siemens / cm and are relatively immune to the effects of temperature , pressure , viscosity & density of the flowing liquid.
|
