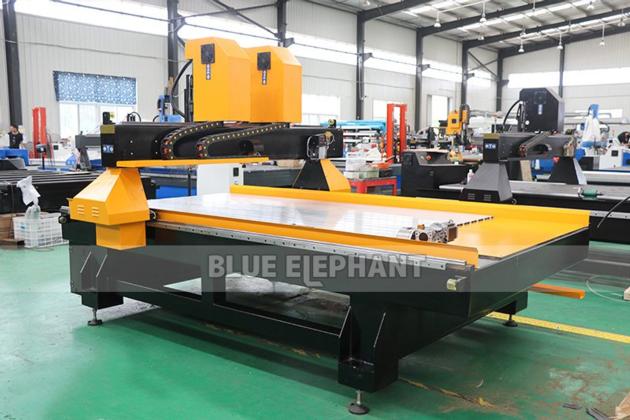

ELECNC-1325-2S Wood Working Machinery

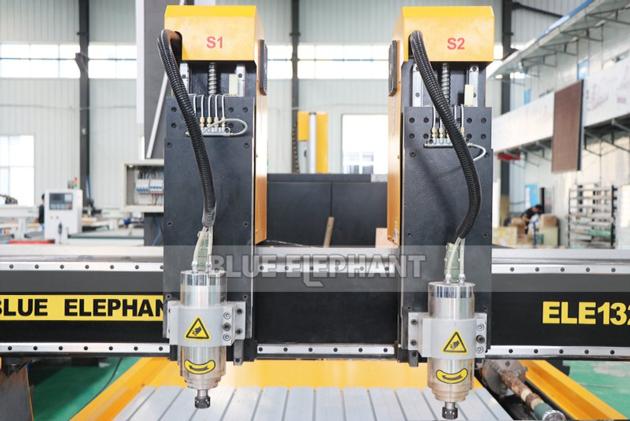

This engraver is equipped with two independent spindles, which can be switched automatically to work or work at the same time. It greatly improves production efficiency. It is worth mentioning that the spacing between the two spindles can be adjusted to more intelligently meet the processing needs. In addition, the machine is designed with a rotating device. And whose position and length can be customized, user-friendly design, easy to disassemble and install.

Features:
Like 1325-2 Wood CNC Router, the machine was designed with two heads. And the amount of head can be added to three or more.
The machine can engrave several materials at one time, which can greatly increasing the working efficiency. There is also the typical features of 2055-DS Multi Heads CNC Wood Carving Machine.
All the Multi-head CNC Router Machines were designed with casting iron frame, Thicken and bigger steel pipe structure after special treatment, well welded, no distortion for whole structure, high precision and long using life.
Besides, the machine was designed with rotary device. And it’s length and dimension can be made just according to your actual need.

Parameter：
Description Parameter
X,Y,Z Working Area 1300x2500x400mm
Table Surface T-slot working table
Structure Industrial class square tube strong structure
Rotary device Diameter 160mm, length 2000mm (option and customized)
X, Y, Z axis Structure Rack and gear for 3 axis, X axis, Y axis, Z axis
Transmission Taiwan PMI square linear guide way for 20mm
Taiwan TBI ball screw
X,Y Resolution <0.01mm
Spindle Power Changsheng 3kw water cooling spindle
Spindle Speed 0-24000RPM
Drive Motors FL118 stepper motor and YAKO2811 drive
Inverter Fuling 3.7kw inverter
Control System Mach3 4 axis control system
Lubrication Manual Lubrication system
Tool sensor Manual tool sensor calibration
Control box Control box inside
Option oil mist cooling sprayer; dust collector system
Limit switch Japan OMRON limit switch for X, Y, Z axis
Command Language G Code
Computer Interface USB
Software Compatibility ARTCAM software
Running Environment  Temperature 0 – 45 Centigrade
Relative Humidity 30% – 75%
Application
Multi router woodworking industry： Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising industry： Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Die industry： A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
We have cnc woodworking machines for sale, welcome to buy.
