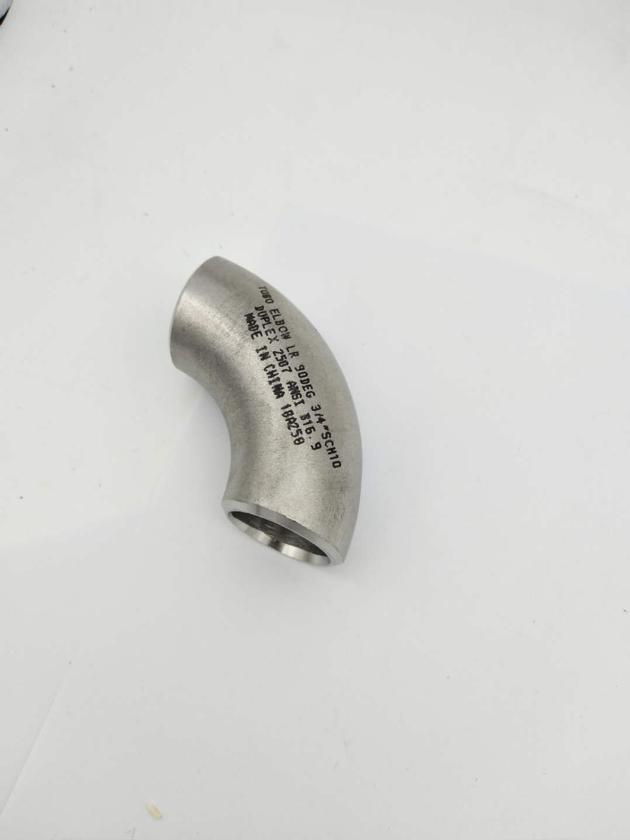

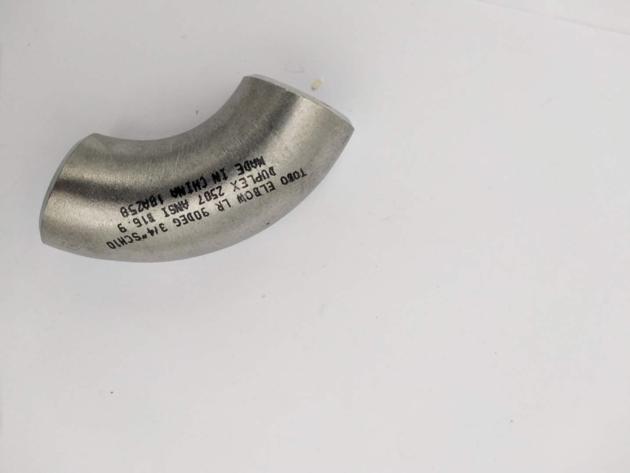

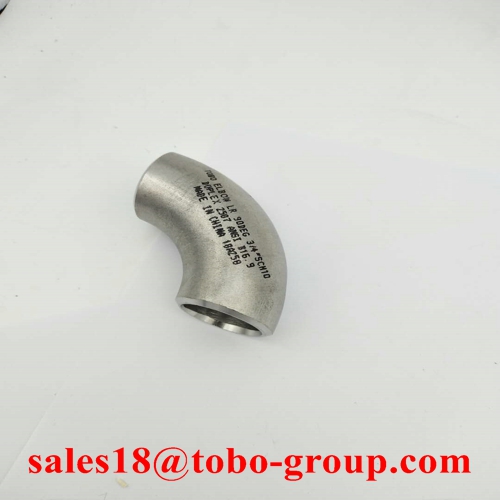

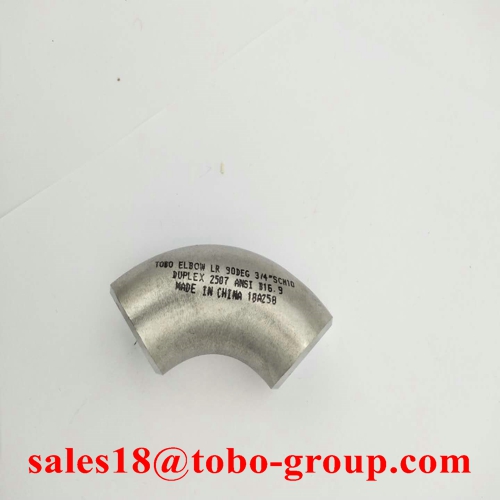

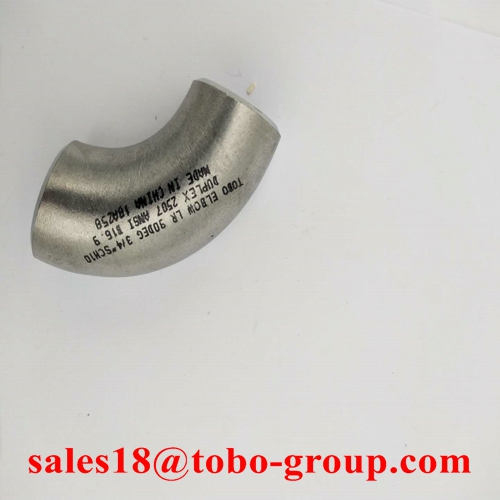

ELBOW LR 90DEG 3]4'' SCH10 DUPLEX 2507 ANSI B16.9

Price:	US$ 1
Minimum Order:	1
Payment Terms:	T/T
Port of Export:	Shanhai

Product Details

Model No.:		Brand Name:	TOBO

Certification:	9.ISO9001:2000, API, BV, SGS, LOIYD
Specification:	Specification ND OD(MM) Center to end Approx Weight KG/PCS DN INCH OD A O 5S 10S 20S 40S 80S 20 3/4 25 20.7 - - - - - - - 25 1 32 33.4 25 50 0.055 0.096 0.11 0.11 0.15 32 11/4 38 42.2 32 64 0.069 0.075 0.102 0.132 0.14 0.15 0.158 0.17 0.20 0.236 40 11/2 45 48.3 38 76 0.12 0.13 0.18 0.186 0.2 0.21 0.22 0.24 0.3 0.33 50 2 57 60.3 51 102 0.17 0.176 0.297 0.308 0.787 0.396 0.42 0.44 0.6 0.616 65 21/2 73 76.1 64 128 0.35 0.364 0.53 0.546 0.64 0.655 0.89 0.91 1.0 1.29 80 3 89 76 152 0.486 0.729 0.972 1.36 1.94 90 31/2 101.6 89 178 0.7 1.05 1.4 1.96 2.8 100 4 108 114.3 102 204 0.90 0.94 1.2 1.4 1.7 1.876 2.56 2.77 4.0 4.13 125 5 133 141.3 139.7 127 254 1.8 2.02 2.1 2.37 3.2 3.49 4.0 4.4 6.5 6.98 150 6 159 168.3 165.2 152 304 2.6 2.9 3.1 3.4 4.8 5.0 6.8 7.1 10.3 11.0 200 8 219 216.3 203 406 6.25 5.0 7.0 6.8 11.08 10.7 14.1 13.5 22 21 250 10 273 267.3 254 508 10.08 9.7 11.2 10.0 17.6 16.0 24.6 23.0 44.8 40.0 300 12 325 323.9 318.5 305 610 14.8 16.7 23.3 37 64.5 350 14 377 355.6 356 711 19.1 15.6 22 19.5 38 34 48.6 42.6 80.0 74.0 400 18 426 406.4 406 812 29.0 26.5 35 30 57.0 49.9 67 62 149.0 135.0 500 20 529 508 508 1016 - - - - - 550 22 559 559 1118 - - - - -

Certification:

9.ISO9001:2000, API, BV, SGS, LOIYD

Specification:

Specification

ND OD(MM) Center to end Approx Weight KG/PCS
DN INCH OD A O 5S 10S 20S 40S 80S
20 3/4 25 20.7 - - - - - - -
25 1 32 33.4 25 50 0.055 0.096 0.11 0.11 0.15
32 11/4 38 42.2 32 64 0.069 0.075 0.102 0.132 0.14 0.15 0.158 0.17 0.20 0.236
40 11/2 45 48.3 38 76 0.12 0.13 0.18 0.186 0.2 0.21 0.22 0.24 0.3 0.33
50 2 57 60.3 51 102 0.17 0.176 0.297 0.308 0.787 0.396 0.42 0.44 0.6 0.616
65 21/2 73 76.1 64 128 0.35 0.364 0.53 0.546 0.64 0.655 0.89 0.91 1.0 1.29
80 3 89 76 152 0.486 0.729 0.972 1.36 1.94
90 31/2 101.6 89 178 0.7 1.05 1.4 1.96 2.8
100 4 108 114.3 102 204 0.90 0.94 1.2 1.4 1.7 1.876 2.56 2.77 4.0 4.13
125 5 133 141.3 139.7 127 254 1.8 2.02 2.1 2.37 3.2 3.49 4.0 4.4 6.5 6.98
150 6 159 168.3 165.2 152 304 2.6 2.9 3.1 3.4 4.8 5.0 6.8 7.1 10.3 11.0
200 8 219 216.3 203 406 6.25 5.0 7.0 6.8 11.08 10.7 14.1 13.5 22 21
250 10 273 267.3 254 508 10.08 9.7 11.2 10.0 17.6 16.0 24.6 23.0 44.8 40.0
300 12 325 323.9 318.5 305 610 14.8 16.7 23.3 37 64.5
350 14 377 355.6 356 711 19.1 15.6 22 19.5 38 34 48.6 42.6 80.0 74.0
400 18 426 406.4 406 812 29.0 26.5 35 30 57.0 49.9 67 62 149.0 135.0
500 20 529 508 508 1016 - - - - -
550 22 559 559 1118 - - - - -

Packaging & Delivery

Packaging:	14.Wooden box or wooden pallet.
Delivery/Lead Time:	Within 15 days
Production Capacity:

Product Description

Description:

1.Product Item No.: 002fittings-Cosco Steel
2.Product name: 2205 Stainless Steel 90D LR Elbow
3.Material: stainless steel,alloy steel,carbon steel
4.Size:
Seamless(SMLS) Elbows : 1/2"-2 4" ,DN15-DN600
Butt Welded Elbows (seam) :24"-72",DN600-DN1800
5.Thickness:SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
6.Type:
SR 30,45,60,90,180 degree
1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
7.Pressure: Sch5--Sch160,XXS
8.Standard: ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2
9.CE and Certification: ISO9001:2000, API, BV, SGS, LOIYD
10.Application Range: "Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power etc."
11.The third party inspection: BV, SGS, LOIYD, TUV, and other party alloyed by clients.
12.Remark: Also can supply IBR fittings and Specialized NACE & HIC Fittings.
13.Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
14.Packing: Wooden box or wooden pallet.
15.H.S Code: 73072300
16.Material:

Material ASTM Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,
00Cr17Ni14Mo2, ect.)
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,
A420WPL6,A420WPL3
DIN Carbon steel:St37.0,St35.8,St45.8
Stainless steel:1.4301,1.4306,1.4401,1.4571
Alloy steel:1.7335,1.7380,1.0488(1.0566)
JIS Carbon steel:PG370,PT410
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
Alloy steel:PA22,PA23,PA24,PA25,PL380
GB 10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,
12CrMo, 12CrMoG, 12Cr1Mo

ELBOW LR 90DEG 3]4'' SCH10 DUPLEX 2507 ANSI B16.9
