EH-30/30H Hangzhou Twin Sphere Rubber Expansion Joint With Union
| Price: | US$ 5~2000 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | EH-30 | Brand Name: | Ehase-Flex |
|---|
| Certification: | ISO |
|---|---|
| Specification: |
Specification Dia L Movement Operating Conditions Axial Compress Axial Extension Transver Se Disp. Angular Disp Max. Pressur (kg/cm2) Max. Temp (mm) (in) (mm) (mm) (mm) (mm) (ÿ) EH-10 EH-10H ℃ 15 1/2 200 22 6 22 45 10 16 60 20 3/4 200 22 6 22 45 10 16 60 25 1 200 22 6 22 45 10 16 60 32 1 1/4 200 22 6 22 45 10 16 60 40 1 1/2 200 22 6 22 45 10 16 60 50 2 200 22 6 22 45 10 16 60 65 2 1/2 240 22 6 22 45 10 16 60 80 3 240 22 6 22 45 10 16 60 Packaging & Shipping No Unacceptable Packaging Material or Bamboo Porducts Used at Packing |
Packaging & Delivery
| Packaging: | Carton Box, Pallet, or Plywood Case |
|---|---|
| Delivery/Lead Time: | 20 Working Days |
| Production Capacity: | 10000 Piece/Pieces per Month |
Product Description
Quick Details Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ehase-flex
Model Number: EH-30/30H
Type: Union
Material: Rubber, Neo, Butyl, Nitrile, EPDM, Hypalon, Natural Rubber
Technics: Thread
Connection: Female
Shape: Equal
Head Code: Round
Product name: Union Thread Double Sphere Rubber Expansion Joint
Size: DN15-DN80
Bursting Pressure: 60kg/cm2 40kg/cm2
Max Temperature: 60℃
Rated Working Pressure: 10bar or 16bar
Thread: BSPP BSPT NPT
Application: Water, Sea Water, Fresh Water, Warm Water, Weak Acid Fluid...
Certificate: ISO 9001
OEM/ODM: Allowed
upply Ability
Supply Ability:
10000 Piece/Pieces per Month H.S. Code:4016999090
Packaging & Delivery
Packaging Details
Carton Box, Pallet or Plywood Case; As Customer's Requirement
No Unacceptable Packaging Material or Bamboo Products Been Used as Packing
Port
Shanghai, Ningbo or Any Port in China
Lead Time :
5-20 Working Days
Product Description

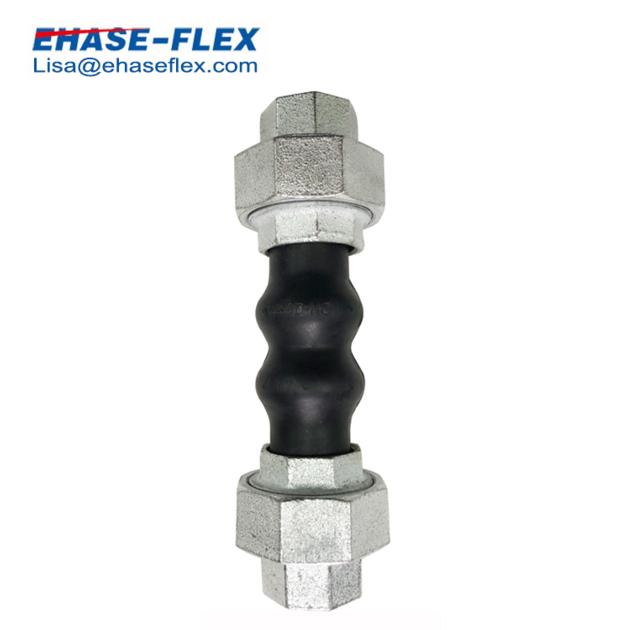

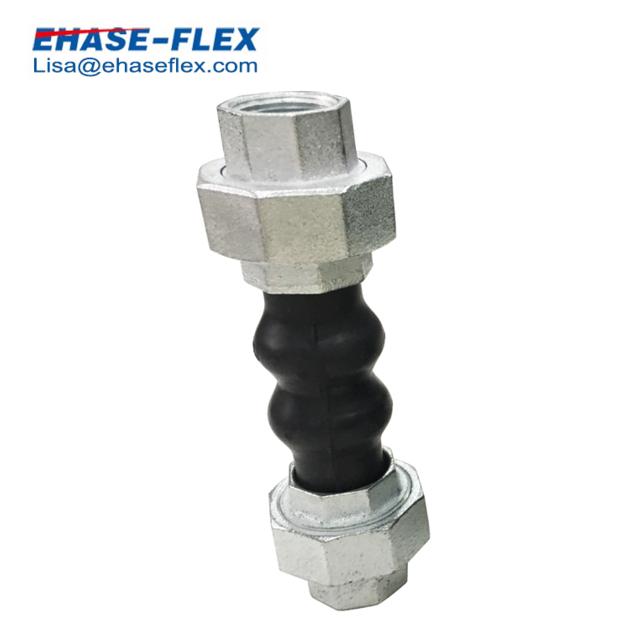

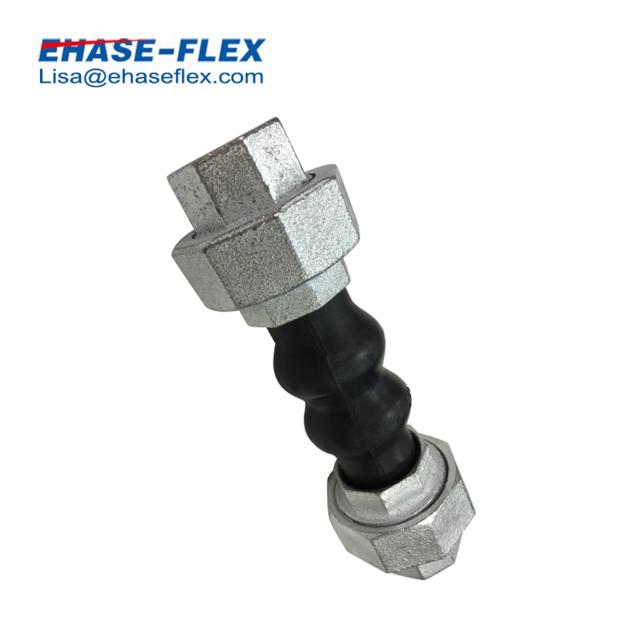

EH-30/30H Union Thread Double Sphere Rubber Expansion Joint
Application
Water, Sea Water, Fresh Water, Warm Water, Weak Acid Fluid, Soda Fluid, etc.
Construction:
Item Parts Material
1 Outerlinner Rubber Neo, Butyl, Nitrile, EPDM, Hypalon, Natural Rubber
2 Key Frame Nylon Cord Fabric
3 Union FCD Galvanized, Stainless Steel
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK...
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Hangzhou, Zhejiang Prov., China
|
