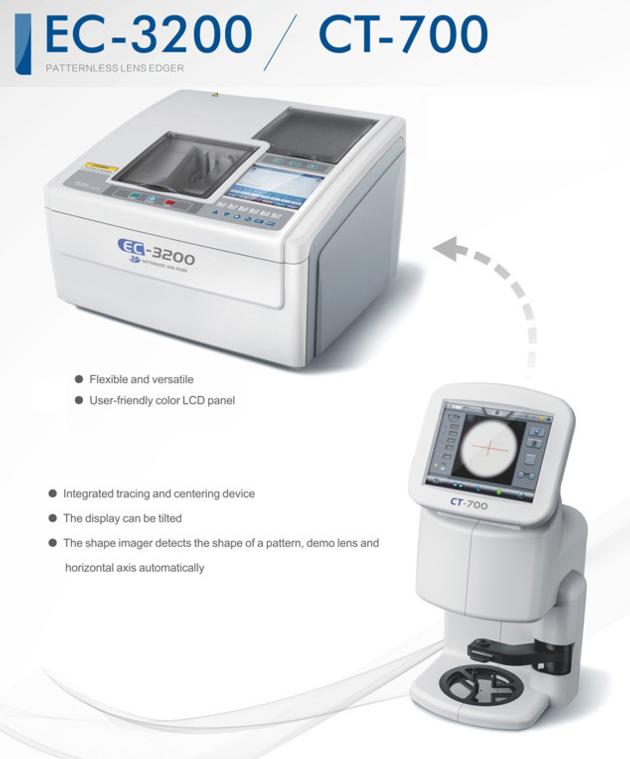

EC-3200/CT-700 3D Auto Patternless Lens Edger

GD03009
3D Auto Patternless Lens Edger
Model No.: EC-3200/CT-700

Features:
1. Flexible and versatile
2. User-friendly color LCD panel

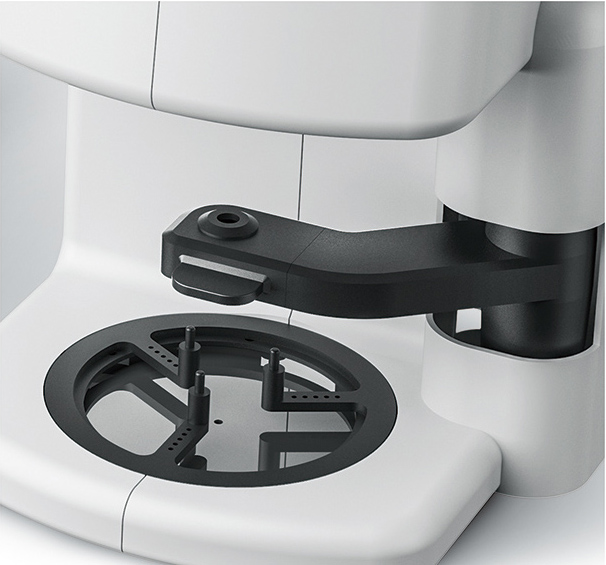

3. Integrated tracing and centering device
4. The display can be tilted
5. The shape imager detects the shape of a pattern, demo lens and horizontal axis automatically
6. The pattern could be stored to improve efficiency. Frame memory could save time and storage space.
7. 3D lens inspection system
8. Grooving and safety beveling
9. Processing mode for various kinds of lens materials

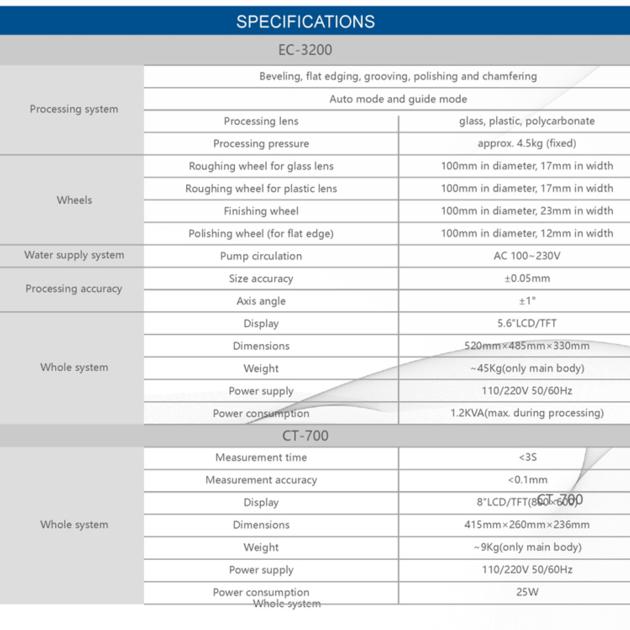

Specifications:
EC-3200
Processing system
Beveling, flat edging, grooving, polishing and chamfering
Auto mode and guide mode
Processing lens: glass, plastic, polycarbonate
Processing pressure: approx. 4.Skg (fixed)

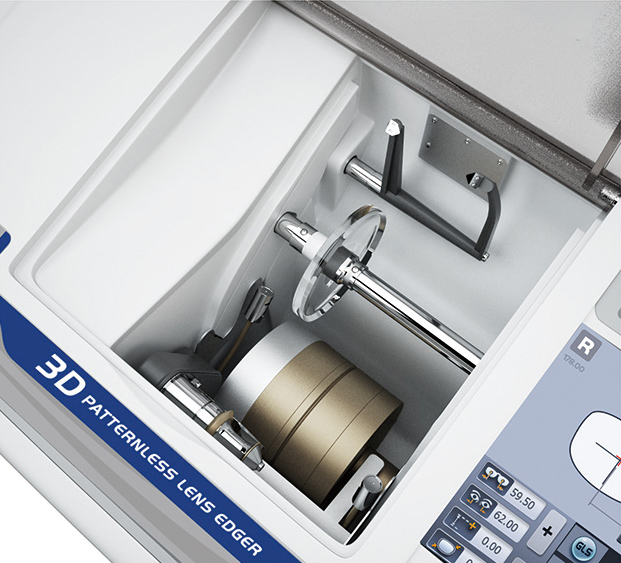

Wheels
Roughing wheel for glass lens: 100mm in diameter, 17mm in width
Roughing wheel for plastic lens: 100mm in diameter, 17mm in width
Finishing wheel: 100mm in diameter, 23mm in width
Polishing wheel(for flat edge): 100mm in diameter, 12mm in width
Water supply system
Pump circulation: AC 100~230V
Processing accuracy
Size accuracy: ­0.05mm
Axis angle: ­1.
Whole system
Display: 5.6’’LCD/TFT
Dirnensrons: 520mm•485mm•330mm
Weight: -45Kg(only main body)
Power supply: 110/220V 50/60HZ
Power consumption: 1.2KVA(max. during processing)

CT-700
Whole system
Measurement time: <3S
Measurement accuracy: <0.1mm
Display: 8″LCD/TFT(800•600)
Dimensions: 415mm*260mm*236mm
Weight: 9Kg(only main body)
Power supply: 110/220V 50/60Hz
Power consumption: 25W
