Ductility Testing Machines

Ductility Testing Machines

PRODUT CODE

PRS-AS0400 Ductility Testing Machine, 220-240 V 50-60 Hz

PRS-AS0420 Ductility Testing Machine with Cooling Unit 220-240 V 50-60 Hz

PRS-AS0430 Force Ductility Testing Machine, EN 13589, 220-240 V 50-60 Hz

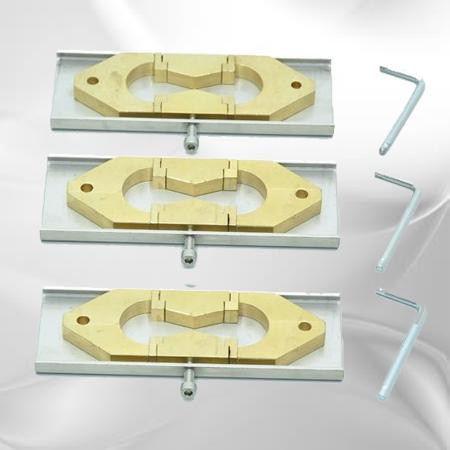

PRS-AS0402 Ductility Briquette Mould, ASTM D113 and AASHTO T51

PRS-AS0404 Ductility Mould Base Plate

PRS-AS0406 Ductility Mould, ASTM D6084, AASHTO T300 and EN13589 (force measurement ), Brass

PRS-AS0408 Ductility Mould, EN 13398

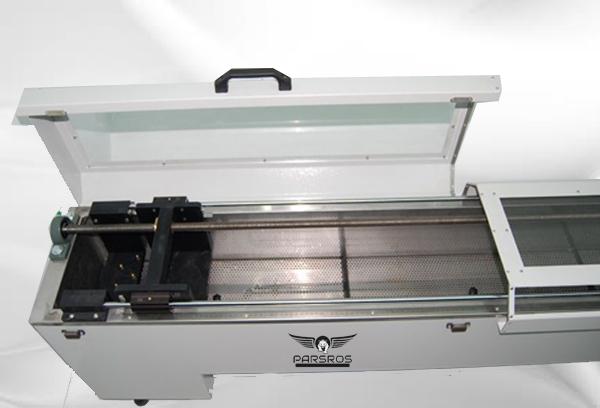

The PRS-AS0400 Ductility Testing Machine is used to determine the ductility of bituminous materials in a briquette mould by measuring the breaking elongation at a constant speed of 50 mm/min.

It is designed for testing 4 specimens simultaneously.

The Internal tank is made of stainless steel. The bath is fitted with an immersion heater in order to obtain (in normal conditions), the 25®C test temperature.

Each machine comprises speed control and water circulator to maintain the homogenous water temperature.

The PRS-AS0420 Ductility Testing Machine with Cooling Unit has the same specifications with PRS-AS0400 Ductility Testing Machine but with an additional cooling unit and It is not possible to convert PRS-AS0400 to PRS-AS0420 .

PRS-AS0430 Force Ductility Testing Machine has 4 loadcells.The accuracy of loadcells are ¯0,1N with a maximum capacity of 300 N.

The PRS-AS0430 has a cooling unit PRS-AS0430 model is equipped with BC 100 TFT Graphic Display Automatic Control and Data Acquisition Unit.

Failure condition can be down loaded to the Unit. Speed can be set and load-displacement curves are drawn through the software.

• Elongation measurement through motor encoder.

• 4 simultaneous load measurement with18 bit resolution.

• Speed contol with servo AC motor between 0,01 to 100 mm/min.

• Ethernet connection for computer interface.

Moulds and mould base plates should be ordered separately for all type machine.
