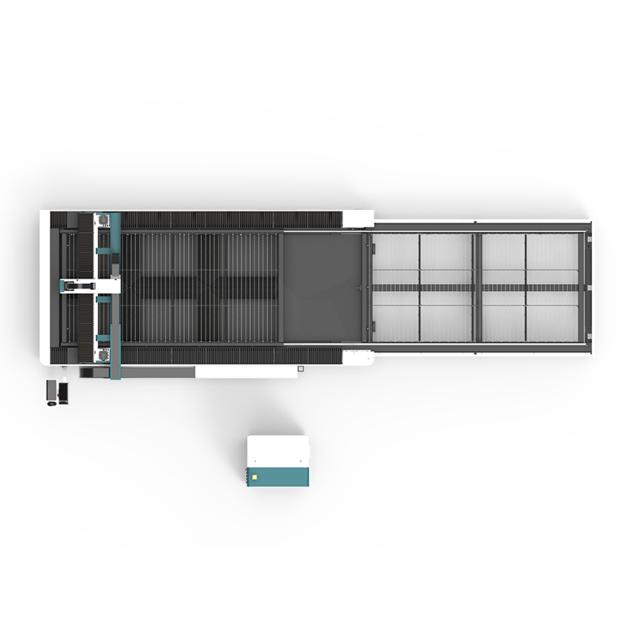

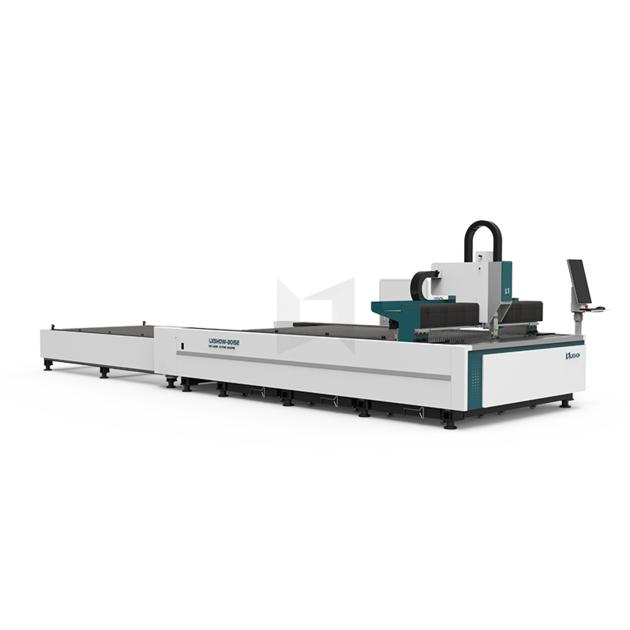

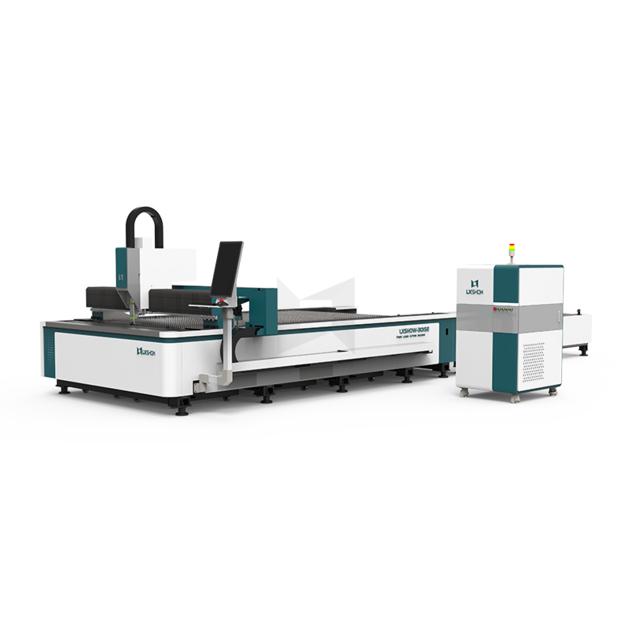

Dual table high effiency fiber laser cutting machine LX3015E

Configurations:
#Working size: 1500*3000mm
#Heavy duty machine frame
#Aviation aluminum gantry
#JPT laser generator 3000w
#Bochu FSCUT2000Ccontroller
#Raytools BM111 laser head autofocus
#CYPCUT software
#Taiwan Hiwin rails y30 x20 z20
#Taiwan YYC gear transmission
#Z axis TBI ball screw transmission
#Japan Yaskawa servo motor and driver X 850W Y:1300W Z 400W
#France MOTOVARIO Reducer/Japan Shimpo
#France Schneider Electric Device
#S&A/Hanli/Tongfei Water chiller
#Industrial CPU + cantilever
#Special design exhaust system
#ATC Oil Lubrication
#Focus lens/collimating mirror/ceramic ring
#AVENTICS proportional valve
#Solenoid valve
#Protection mirror*5
#Cutting nozzle*10
#Voltage: 380v, 3 phase, 50hz

https://youtu.be/jLh9ovlxUrc
https://youtu.be/jLh9ovlxUrc

1. Exchanged working table, improve production efficiency.
2. Equipmented with rotary axis, dual use, no matter metal pipe or metal plate.
3. High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
4. Stable Running: adopt top world fiber lasers generator, stable performance, key parts can reach 100,000 hours.
5. High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
6. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
7. Low Maintenance: fiber line transmission no need reflect lens, save maintenance cost;
8. Easy Operations: fiber line transmission, no adjustment of optical path.
