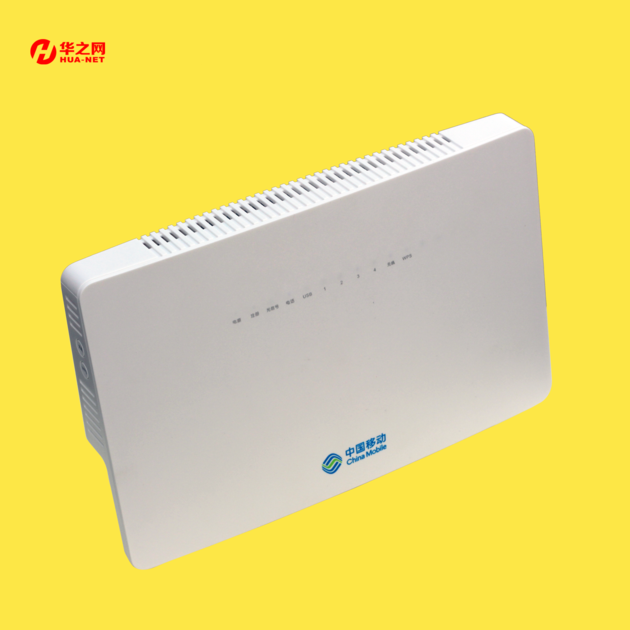

Dual Band Wifi 2.4G 5G Gpon ONU 4GE 2POTS Huawei HS8546V ONT
| Price: | US$ 29 |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T,Western Union,Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | HS8546V | Brand Name: | Huawei |
|---|
| Certification: | CE,RoHs, FCC |
|---|---|
| Specification: |
1. HS8546V Huawei FTTH solution,using the GPON technology, ultra-broadband access is provided for home and SOHO users.
2.Provides 1* POTS ports, 4* GE Ethernet ports, and 2.4G&5G Wi-Fi. 3.High-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. 4.A perfect terminal solution and future oriented service supporting capabilities for FTTH deployment.. |
Packaging & Delivery
| Packaging: | As huawei original carton |
|---|---|
| Delivery/Lead Time: | within 5 days |
| Production Capacity: | 5000pcs/Mon |
Product Description
Product Description:
Huawei gpon onu HS8546V GPON ONT series equipments are manufactured and developed by Huawei company, which is a leader in FTTH/ FTTO broadband access network field. They are properly manageable added with features such as high-bandwidth, high reliability, low power consumption and satisfy the users requirement to access broadband, voice, data and video etc.
Performance Specification:
xPON GPON
Optical interface SC/UPC
UNI 1POTS+4GE+2USB+2.4G&5G Wi-Fi
WiFi standard 2.4GHz: 2 x 2 MIMO 802.11b/g/n
5GHz: 2 x 3 MIMO 802.11a/n/ac
Antenna gain 2dBi
Dimensions(Width×Depth×Height) 265mm x 176mm x 82mm
Box Dimensions(Width×Depth×Height) 290mm x 230mm x 95mm
Box Weight(kg) 0.85kg
Power supply Power supply: 11-14V DC, 1A
Input power: 100-240V AC, 50/60HZ
Operating temperature and operating humidity 0®C to 40®C
5% to 95%, non-condensing
Cooling Passive cooling
Maximum number of MAC addresses learned 1024
L2 forwarding capability 200 Mbit/s downstream (with any length packets)
200 Mbit/s upstream (with any length packets)
IPv4 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
IPv6 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
Configuration method NMS, Web, or TR069
Voice protocol SIP, H.248
Software version V300R017C10
|
