Dryer Fabric For Paper Machine

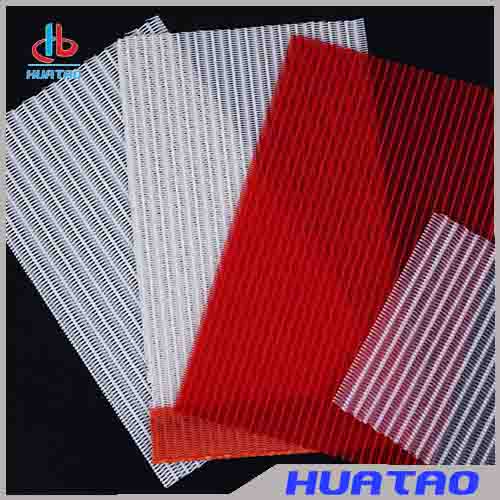

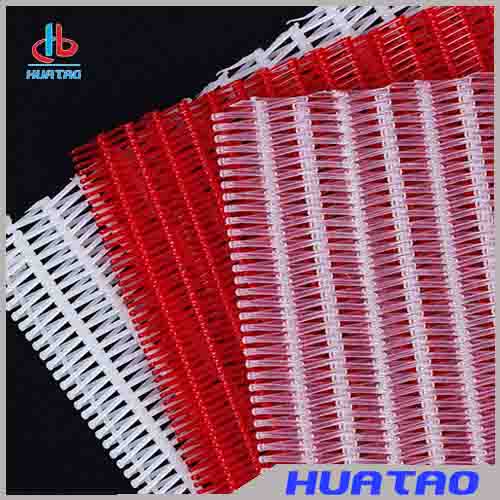

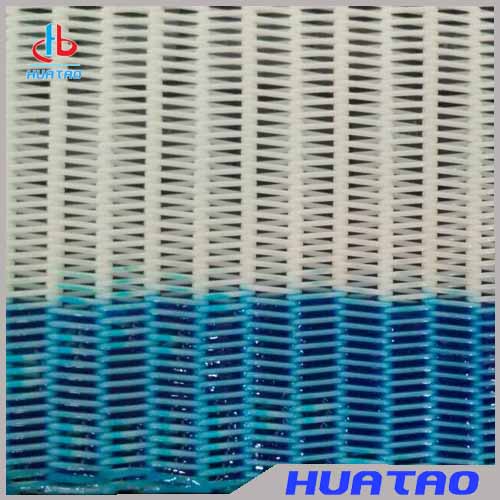

Flat yarn spiral dryer screen composed of flat wire, the surface dryer screen is smoothly, depending on the filling yarn added to the spiral dryer screen, air permeability range from 100 to 1380 CFM.
With its flexible and adjustable permeability and perfect surface, the paper breaking caused by airflow disturbance is greatly reduced, thus improving the production efficiency of paper machine, the flat yarn spiral dryer screen mainly used to the high speed paper machine which required high grade of paper.
The selection of dryer screen is depending on the various paper machine parameters such as paper grades, dryer cylinders configuration, dryer cylinder temperatures, air balance in the hood etc. Dryer screen design and materials are also very important.
For a particular paper machine, the permeability, design and materials of the dryer screen should be adapted to make sure optimum drying from a drying section. The air permeability of the dryer screen has a great impact on the rate of evaporation of water. If the permeability is decreased, then it is reduction in drying capacity of the dryer screen.
