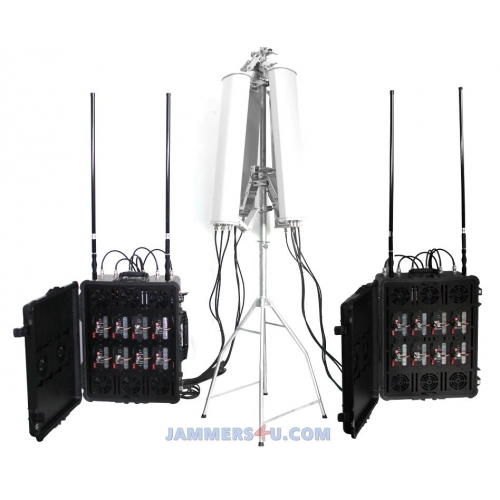

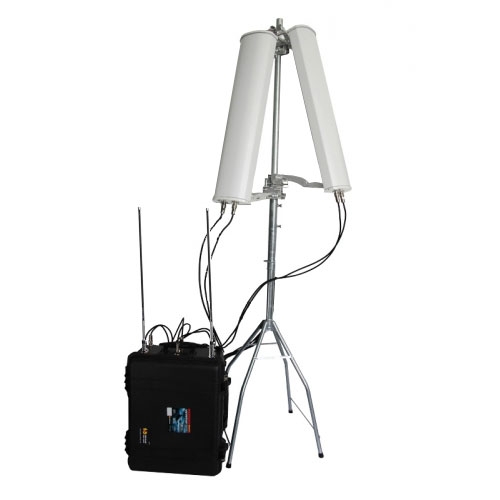

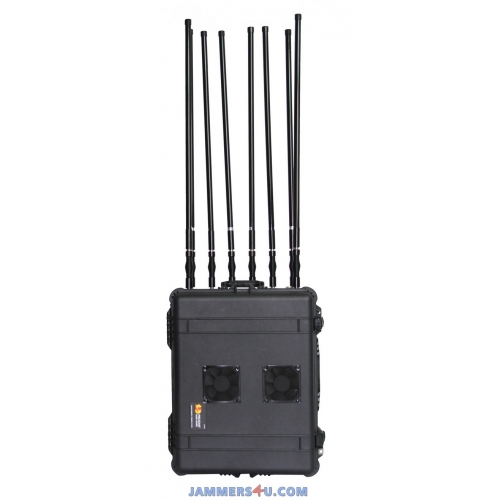

Drone UAV Jammer 650W 8 Bands up to 8km

CT-8078ATW-HGA 650W UAV Drone Jammer 180 Degree 2.4Ghz 5.8Ghz GPS L1 L2 433Mhz 900Mhz up to 8000m

Portable Multi-purpose Extreme powerful Commercial Drones UAV flight killer

Max 650W 8 Bands : 2 x 5.8GHz, 2 x 2.4GHz, 2 x GPS L1, RC 433MHz, RC 900/868MHz

Frequency/antennas specification 8 bands:
- One Directional HGA Antenna with Three Bands to Cover 90 Degrees
1. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 100W
2. 1570-1620MHz GPS L1 + GLONASS L1 100W
3. 5.7GHz-5.9GHz WiFi 11.a 20-25W
4. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 100W
5. 1570-1620MHz GPS L1 + GLONASS L1 100W
6. 5.7GHz-5.9GHz WiFi 11.a 20-25W
7. RC 900Mhz 860-930Mhz 100W in 360 degree Omni Antenna
8. RC 433/434Mhz 100W in 360 degree Omni Antenna
TOTAL: 650W

Jamming range:
- Omni Antenna : 360 degree 1000-4000 meters+

- HGA Antennas : 180 degree 2000 to 8000 meters + - We recommended use of HGA Antennas with this model. Total 6 bands in 2 HGA Antennas that blocks 180 degree, so make sure you know which way UAV Drone coming or to cover 360 degree will need 2 units

One Directional HGA Antenna with three Bands will cover 90 Degrees
Total per unit Two Directional Antennas that cover 180 Degrees

- Military Omni Vehicles Antennas Option: 360 degree 2000 to 6000 meters+

Cover Most Commercial Used Drones / UAVs 2.4Ghz 5.8Ghz GPS L1 , L2 433mhz, 900Mhz
Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...

Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular
Power supply: AC adapter (AC 220V-DC 27V or 24V/45 Amp) or External Battery
Stand-alone modular design and individual power control.
Adjustable Output Power each Band/Channel
VSWR over protection for each modular.
Working status indicator for each band modular.
Pelican 1620 Case Raining Proof
Dimension：626 mm(L)×49.2mm(W)× 350mm(H)
Weight：45 Kg (approximately) just main unit
Operating temperature: -20℃ ~ +60℃
Humidity: 5% ~ 90%
Warranty: 1 year

Package contents:
1 pc main jammer
8 pcs Omni antennas 750mm long
2 pcs Omni Antennas frame and cables 2-3m long
2 pcs HGA Antennas
1 pcs AC Adapter (AC 220V-DC 27V or 24V/45 Amp)
1 pc Wireless RC that works on AC Adapter
(- Wireless RC will not works when device use battery)
(- Tripod is not included in our prices)

Additional antenna options:
8 pcs Military type antennas with vehicle frame
External Battery in order option:
B-50AH 27V/50AH LiFePo4 Battery
Pelican Case 1440, 35kg Weight. Work 1-2 hours



1 Year warranty, Neutral packing, OEM Manufacturer :
R&R GROUP INTERNATIONAL
