Drone RC Jammer HGA Antenna 128-190W 6-7 Band up to 3km

CT-N3076-HGA / CT-N3077-HGA Anti-Drone UAV Jammer 6-7 Bands up to 3000m

Outdoor 100% Waterproof rainproof with directional HGA Antennas

1 Ver CT-N3076-HGA 128W 6 bands
6 Bands in 2 antennas, cover 180 Degrees
2.4Ghz 5.8Ghz GPS Jamming range 800~3000m
- One Directional Antenna with Three Bands to Cover 90 Degrees
1. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
2. 1570-1620MHz GPS L1 + GLONASS L1 40W
3. 5.7GHz-5.9GHz WiFi 11.a 2W
- One Directional Antenna with Three Bands to Cover 90 Degrees
4. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
5. 1570-1620MHz GPS L1 + GLONASS L1 40W
6. 5.7GHz-5.9GHz WiFi 11.a 2W
Total Two Directional Antennas to cover all 180 Degrees
TOTAL: 128W

2 Ver CT-N3076H-HGA 140W 6 bands
6 Bands in 2 antennas, cover 180 Degrees
2.4Ghz 5.8Ghz GPS Jamming range 1200~3000m
- One Directional Antenna with Three Bands to Cover 90 Degrees
1. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
2. 1570-1620MHz GPS L1 + GLONASS L1 40W
3. 5.7GHz-5.9GHz WiFi 11.a 10W
- One Directional Antenna with Three Bands to Cover 90 Degrees
4. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
5. 1570-1620MHz GPS L1 + GLONASS L1 40W
6. 5.7GHz-5.9GHz WiFi 11.a 10W
Total Two Directional Antennas to cover all 180 Degrees
TOTAL: 140W

3 Ver CT-N3077-HGA 178W 7 bands
7 Bands in total 3 Antennas Cover 180 Degrees
2.4Ghz, 5.Ghz, GPS L1, 433Mhz Jamming range 800~3000m
- One Directional Antenna with Three Bands to Cover 90 Degrees
1. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
2. 1570-1620MHz GPS L1 + GLONASS L1 40W
3. 5.7GHz-5.9GHz WiFi 11.a 2W
- One Directional Antenna with Three Bands to Cover 90 Degrees
4. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
5. 1570-1620MHz GPS L1 + GLONASS L1 40W
6. 5.7GHz-5.9GHz WiFi 11.a 2W
Total Two Directional Antennas to cover all 180 Degrees
7. 433mhz Remote Control 50W 360 degree Omni Antenna with mag base
TOTAL: 178W

4 Ver CT-N3077H-HGA 190W 7 bands
7 Bands in total 3 Antennas Cover 180 Degrees
2.4Ghz, 5.Ghz, GPS L1, 433Mhz Jamming range 1200~3000m
- One Directional Antenna with Three Bands to Cover 90 Degrees
1. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
2. 1570-1620MHz GPS L1 + GLONASS L1 40W
3. 5.7GHz-5.9GHz WiFi 11.a 10W
- One Directional Antenna with Three Bands to Cover 90 Degrees
4. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
5. 1570-1620MHz GPS L1 + GLONASS L1 40W
6. 5.7GHz-5.9GHz WiFi 11.a 10W
Total Two Directional Antennas to cover all 180 Degrees
7. 433mhz Remote Control 50W 360 degree Omni Antenna with mag base
TOTAL: 190W

Cover Most Commercial Used Drones / UAVs Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...the jamming distance will be varied depending on the location.
Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular
Wireless Remote Control or Ethernet Interface to control of Jammers ON/OFF
Power supply: AC110 or 220-240V /DC 27V
Jamming Range Radius 1000-3000+ Meters
Weight 19Kg (Main Jammer Only)
Dimension: 470 x 380 x 290mm
Working time: Without the time limit, May continue to work,

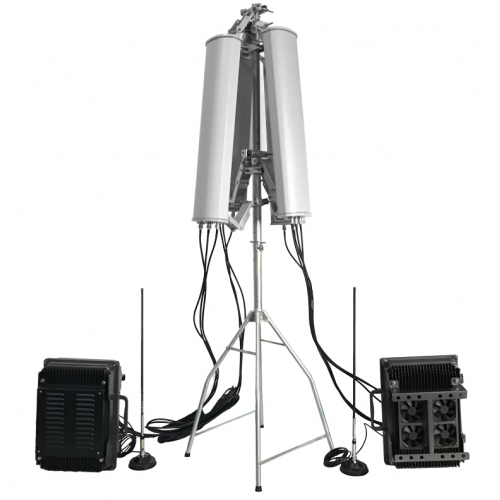

Antenna Directional Patch Panel
One Directional Antenna with Three Bands to Cover 90 Degrees
Total with Two Directional Antennas to cover all 180 Degrees ( Tripod is not included in our prices )

1 Year warranty, Neutral packing, OEM Manufacturer:
R&R GROUP INTERNATIONAL
