Drone Jammer up to 1000m Directional Antenna 32-40W RC

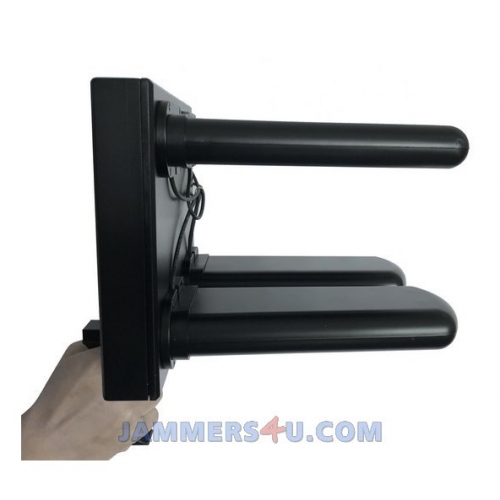

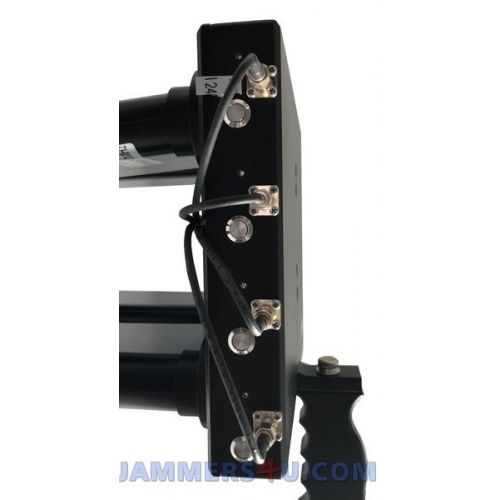

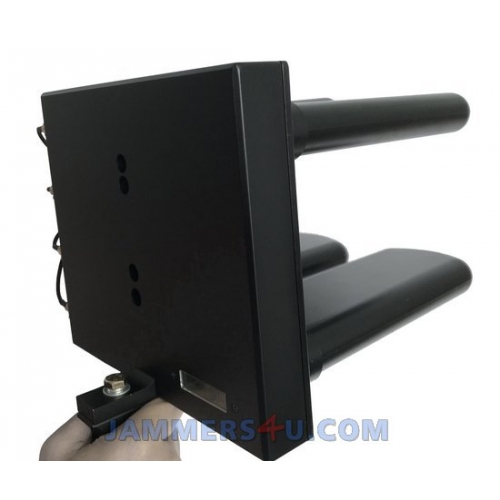

CT-4002P CT-4002PH Portable Anti Drone 32-40W RC Jammer up to 1000m

Portable directional handheld drone (UAV) jammer that is designed to be compact for easy carrying and military terrain use. It is fully autonomy with built in antennas and battery for 80 min operation. It is best suited for military special operations teams, police, security forces that are deployed in different situations

Specialized to block 2.4Ghz, GPS, and 5.8Ghz signals that use most of commercial UAV Drones for their remote controls.. The effective blocking range is 400 to 1000 meters. The jamming distance always varied depending on the signal strength and location Do not blocking GSM Cell phones.

Portable Anti-Drone Jammer
Max 40W, 4 RF Modules, 3 Bands 2.4Ghz GPS L1 5.8Ghz
80 mins Built-in Battery, Battery LED Status

1 Ver CT-4002P Four Bands in One Directional Antenna :
2.4-2.5GHz WiFi 11.g, b, Bluetooth (Vertical Polarization) 10W
2.4-2.5GHz WiFi 11.g, b, Bluetooth ( Vertical Polarization) 10W
GPS L1 + GLONASS L1 1570-1620MHz 10W
5.7GHz-5.9GHz 2W
Total : 32W

2 Ver CT-4002PH new version with 10W on 5Ghz : - we recommend
2.4-2.5GHz WiFi 11.g, b, Bluetooth (Vertical Polarization) 10W
2.4-2.5GHz WiFi 11.g, b, Bluetooth ( Vertical Polarization) 10W
GPS L1 + GLONASS L1 1570-1620MHz 10W
5.7GHz-5.9GHz 10W
Total : 40W

Jamming Range radius 400~1000 Meters
Battery Operating Time 80 Minutes, Battery LED Status
Two 2.4GHz Bands 10W per band cover Most Commercial Drones / UAVs
Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...
Adjustable Output Power each
Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular
Power supply: AC Charger adapter (AC220V/110V)
Dimension：240 x 210 x 260 mm (H × W × D)
Weight：3.6 Kg (approximately)
Operating temperature: -20℃ ~ +60℃

Four Bands in One Directional Antenna Specification
Electrical Specifications
Frequency Range 1575-1620MHz 2400-2500MHz 2400-2500MHz 5150-5875MHz
Gain 9dBi 13dBi 13dBi 16dBi
VSWR ≤1.5 ≤1.5 ≤1.5 ≤1.5
Polarization Vertical Vertical Vertical Vertical
Horizontal beamwidth 95® 65® 65® 25®
Vertical beamwidth 65® 50® 50® 28®
Front to back ratio ≥24dB ≥25dB ≥25dB ≥25dB
Input Impedance 50Ω 50Ω 50Ω 50Ω
Max Input Power 50W50W50W 50W
Double 2.4GHz 10W block much longer
Good Isolation each other (4 bands in)
Connector N-M
Lightning protection Direct Ground
Mechanical Specifications
Dimensions 210*94*34mm
Weight 0.8 kg each
Radiator Material Alumina
Radome Material Black



1 Year warranty, Neutral packing, OEM Manufacturer :
R&R GROUP INTERNATIONAL
