Driving Disc Plow
| Price: | US$ 1000 / Set |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | L/C |
| Port of Export: | QING DAO |
Product Details
| Model No.: | Brand Name: | Amisy Farming Machine |
|---|
| Certification: | |
|---|---|
| Specification: |
Technical parameters of Amisy series Driven Disc Plough
Model 1LYQ -320 1LYQ -420 1LYQ -520 1LYQ -522 1LYQ -622 1LYQ -722 1LYQ -822 1LYQ-922 1LYQ-1022 1LYQ-1122 1LYQ-1222 1LYQ-922A 1LYQ-1022A 1LYQ-1122A 1LYQ-1222A 1LYQ-924 1LYQ-1024 1LYQ-1124 1LYQ-1224 Matched power (hp) 12~18 18~25 25~30 35~45 50~60 60~70 70~80 90~100 90~120 100~120 100~150 Cultivating width (m) 0.66 0.88 1.10 1.10 1.32 1.54 1.76 2.10 2.50 2.90 3.30 Discs specification (mm) 500*4 500*4 500*4 560*4 560*4 560*4 560*4 560*4 (560*5, 610*5) Cultivating depth (mm) 120~200 160~200 Output speed (r/min) 540/720 Working speed (km/h) 3~4 Oil cost (kg/acre) 0.60~0.75 Adjustable range of machines inclination angle: 28 ¯5® Weigh (kg) 216 240 276 300 321 357 410 550 600 650 700 Linkage three-point suspension Outline dimension L×W×H (mm) 855 ×1145 ×1050 965 ×1365 ×1050 1075 ×1585 ×1050 1075 ×1585 ×1050 1210 ×1805 ×1050 1325 ×2025 ×1050 1440 ×2245 ×1050 1555×2630 ×1150 1670×2860 ×1150 1785×3090 ×1150 1900×3320 ×1150 |
Packaging & Delivery
| Packaging: | Wooden Box |
|---|---|
| Delivery/Lead Time: | 5-8 WEEKS |
| Production Capacity: | 1000kg/h |
Product Description

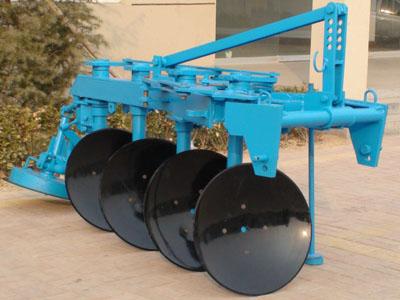

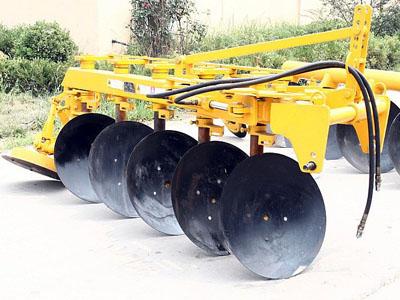

Introduction of Driving Disc Plows
Driving Disc Plow has seen its emergence and improvement since the 1980s. It combines both the advantages of disc harrow and driving tools,which is good for saving energy, strengthening tractor’s power performance, guaranteeing perfect cultivation condition and satisfying various agricultural requirements.
Amisy series driving dis plow is born on such basis. It takes three-point suspension and side mounted gear structure, which can be matched with 15-150 horsepower tractor. It is suitable for paddy, high yielding, green manure, grassy and upland field. Compared with traction-type tillage machine, it has good performance in walking on wetland, good climbing obstacle capability, low cost, etc.
