Drive Sprocket with High Wearability Used in Scraper Conveyor

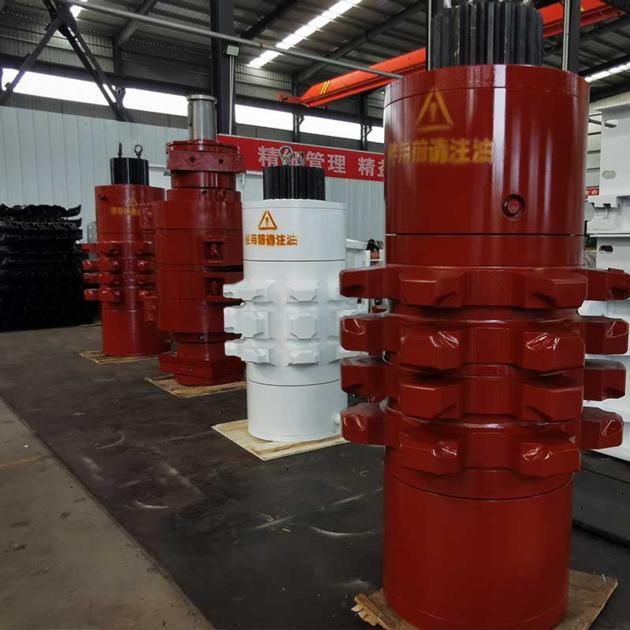

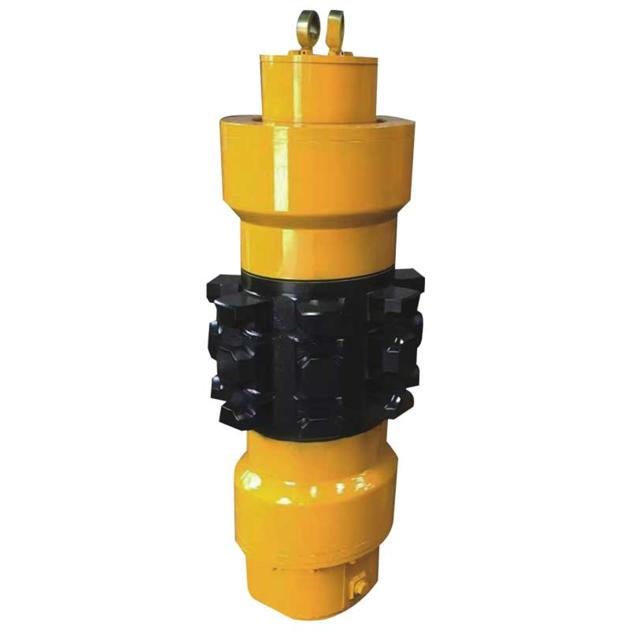

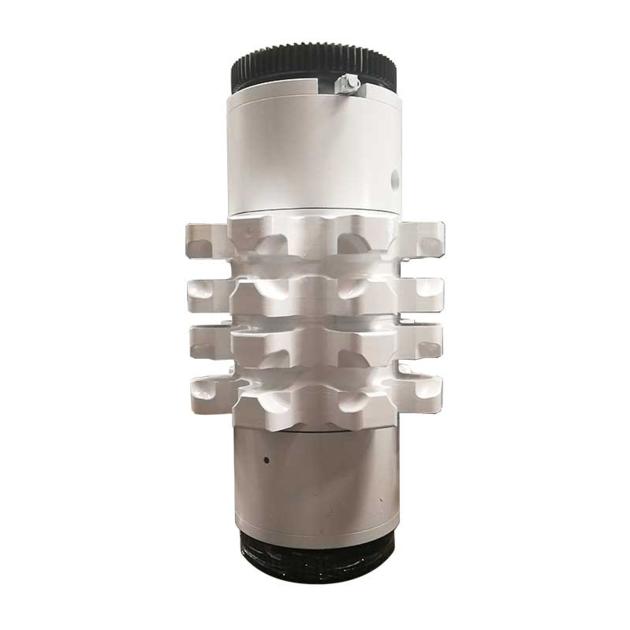

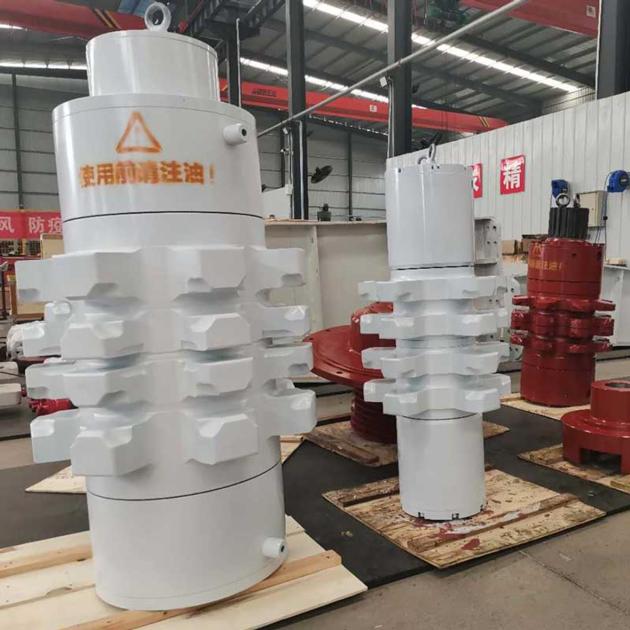

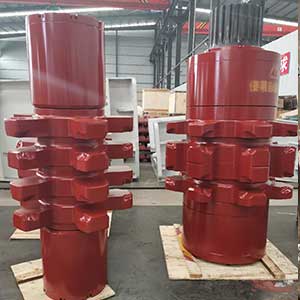

72/06LL sprocket assembly is one of the main parts of the transmission department of SZZ764/200 transfer machine. The sprocket assembly of the head is similar to the structure of the tail, which can be assembled and disassembled as a whole. The sprocket assembly is driven by the scraper chain. The sprocket assembly can be turned for a period of time to allow even wear on both sides of the sprocket teeth.

Szz764/200 transfer machine head and tail sprocket is the same size, mainly by end cover, sprocket shaft, sprocket, floating seal, bearing and so on. The sprocket is forged as a whole with 7 teeth, the tooth shape is machined and the tooth surface is quenched. The inner holes at both ends are involute splines, and the power is transferred to the sprocket through the output shaft of the reducer, so that the sprocket drives the scraper to run. The sprocket can be disassembled as a whole without disassembling the transmission device for easy maintenance.

Henan Shuangzhi can be customized new and restored sprocket components, if you need more information, welcome to visit the factory.
