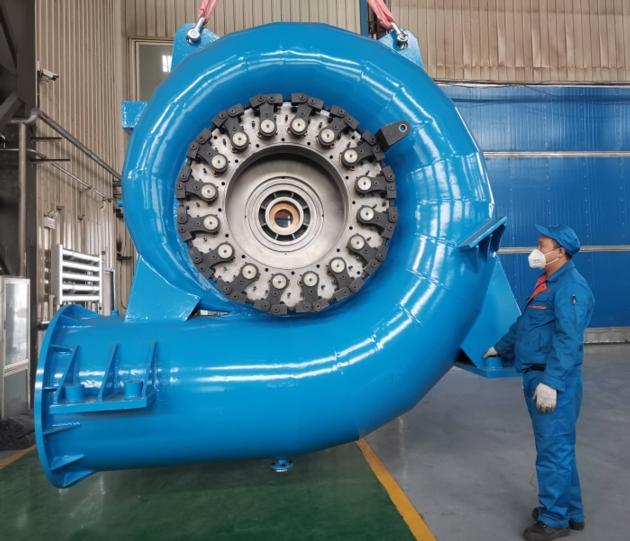

Double-structure Distributor for Francis Turbine of Hydropower Station

Francis turbine is built in a compact structure, with high efficiency, and can be applied to a wide range of water head. This feature makes the Francis turbine a widely used type around the world. The key Francis turbine components includes the runner, distributor, shaft, shaft seal, guide vane, governor, etc.

The double-structure distributor is adopted for Francis turbine, with two distributors combined into one unit, and can be divided into two parts: left distributor and right distributor, each of which is installed with one Francis turbine. This structure could greatly improve the efficiency of turbine, and is often purchased by our foreign clients in their hydropower stations.

The turbine and auxiliary equipment products manufactured by Shenyang Getai Hydropower Equipment Co., Ltd are well popular in more than 30 provinces, cities and autonomous regions in China, and more than 20 countries around the world, including USA, Japan, Italy, Canada, Australia, India, Nepal, Pakistan, Vietnam, etc. In the quality conception of "Taking Technology Firstly, Quality Premier, Sincerity Utmost, and Sustaining Improvement", Shenyang Getai will constantly provide first-class quality products and services, create a warm, sincere, cooperative and enterprising win-win atmosphere. We sincerely invite customers and friends from all sectors of society to visit our company for cooperation and common development!
Shenyang Getai Hydropower Equipment Co.,Ltd main products: Pelton Turbine, Francis Turbine, Kaplan Turbine, Tubular Turbine, etc. For more information, please contact me. Also welcome to our company!

Scope of Application
Water Head: 20-700m
Output: 0.01-1000MW
Frequency: 50/60Hz
Diameter: 0.5-10m

SHENYANG GETAI HYDROPOWER EQUIPMENT CO., LTD. is a leading hydroturbine manufacturer in China, with advanced techniques. It is established in 1992, aiming to supply integral solution for new and old hydropower plants.
Its main products include quality hydroturbine and relevant accessories, including Pelton turbine runner, Francis turbine runner, Kaplan turbine runner, distributor, guide vane, blade, nozzle pipe, spiral case, conical pipe, elbow pipe, etc. for hydroturbine and rotor, stator, high-level oil tank, lubrication oil station, thrust bearing, excitation device and governor for hydrogenerator.
Our company covers an area of 30,000 square meters, and forms professional teams in R&D, design and manufacturing. In 2015, we found an overseas R&D center in Canada. By the use of CFD analysis, we are able to provide the clients with customized design plan to optimize the generation capacity of the power station. Turbine core components are manufactured by the FEA technology.
We are able to provide both the cast and forged CNC-machining products to customers. Castings are manufactured using AOD, VOD ultra-low carbon refined molten steel, and the service life is extended on the basis of ensuring the safe use of the product. We have dozens of high precision lathe, including φ8m, φ6.3m, φ2.5m, M4000H2, GMB2540, TK6920, TK6516, TK6513 and multi-axis CNC boring and milling machining centers.
We made the first integrally-forged CNC-machining Pelton turbine runner in China in 2009, and the first integrally-forged CNC-machining Francis turbine runner in China in 2017.
Now our products are popular in more than 30 provinces in China and 20 countries all over the world, including the USA and Canada in North America; Japan, India, Pakistan, Viet Nam, Laos, Nepal in Asia; Serbia, Slovenia in Europe; Peru, Chile, Brazil in South America; Congo Kinshasa in Africa; Australia, Papua New Guinea in Oceania.
We advocate green production, people-oriented, and honest management. On the basis of several years of turbine manufacturing experience and excellent technology with continuous upgrading, GETAI will offer the best products and service to each customer.
In the quality conception of "Taking Technology Firstly, Quality Premier, Sincerity Utmost, and Sustaining Improvement", Shenyang Getai will constantly provide first-class quality products and services, create a warm, sincere, cooperative and enterprising win-win atmosphere. We sincerely invite customers and friends from all sectors of society to visit our company for cooperation and common development!
