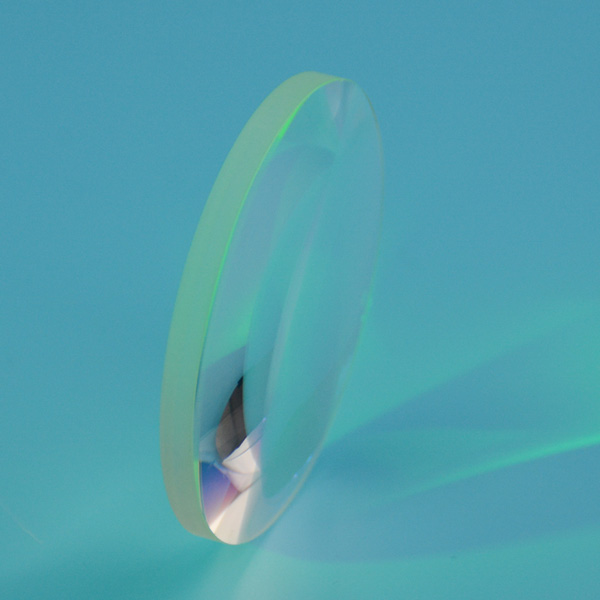

Double Convex Lens

The double convex lens/mirror is symmetrical across both its horizontal and vertical axis. Each of the lens's two faces can be thought of as originally being part of a sphere. The fact that a double convex lens/mirror is thicker across its middle is an indicator that it will converge rays of light that travel parallel to its principal axis. A double convex lens/mirror is a converging lens. A double concave lens/mirror is also symmetrical across both its horizontal and vertical axis. The two faces of a double concave lens can be thought of as originally being part of a sphere. The fact that a double concave lens is thinner across its middle is an indicator that it will diverge rays of light that travel parallel to its principal axis. A double concave lens/mirror is a diverging lens. These two types of lenses - a double convex and a double concave lens/mirror will be the only types of lenses that will be discussed in this unit of The Physics Classroom Tutorial.

If you want to get the double convex lens price, please feel free to contact us.

Description Of Double Convex Lens/double convex mirror
The fact that a double concave lens is thinner across its middle is an indicator that it will diverge rays of light that travel parallel to its principal axis. A double concave lens is a diverging lens. These two types of lenses - a double convex and a double concave lens will be the only types of lenses that will be discussed in this unit of The Physics Classroom Tutorial.

Specifications Of Two Convex Lenses

Material Optical glass/ Fused silica/ sapphire   etc.
Diameter 2mm~300mm
Diameter   tolerance ¯0.05mm(≤50mm)
¯0.1mm(＞50mm)
Focal   length 50mm~2000mm
Focal   length tolerance ¯0.2%（＜10mm）
¯0.5%（＜10mm-1000mm）
¯1%（＜＞1000mm）
Center   Thickness 2mm~20mm
Surface   quality 60/40， 40/20，   20/10
Surface   accuracy λ/2~λ/[email protected]，532nm
Clear   Aperture >85% dig diameter
Centration <3arc min~ 30arc sec
Coating As per customer’s request

Material Diameter
   (mm) Surface Radius   1
   (mm) Surface Radius   2
   (mm) Center   Thickness
   (mm) Focal   Length
   (mm)
H-ZF7LA 5.4 12.19 3.4 2.63 3.5
ZF14 10 11.324 8.083 3.37 5.6
H-ZLAF68B 8 6.11 104.23 2.2 6.7
H-ZF7LA 10 10.49 10.49 3.5 7
ZF11 9 11.5 7.5 9.6 8
H-K9L 14 32.15 13.397 4.7 9
H-K9L 10 9.817 9.817 4.6 10.3
H-ZF62 14 28.64 12.972 6 10.4
H-LAK53A 11 27.589 10.5 3.1 10.4
JGS1 9.5 9.09 9.09 3.5 10.5
H-LAF3 14 10.56 30.62 5 11.1
H-K9L 11 11.695 11.695 4 12
H-K9L 12.5 12.1 12.1 4.5 12.5
ZF6 12 591.82 9.62 4 12.6
H-K9L 6.8 13.183 13.183 2 13.11
JGS1 11 7.34 26.52 6 13.5
H-LAK1 10 19.724 15.346 3.5 13.6
H-LAK3 14 28.31 14.997 5.5 13.8
ZF1 12 17.014 17.014 4.5 13.8
H-ZBAF21 8 12.039 55.72 2.32 13.9
H-LAK7 9 19 19 4 13.9
H-QF50 16.6 17.76 13.315 5.53 13.9
H-ZBAF21 8 12.039 55.72 2.32 13.9
ZK3 11.7 38.965 10.284 33 14.16
H-K51 12.5 14.011 14.011 4.6 14.2
H-K9L 12 36.526 9.005 4.5 14.5
H-K9L 10 64 9.29 3 15
H-ZK2 13 11.06 42.875 5 15.6
H-ZK3 14 31.35 12.702 3.9 15.86
H-LAK7 11 13 77 4 15.9
H-ZBAF21 15 28.81 19.099 3.68 16.4
JGS1 11 73.3 9.067 5 16.5
H-ZK11 15 22.92 21.15 3.73 17
H-ZK9A 12 49.493 13.381 2.5 17.2
ZK3 14.2 12.702 48 3.7 17.44
ZK3 14.8 13.381 40.8 4 17.59
H-ZK11 15 22.92 21.15 3.73 17.8
H-K9L 19.8 22.887 13.765 7.7 17.9
ZK9 16.5 34.28 15.704 4.5 17.98
ZK3 14.8 17.3 25.638 3.8 18.13
H-LAK3 22 16.144 92.68 6.5 18.8
H-ZK9A 11 18.11 31.47 3.1 18.9
H-K9L 15.5 26.12 15.136 4.5 19.28
ZF6 12 19.04 57.53 3 19.3
H-ZK9A 16 14.369 67.975 4 19.48
BaK8 13.5 70.63 13.062 3.6 19.55
JGS1 13.417 15.812 19.59 4.3 19.8
H-F4 32 69.2 20.83 12.5 20
H-ZK10L 15 17.192 43.96 4.69 20.5
H-ZK10L 14 17.912 43.96 4.96 20.5
ZK9 16.5 76.91 15.241 4 20.85
H-ZK6 16 46.88 16.827 4 20.9
H-LAF3B 16 21.59 54.45 3.5 21.1
H-K9L 14.6 23.01 19.59 4.6 21.2
H-ZK3 18 53.85 16.385 4.5 21.84
H-K9L 12.6 22.28 22.28 2.5 22
H-ZLAF68B 20 38.55 38.55 5 22.5
H-ZK10 20 15.62 145.273 7 23
QK3 10 45.16 15 2.36 23.27
H-ZK9 21.5 41.84 21.6 5.5 23.75
H-F4 20.6 16.482 131.2071 4.91 23.9
N-LAK12 15 42.87 25.66 4 24.2
N-ZK9 21.5 70.18 18.65 5.5 24.33
H-ZLAF50B 18 33.525 46.6 3.3 24.7
H-K9L 12.7 25.28 25.28 3.52 25
H-LAK3 20 36.81 36.81 4 25.2
H-K9L 13 50 17.498 3 25.5
H-ZK50 17.8 34.848 26.993 5 25.8
BAK2 25 32.884 23.621 7.8 26.8
ZK9 21 41.8 26.4 5.5 26.91
H-LAK53A 16 29.404 63.187 3 27
H-LAF53 18.5 62.95 29.17 3.7 27
ZK9 22.5 20 100 5.5 27.35
H-ZK3 15.2 19.01 100 3 27.37
H-LAK51 13 37.76 37.76 2.8 27.5
ZBaF3 25.5 100 21.68 6.3 27.69
H-FK61 30 17.97 69.2 12 28
H-LAF3B 18.6 27.616 75.01 7.7 28
