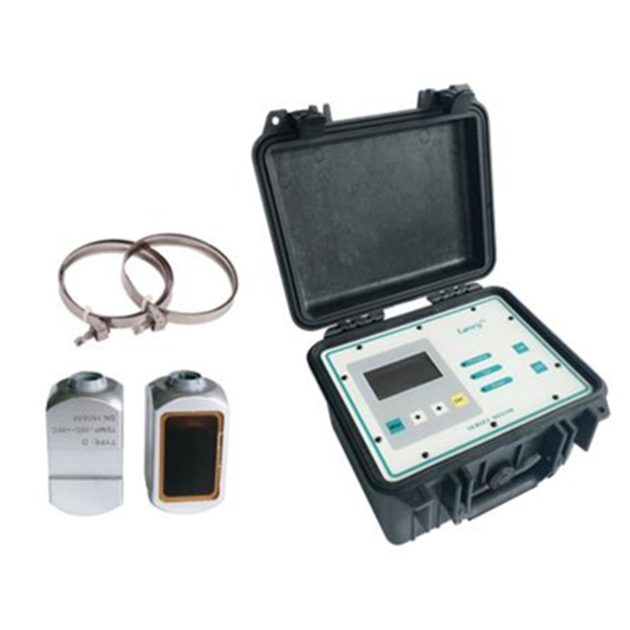

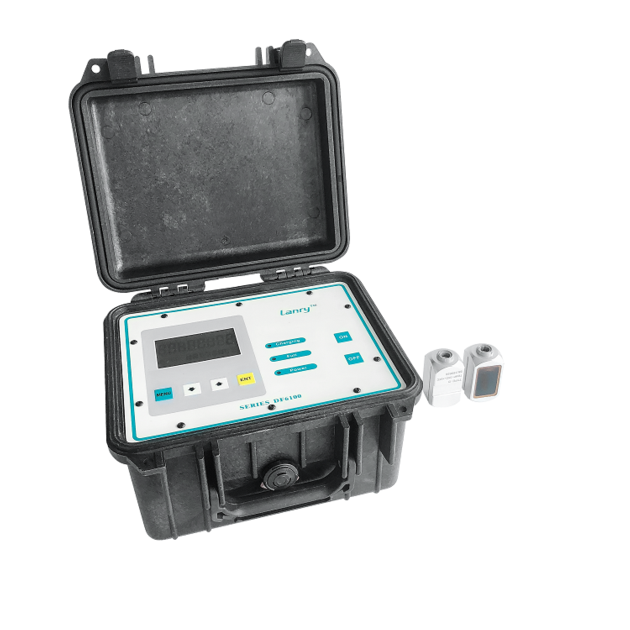

Dopper flow meter full pipes wall mounted portable flow sensor
| Price: | US$ 300-1600 / Unit |
|---|---|
| Minimum Order: | 1 unit |
| Payment Terms: | TT and other payment |
| Port of Export: | shanghaai |
Product Details
| Model No.: | DOF6100-EP | Brand Name: | Lanry |
|---|
| Certification: | |
|---|---|
| Specification: |
DF6100-EP Doppler Portable Ultrasonic Flow Meter Features uRechargeable battery can work up to 50 hours uIt is suitable for pipe sizes ranging from 40 to 4000mm uFor dirty liquids, a certain amount of air bubbles or suspended solids shall be contained uExcellent low flow rate measurement ability, low to 0.05m/s uA wide range of flow measurement, high flow rate can reach 12m/s uHigh-temperature transducer is suitable to liquids of -35℃ ~ 200℃ uDo not need to shut down the pipe flow when installing the transducers uUser-friendly configuration u4-20mA, Relay Totalizer and Relay Alarm outputs uAccuracy: 2.0% Calibrated span |
Packaging & Delivery
| Packaging: | carton |
|---|---|
| Delivery/Lead Time: | 3-7 days |
| Production Capacity: | Shanghai |
Product Description
Specifications: Transmitter
Measurement principle
Doppler ultrasonic
Resolution
0.25mm/s
Repeatability
0.2% of reading
Accuracy
0.5% -- 2.0% F.S.
Response time
2-60s for optional
Flow Velocity Range
0.05- 12 m/s
Liquid Types Supported
Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 micron.
Power Supply
AC: 85-265V
Enclosure type
Portable
Degree of protection
IP65 according to EN60529
Operating temperature
-20℃ to +60℃
Housing material
ABS
Measurement Channels
1
Display
2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable)
Units
User Configured (English and Metric)
Rate
Rate and Velocity Display
Totalized
gallons, ft±, barrels, lbs, liters, m±,kg
Communication
4-20mA,relays for Totalizer and alarm output
keypad
6pcs buttons
Size

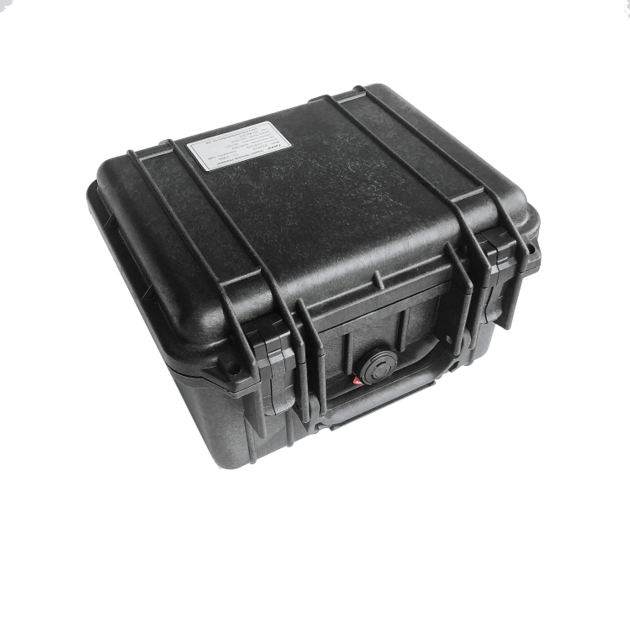

Transmitter:235X125X45mm case:410X320X80mm
Weight
3kg
Specifications: Transducer
Transducers Type
Clamp-on
Degree of protection
IP65. IP67 or IP68 according to EN60529
Suited Liquid Temperature
Std. Temp.: -35℃~85℃ for short periods up to 120℃
High Temp.: -35℃~200℃ for short periods up to 250℃
Pipe diameter range
40-4000 mm
Transducer Size
60(h)*34(w)*33(d)mm
Material of transducer
Aluminum for standard temp. sensor, peek for high temp. sensor
Cable Length
Std: 5m
|
