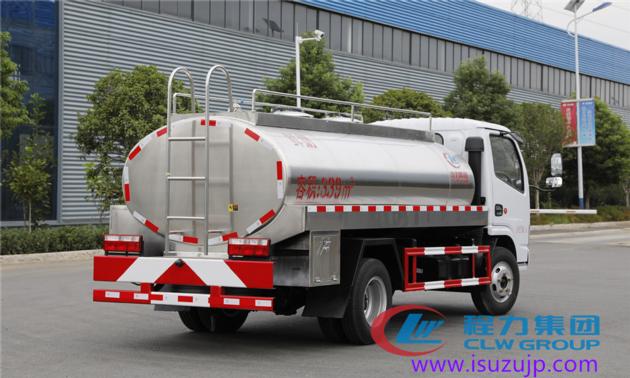

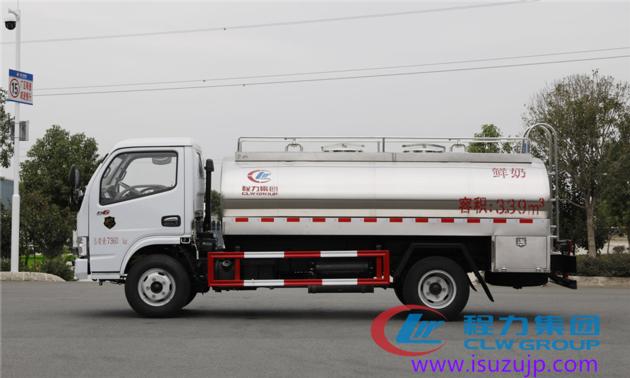

Dongfeng 5000 Liters Milk Truck
| Price: | US$ 20000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT |
| Port of Export: | Shanghai |
Product Details
| Model No.: | CLW5020GSSH3 | Brand Name: | CLW |
|---|
| Certification: | CCC |
|---|---|
| Specification: |
Chassis brand dongfeng
Product origin China, Hubei Delivery time around 10 working days Supply capacity 1,200 units one year Milk truck tank inner is made of 304-2B food grade stainless steel cold-rolled plate, which is welded by argon arc welding; the welding seam is polished with a polished disc to make the inside of the tank smooth without sharp angles, which is convenient for CIP cleaning inside the tank The thermal insulation layer of dongfeng milk truck uses polyurethane foam insulation, the thickness of the polyurethane foam is 70mm; the polyurethane foam is covered with a 10mm rubber sponge for insulation; the temperature insulation effect changes 1-2 degrees Celsius within 24 hours The outside of dongfeng 5000 liters milk truck adopts 201 stainless steel wire drawing board, which is completed by the overlapping of the steel plates, without needing spraying paint, which improves the appearance of the milk tank and the wear resistance of the tank, and at the same time facilitates the cleaning of the tank. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 7 |
| Production Capacity: | 10000sets/year |
Product Description
Application and Brief Introduction
Milk truck is alsocalled milk tank truck, and liquid food transport truck. The tank body ismade of food-grade stainless steel plates, the outside of the tank body is madeof ordinary stainless steel as the insulation layer to prevent the fresh milkfrom deteriorating, the inside of the tank body needs to be clean and free ofsharp angles, and A CIP cleaning device needs to be installed inside. The milk truck is mainly used for the thermal insulation transportationof raw milk to achieve the safe docking transportation function between thepasture and the milk company.
Product Features of Dongfeng 5000 Liters milk truck
Adopt China most cost-effective truck chassis brand: DONGFENG
Food-grade stainless steel SS304-2B, polyurethane foam insulation layer with good insulation effectolyurethanepolyurethane foam in
High quality and competitive price
Main parameter
Product Name
DONGFENG 5000 Liters milk truck
Driving Type
4×2
Weight /Volume
Tank Volume(Liter)
5000
Rated payload weight(kg)
5000
Dimensions
Wheelbase(mm)
3300
Overall Dimension(mm)
5995×2300×3000
Engine
Engine brand & model
CHAOYANG CY4100, option: YUCHAI, YUNNEI
Engine type
4 stroke, water-cooled, straight line 4 cylinders, diesel
Displacement(L)/Power(kw)
3.707/60
Chassis
Axle Quantity
2
Transmission Type
5 forwards,1 reverse gear, manual
Steering Type
LHD or RHD with power steering
Brake system
Air brake
Tire Spec. & size
7.00R16, 6 with a spare
Cab
Standard configuration
Flat proof, single row, radio, sound and so on
Air conditioning
Have
Performance parameter of Dongfeng 5000 Liters milk truck
Tanker shape
Ｏval
Tanker material
Inner 3mm Food grade stainless steel 304-2B, middle 80mm foam insulation layer, outside 2mm ordinary Brushed shape stainless
Warehouse(compartment)
one
Standard configuration
Equipped with one PIC automatic cleaning device, food grade stainless steel valve, interface , pipeline and manhole, with ventilation valve and stainless steel rear climbing ladder, etc
Performance The temperature insulation effect changes 1-2 degrees Celsius within 24 hours
