Dijital Plate Loading Test Set

Dijital Plate Loading Test Set

PRODUCT CODE

PRS-ZE1200 Plate Loading Test Set with Digital Dial Gauges & LPI Digital Readout Unit, 200 kN

PRS-ZE1201 Plate Loading Test Set with Digital Dial Gauges & LPI Digital Readout Unit, 500 kN

PRS-ZE1202 Piston Assemly, 200 kN capacity, for Plate Load Bearing Test Sets

PRS-ZE1203 Piston Assemly, 500 kN capacity, for Plate Load Bearing Test Sets

PRSGE-3800 Hydraulic Hand Pump, 700 bar.

PRS-ZE1204 Loading Plate Ø 300 mm for PRS-ZE1200

PRS-ZE1205 Loading Plate Ø 450 mm for PRS-ZE1200

PRS-ZE1206 Loading Plate Ø 600 mm for PRS-ZE1201

PRS-ZE1207 Loading Plate Ø 760 mm for PRS-ZE1201

PRS-ZE1220 Plate Loading Test Set, with Displacement Transducers and Data Logger, 200 kN

PRS-ZE1221 Plate Loading Test Set, with Displacement Transducers and Data Logger, 500 kN

This test method is used to estimate the bearing capacity of a soil under field loading conditions for a specific loading plate and depth of embedment (ASTM D1194).

It is also used for load tests of soil and flexible pavement components for use in evaluation and design of airport and highway pavements.

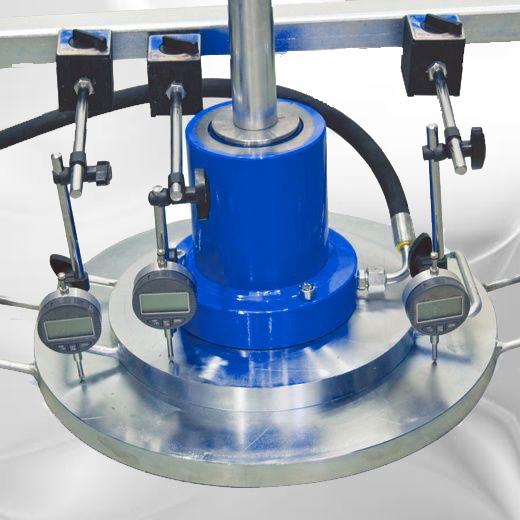

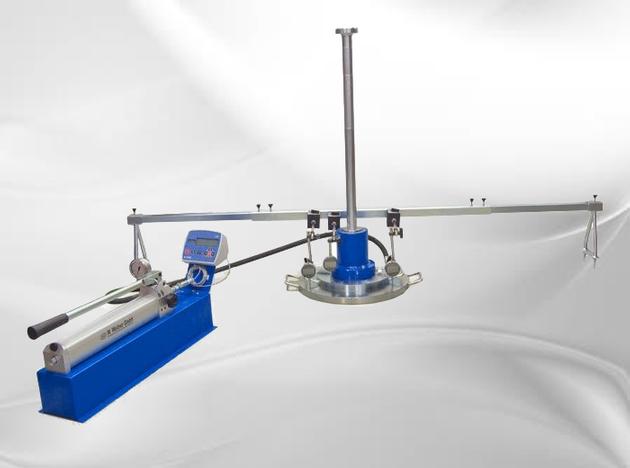

PRS-ZE1200 Plate Loading Test Set consists of a 200 kN capacity piston assemly and hydraulic hand pump, pressure transducer, LPI battery operated digital readout unit, 2.4 m long datum bar, 3 pcs. 25 mm travel x 0.01 mm digital dial gauges with dial supports, 300 mm and 450 mm dia. loading plates,


PRS-ZE1201 Plate Loading Test Set Set consists of a 500 kN capacity piston assemly and hydraulic hand pump, pressure transducer, LPI battery operated digital readout unit, 2.4 m long datum bar, 3 pcs. 25 mm travel x 0.01 mm digital dial gauges with dial supports, 600 mm and 760 mm dia. loading plates.

PRS-ZE1200 Plate Loading Test Set consists of a 200 kN capacity piston assemly and hydraulic hand pump, pressure transducer, 4 channel static unilogger data acquisition unit, 2.4 m long datum bar, 3 pcs. 25 mm x 0.001 mm linear potentiometric displacement transducers and their supports, 300 mm and 450 mm dia. loading plates, converter DC 12 V to DC 24 V and PARSROS software

PRS-ZE1221 Plate Loading Test Set consists of a 500 kN capacity piston assemly and hydraulic hand pump, pressure transducer, 4 channel static unilogger data acquisition unit, 2.4 m long datum bar, 3 pcs. 25 mm x 0.001 mm linear potentiometric displacement transducers and their supports, 600 mm and 750 mm dia. loading plates, converter DC 12 V to DC 24 V and PARSROS software

When there is a need for test set PRS-ZE1200 and PRS-ZE1220, 600mm and 760 mm dia. loading plates or for test set PRS-ZE1201 and PRS-ZE1221 300 mm and 450 mm dia. loading plates should be ordered separately.

All test sets supplied complete with 1,5 m long flexiable hose with qun
