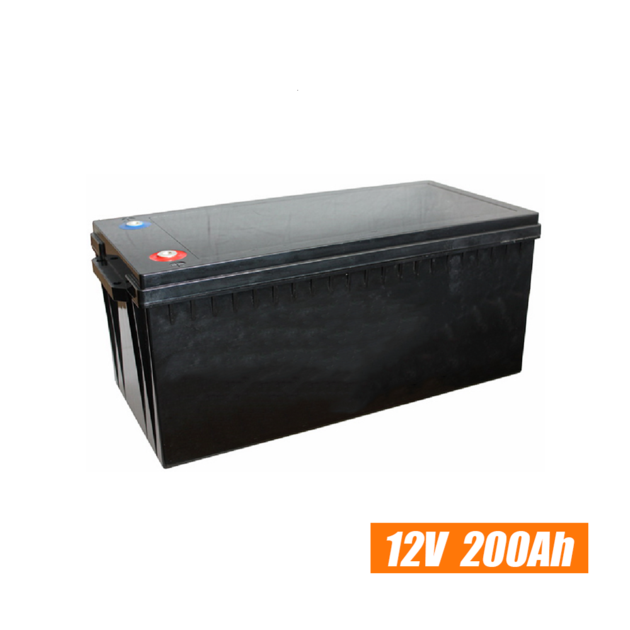

Deep Cycle LiFePO4 Solar Battery 12V 100Ah/ 200Ah Golf Cart Lithium Ion Battery

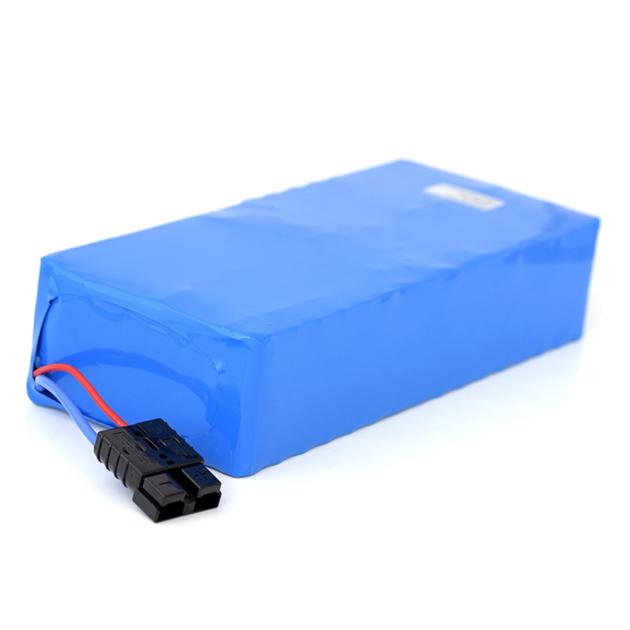

Customized Safety 12v 100ah golf car lithium battery

Mymax provide customized lithium battery pack for golf cart, rickshaw etc. low speed vehicle application, specially design for replacement of conventional lead acid battery, well match to a variety of low speed vehicle.For Customized Lithium Battery Packs, Polinovel would rigorously testing the batteries at specified charge and discharge current before delivery, to ensure the battery packs perfectly meet customer's and application's requirements.

Features:
1.Built-in automatic protection for over-charge,over-discharge and over-temperature conditions
2.Maintenance free
3.Internal cell balancing
4.Communication of monitored data via Battery Management System (BMS)
5.Thousands of cycles,100% DOD,under normal conditions
6.Can be charged using most standard lead-acid chargers (set for AGM/GEL cells)
7.Flame retardant plastics

Application :
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices, Telecom base Station
6. Small medical equipment and portable equipment
Volt
11.1V
Capacity
100Ah （0.2C to 8.4V at 25℃)
Watt
1110Wh
Internal resistance(AC)
≤200mΩ
Cycle life
>1000 cycles @0.2C 80%DOD
Discharge
<3%
Charging volt
12.6¯0.2V
Charging type
0.2C to12.6V, then12.6V,charge current to 0.02C (CC/CV)
Charging current
10-80A
Peak charging current
100A
Charging cut-off volt
12.6V¯0.2V
Constant current
10-80A
Peak constant current
100A
Discharge cut-off current
8.4V
Connection mode
NCM6 3S17P
Case
PVC/Plastic /Iron / Custom
6Dimension（mm）
331*173*21mm/custom
Weight (lbs./kg.)
9
Terminal
M8 Copper screw
Communication protocol (Optional)
RS485/CAN2.0
Extend (Optional)
LED/Bluetooth
