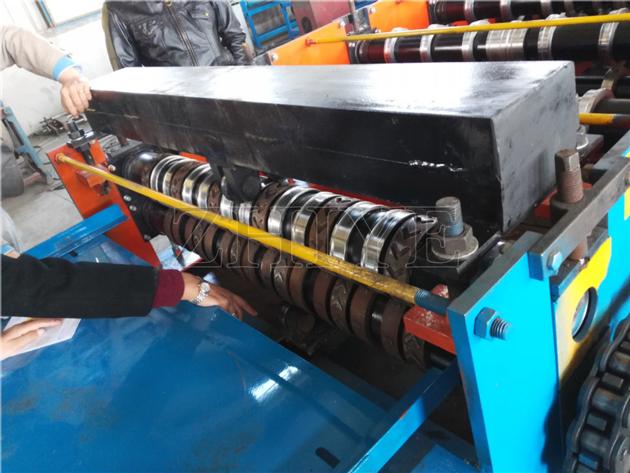

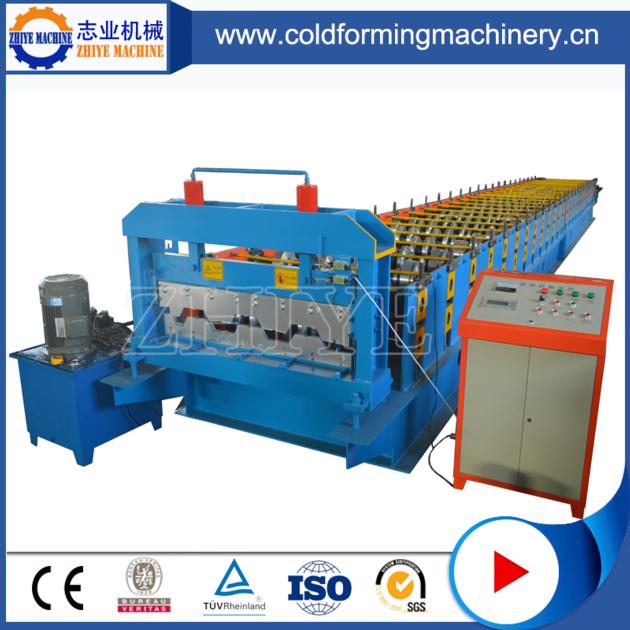

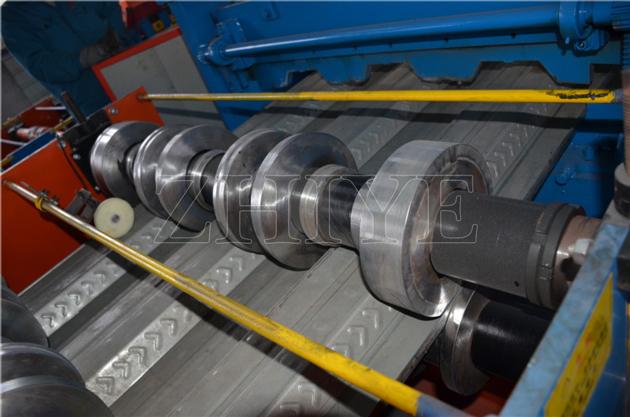

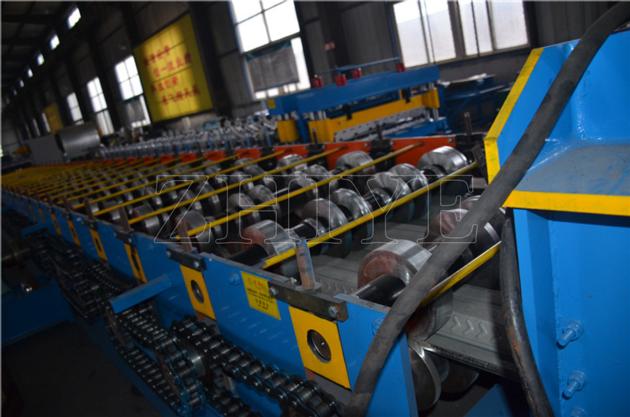

Decking Steel Floor Cold Roll Forming Line
| Price: | US$ 22000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | TT |
| Port of Export: | Tianjin |
Product Details
| Model No.: | as client requirement | Brand Name: | ZY |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: | CE/ISO9001 |
Packaging & Delivery
| Packaging: | nude |
|---|---|
| Delivery/Lead Time: | 35 days |
| Production Capacity: | 20m/min |
Product Description

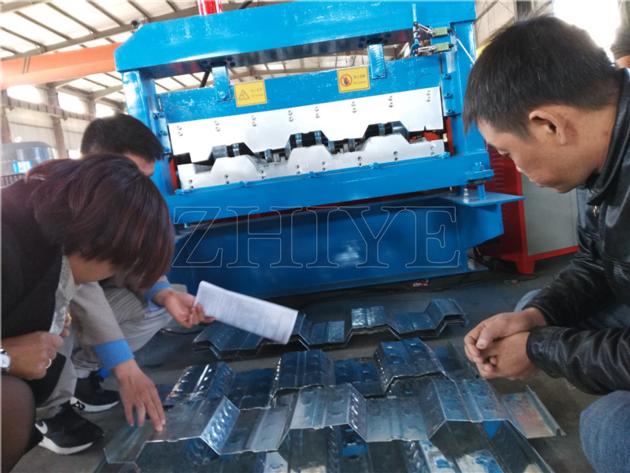

Panels produced by this Decking Steel Floor Cold Roll Forming Line are mainly used as the floor decking in Russia. It has features of high wave, high strength, high degree automatically producing, lower cost and so on.
This Decking Steel Floor Cold Roll Forming Line is set up with concrete, which has good adhesiveness. This not only can save steel moulding plate, but also can decrease the load capacity of floor decking. Therefore, steel quantity of the whole project is decreased and can save money surely.
Technical pararmeter of product line:
1.Suitable process material: colored steel sheet, aluminium steel sheet, and galvanized steel
2.Applied slab thickness:0.3-1.0mm
3 Charge in width:1000mm
4. Line speed:16m--18m/min
5. Rolling rows:16rows
6. Rolling diameter:70mm
7. Dimensions15M*1.9m*1.4m
8. Weight:5t
9. Power:11kw+4kw
Processing technique and deployment:
Uncoiler
Feeding platform
molding core
Molding shearing mechanism
Hydraulic station
Computer control cabinet
Counter
Optional equipment:
Manual uncoiler frame in different tons
Hydraulic automatic uncoiler
