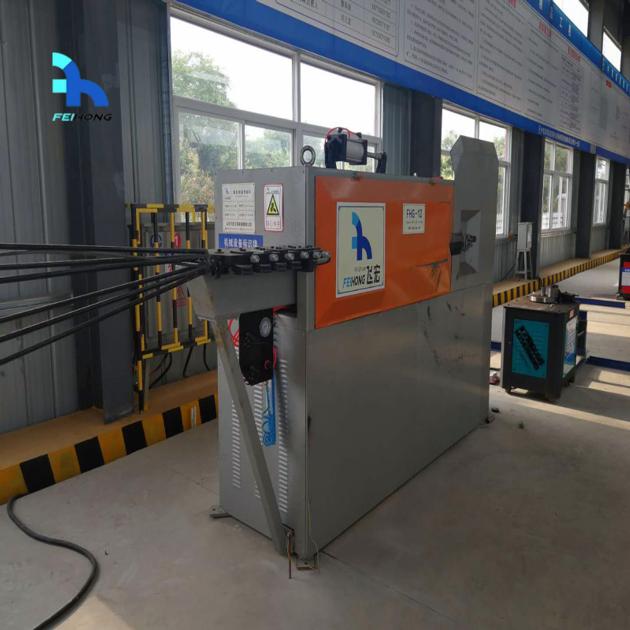

Decent bender machine of Good Quality
| Price: | US$ 30000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT,LC |
| Port of Export: | Qingdao |
Product Details
| Model No.: | FHG-16 | Brand Name: | Feihong |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Model FHG-16
Bending angle(positive and negative bending) ì0-----180î Length tolerance ì1mm Bending angle tolerance ì1î Rated total power 23KW/34.5KW Traction motor power Synchronous servo motor15.5KW/18.5KW Bending motor power Synchronous servo motor 5.5KW/7.5KW Touchable screen 10 inches System Feihong 6.0 Intelligent System Cutting motor power Mechanical cut, 4KW brake motor Traction steel speed 110m/min(MAX) Bending Speed 1500î/S(MAX) Single wire Diameters Φ5-φ16mm Double wire Diameters Φ5-φ12mm Rated Voltage 380V Pneumatic system pressure ≥0.7Mpa Average Production 1800 stirrups/h About 10ton/shift(1 worker) Overall dimension 5600mmx1300mmx2000mm Overall machine weight 3500kg |
Packaging & Delivery
| Packaging: | Box |
|---|---|
| Delivery/Lead Time: | 15--30days |
| Production Capacity: | 80/month |
Product Description
1. Pure CNC stirrup bender can digitally control the traction and pressing amount according to the steel wire diameter, and the electric control detects the bending motion, makes the operation simple and the work more stable.
2. The bending moulds are made by special technology, has high surface hardness and durability.
3. The split type fixed blade design without the overall replacement, it’s convenient maintenance, reduce cost.
4. The full closed loop control of high precision servo drive makes the length accuracy of the machining reach to ì 1mm, and the angle accuracy reach to ì 1 degrees.
5. The electronic control system can store nearly hundreds of commonly used graphics, and can be directly export stored graphics according to the requirements.
6. According to the calculation of 12 hours per day, the output of equipment can reach 15T.
7. The equipment with daily cleaning device, it can easily maintain the equipment and prolong the service life of the equipment
|
