Danfoss Compressor SH090A9ALC

https://okmarts.com/danfoss-compressor-sh090a9alc.html
Danfoss Compressor SH090A9ALC

Refrigerant: R410A, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 380/3/60
Product details
Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 380/3/60
Configuration code Single
Connection type Brazed
Description SH090-9
Diameter [mm] 243 mm
Discharge connection height [mm] 451 mm
Discharge connection pipe size [in] 7/8 in
Discharge connection size [in] 7/8 in

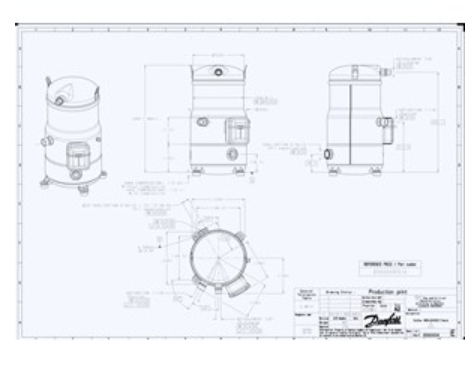

Drawing number 8560004f
Economizer No
Factory HP [bar] 0 bar
Factory LP [bar] 0 bar
Fitting standard ODF
Frequency [Hz] 60
Gauge port HP None
Generation code B
Glass mounting Threaded
Glass torque [Nm] 50 N-m
High side max pressure (Ps) 48.7 bar
High Side TS Max 150 ®C
High Side TS Min -35 ®C
High Side Volume 0.7 L
High value of nominal voltage at 50Hz [V] 0 V
High value of nominal voltage at 60Hz [V] 380 V
High value of voltage range at 50Hz [V] 0 V
High value of voltage range at 60Hz [V] 418 V
IP protection class IP54 (with cable gland)
Low side max pressure (Ps) 33.3 bar
Low Side TS Max 55 ®C
Low Side TS Min -35 ®C
Low Side Volume 11.7 L
Low value of nominal voltage at 50Hz [V] 0 V
Low value of nominal voltage at 60Hz [V] 380 V
Low value of voltage range at 50Hz [V] 0 V
Low value of voltage range at 60Hz [V] 342 V
LRA 124 A
Maximum Operating Current [MOC] 23 A
MCC 26 A
Model number SH090A9ALC
Motor protection Internal overload protector
Mounting torque [Nm] 15 N-m
Nominal cooling capacity 60 kBTU/h 92.49 kBtu/h
Nominal cooling capacity at 50Hz 19.8 kW
Nominal cooling capacity at 60Hz 27.1 kW
Number of starts per hour [Max] 12
Oil charge [L] 3 L
Oil equalization 1-3/4'' Rotolock
Oil reference 160SZ
Oil type POE
Power connections Screw 4.8 mm
Refrigerant R410A
Refrigerant charge [kg] [Max] 5.9 kg
Relief valve None
RLA 18.6 A
Rotational speed at 50Hz [rpm] 0 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 235 mm
Suction connection pipe size [in] 1 1/8 in
Suction connection size [in] 1 1/8 in
Swept volume [cm3] 88.4 cm±
Technology Scroll
Test dif [bar] [Max] 37 bar
Test HP [bar] [Max] 48.7 bar
Test LP [bar] [Max] 33.3 bar
Torque earth [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 482 mm
Type SH
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 1.05 Ohm



1. Danfoss compressor have Ultra high energy efficiency.
2.The motor can effectively protect the motor from the damage of high temperature
3.high voltage current, low noise low exhaust impulse noise value
4. Rugged Design and Proven Durability.
5. Straight Suction Tube Allows For Low Profile Application
6. Performance Improves as Scroll Sets Wear-In
7.Internal Motor Protection with Start Winding Protection on Single Phase Models
