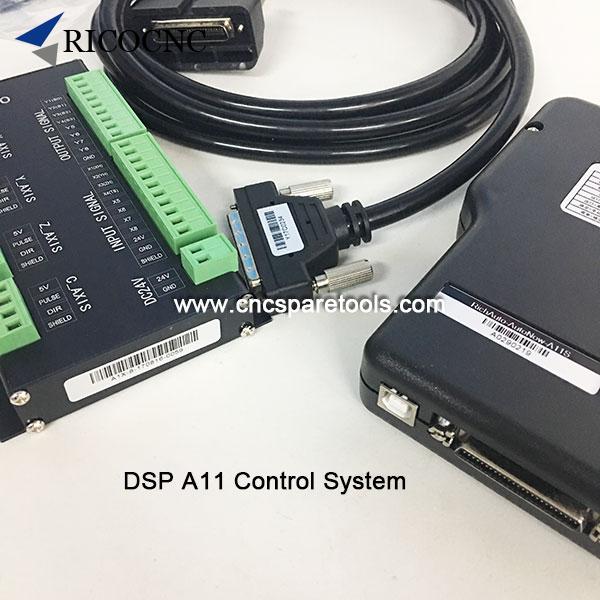

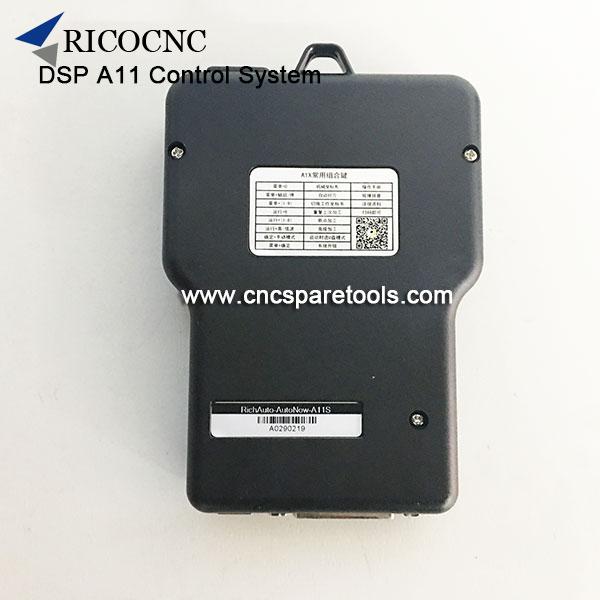

DSP A11 Control System Original Richauto Controller for CNC Router

DSP A11 Control System Original Richauto Controller for CNC Router
RichAuto A11E A11S with USB interface

DSP is short for digital signal processing. This A11 version DSP CNC controller is the updated controller on the base of DSP 0501 version, they are compatiable use. This CNC DSP control system is widely used with cnc router machines. Easy to operate, and can control without computer.

CNC Router DSP A11 Control System Specifications:
Contents Specification
Processor 160M DSP
File Memorizer 512M memorizer inside,
it supports file with any size because of adopting mobile memorize technology
Display LCD with 128 dot*64 dot
Communication Terminals USB terminal and U Disk
File Format G code , PLT files (optional)
Axes 3 axes
Help Function Useful help information and guide
Languages Chinese, English
Operating Interface Friendly Buttons and Menu Drive
Drive System Step Motors
Interpolation function linear, curve
Cutter Adjusting function Yes
Spindle Control Function Yes
System Data Inspect Function Yes
Processing Data Inspect Function Yes
Processing Position Adjusting Function Yes
Multi Working Coordinates It has 9 working coordinates
Stop Point Reprocessing Function Yes
Copy Processing Function Yes
Data protection when power off Yes
Working Temperature 0C to +70C
Humidity <90 no dew no frost
Outer Voltage 5 V
Consumptions 2 W
Dimensions(mm) 156*110*38

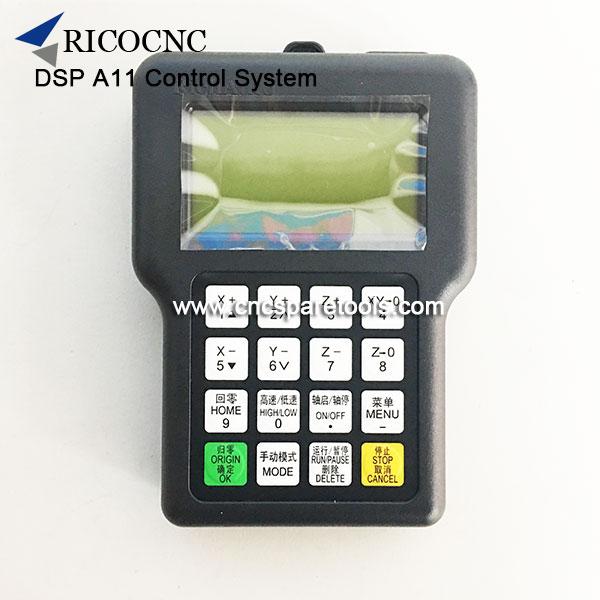

DSP A11 handheld controller can work without computer, easy operation and fast working speed. CNC Controller is the most important part for one CNC machine.
So here are some more points to introduce:
1). Support the standard G code, PLT format instructions; support domestic and international mainstream CAM software, such as: Type3, Art cam, UG, Pro / E, Master CAM, Cimatron, Wentai etc.
2). Provide with power-down protection. Instantaneous power processing system to automatically save the current processing of information
3). Support breakpoint memory, save 8 different breakpoint processing information.
4). Multicoordinate memory function. Provide nine working coordinate system,
5). Support online adjust spindle operating frequency. 1 - 8 threshold can be processed directly adjust up and down without suspend processing.
6). Support adjust working speed ratio online.
7). Simply manual operate mode: provides continuous, step (crawl), distance, manual operation became more simple and convenient.
8). Identifies M code, F code and other development commands, can open a special code based on user needs.
9). Comes with USB communications port, file transfer efficiency can be directly read U disk, card reader file, Plug and Play.
10). System can support automatic dynamic upgrades, convenient to remote operation, remote maintenance.

Also the DSP A11 controller manual can be sent for free here, welcome to contact us.

Here is the technical support: how to update DSP 0501 into DSP A11 control system, welcome to check.
