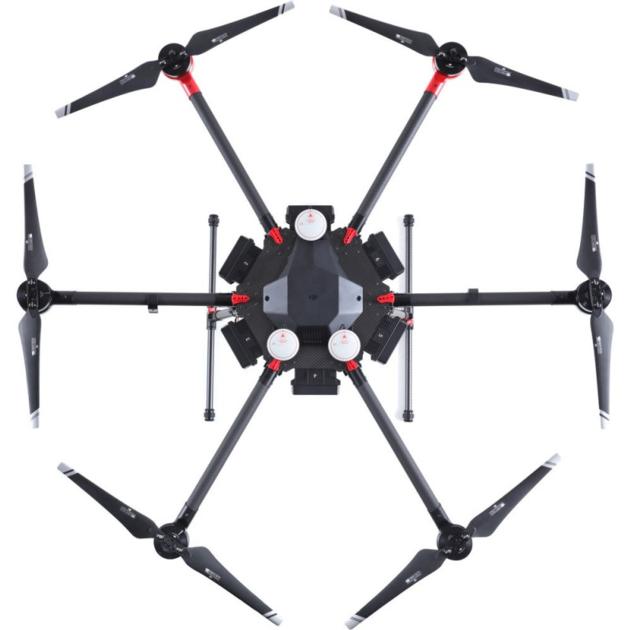

DJI Matrice 600 Pro Hexacopter

DJI Matrice 600 Pro
Performance
Maximum Speed Horizontal (No Wind): 40 mph / 65 km/h
Ascent: 16.4 ft/s (5 m/s)
Descent: 9.8 ft/s (3 m/s)
Maximum Wind Resistance 26.2 ft/s (8 m/s)
Maximum Altitude Above Sea Level: 8202.1' / 2500 m
Hovering Accuracy P-Mode with GPS:
Vertical: ¯1.6' / 0.5 m
Horizontal: ¯4.9' / 1.5 m
Maximum Angular Velocity Pitch: 300®/s
Yaw: 150®/s
Maximum Pitch Angle 25®
Hovering Time Six TB47S Batteries:
No payload: 32 minutes
13.2 lb / 6 kg Payload: 16 minutes

Six TB48S Batteries:
No payload: 38 minutes
12.1 lb / 5.5 kg payload: 18 minutes

Note: Hovering time is based on flying at 32.8' / 10 m above sea level in a no-wind environment and landing with 10% battery level.
Takeoff Weight 34.1 lb / 15.5 kg
Flight Ceiling 8202.1' / 2500 m above sea level
Flight Control System
Model A3 Pro
Transmitter (Remote Controller)
Frequency 5.725 to 5.825 GHz
2.400 to 2.483 GHz
Communication Distance 3.1 miles / 5 km
Transmitter Power 13 dBm at 5.8 G
20 dBm at 2.4 G
Connectivity 1 x HDMI
1 x SDI
1 x USB
Dual User Capability Master-and-slave control
Output Power 9 W
Operating Temperature 14 to 104®F / -10 to 40®C
Battery Type: Built-in
Chemistry: Lithium-ion polymer (LiPo)
Capacity: 6000 mAh
Configuration: 2S
Storage Temperature < 3 Months: -4 to 113®F / -20 to 45®C
> 3 Months: 72 to 82®F / 22 to 28®C
Charging Temperature 32 to 104®F / 0 to 40®C
Mobile Device Holder Supports smartphones and tablets
Maximum Device Width: 6.7" / 170 mm
Gimbal
Supported Gimbals Zenmuse X Series: X3, X5 & X5R, XT
Ronin Series: Ronin-MX
Zenmuse Z30
Zenmuse Z15 HD Series: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4
Flight Battery
Model TB47S
Chemistry Lithium-ion polymer (LiPo)
Capacity 4500 mAh / 99.9 Wh
Configuration 6 S
Weight 1.3 lb / 595 g
Maximum Charging Power 180 W
Operating Temperature 14 to 104®F / -10 to 40®C
Charging Temperature 41 to 104®F / 5 to 40®C
Storage Temperature < 3 Months: -4 to 113®F / -20 to 45®C
> 3 Months: 72 to 82®F / 22 to 28®C
Charger Model: MC6S600
Voltage Output: 26.1 V
Power Rating (Total): 600 W
Power Rating (Per Battery): 100 W
Motor
Model DJI 6010
Propeller
Model DJI 2170
General
Operating Temperature 14 to 104®F / -10 to 40®C
Diagonal Wheelbase 44.6" / 1133 mm
Dimensions Propellers, Frame Arms, and GPS Mount Unfolded: 65.7 x 59.8 x 28.6" / 1668 x 1518 x 727 mm (including landing gear)
Frame Arms and GPS Mount Folded: 17.2 x 15.8 x 21.8" / 437 x 402 x 553 mm (excluding landing gear)
Weight Six TB47S Batteries: 20.9 lb / 9.5 kg
Six TB48S Batteries: 22 lb / 10 kg
Packaging Info
Package Weight 43.7 lb
Box Dimensions (LxWxH) 26.614 x 20.709 x 19.291"
