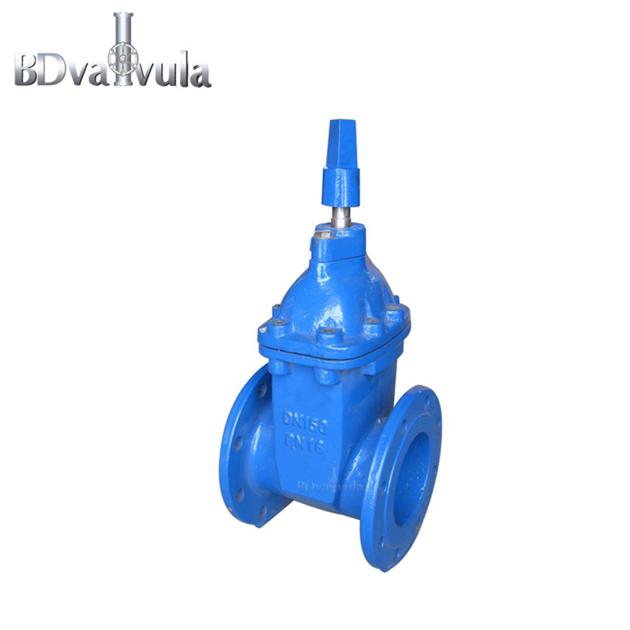

DIN3352 F4 EPDM Seal Flanged Gate Valves
| Price: | US$ 18.6 |
|---|---|
| Minimum Order: | 30 |
| Payment Terms: | T/T |
| Port of Export: | Tianjin Xingang, Shanghai Port, Ningbo Port |
Product Details
| Model No.: | Brand Name: | LSB |
|---|
| Certification: | ISO9001:2008/PED/API |
|---|---|
| Specification: |
Body material：ductile iron GGG50
Working pressure：PN16 Medium：water working temperature：-10®C~120®C |
Packaging & Delivery
| Packaging: | Wooden box packing |
|---|---|
| Delivery/Lead Time: | 10 Days |
| Production Capacity: | 100000tons/year |
Product Description
Parts and materials
Valve Body GGG50
Bonnet GGG50
Stem nut Brass
Disc GGG50+EPDM
sealing ring GGG50
Stem SS410
Bonnet Gasket EPDM
Holding ring Brass
1. Gate valve s are not recommended for throttling service. 2. These valves are to be used either fully closed or fully open position. 3. Different colours toidentify differents fluids.
Soft seal gate valve, industrial valve, the opening and closing part of soft seal gate valve is the gate, the movement direction of the gate is perpendicular to the fluid direction, the gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled. The gate has two sealing surfaces. The two sealing surfaces of the most commonly used model gate valve form a wedge. The wedge angle varies with valve parameters. The nominal diameter is DN50~DN1200, and the operating temperature: ≤200℃.
|
