DIN Thread Rubber Joint

Price: US$ $4.99-199 / Piece
Minimum Order: 10pcs
Payment Terms: T/T,LC/Western Union
Port of Export: Tianjin, Shanghai, Guangzhou, Shenzhen
Skype Me
Product Details
Model No.: DIN Brand Name: shunying
Certification:
Specification: Rubber Joint, DIN Standard Thread Rubber Joint
Packaging & Delivery
Packaging: Wooden boxes, cartons, according to customer needs
Delivery/Lead Time: 15-20days
Production Capacity: 100000 pieces/month
Product Description

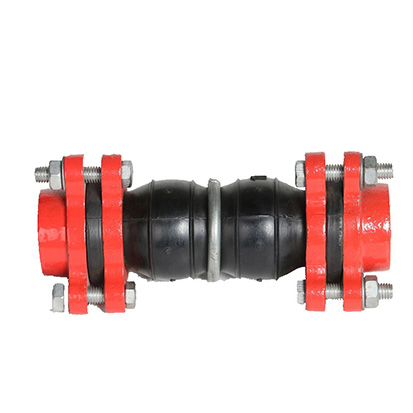

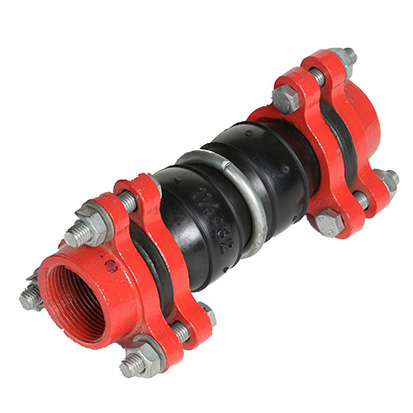

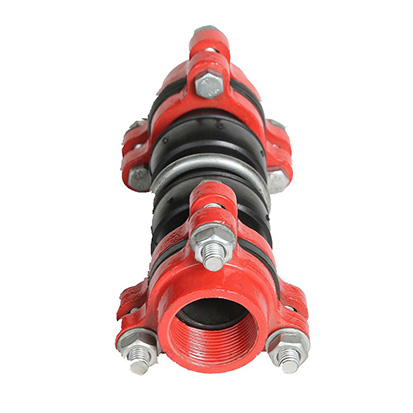

DIN Thread Rubber Joint
Thread Rubber expansion Joint
Rubber Joint, DIN Standard Thread Rubber Joint
Rubber expansion joint has the characteristics of good sealing, light weighting, easy to fix and maintain, also has long working expecting, but please keep far away from sharp metal in order to avoid breaking the rubber body.
Equipped with the excellent comprehensive performances of rubber expansion bellows, thread rubber bellows can be used for lift and transportation of raw water and sewarubberge, transportation of water supply, cooling cycle water of thermal power plant, condensate water of metallurgy industry and chemical materials of chemical industries, cooling and dilution of oil and chemical industries and flexible connection of other industries. It is also suitable to transport all grain and powder material and gas for its high abrasive resistance.
Due to its good integral function, flexible rubber joint is used widely in key projects of chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, health, fireproof and power, etc.
Item No. Parts Name Parts Material
1 Cover EPDM
2 Reinfording Fabric Nylon
3 Tube EPDM
4 Retain Rings Steel
5 Union Nut Carbon Steel
6 Un ion Screw Carbon Steel
TECHNICAL CONDITIONS
Working pressure Mpa (kgf/cm2) 1.6(16) Angular deflection 45®
Explosion pressure Mpa (kgf/cm2) 4.8 (48) Vacuum Kpa (mm/Hg) 53.3 (400)
Applicable Temperature -15℃-115℃(-30℃-250℃ under special conditions)
Applicable media water, sea water, hot water, air, compressed air, oil, acid, alkali and so on
MAIN DATE

Nominal Diameter
(mm) LengthLmm Axial displacement mm Haorizontal isplacement Angular deflection(a1+a2)®
mm inch Extension Compression mm
15 0.5 200 5-6 22 22 45
20 0.75 200 5-6 22 22 45
25 1 200 5-6 22 22 45
32 1.25 200 5-6 22 22 45
40 1.5 200 5-6 22 22 45
50 2 200 5-6 22 22 45
65 2.5 265 8-10 24 24 45
80 3 285 8-10 24 24 45
DIN Thread Rubber Joint
DIN Thread Rubber Joint
DIN Thread Rubber Joint
DIN Thread Rubber Joint
