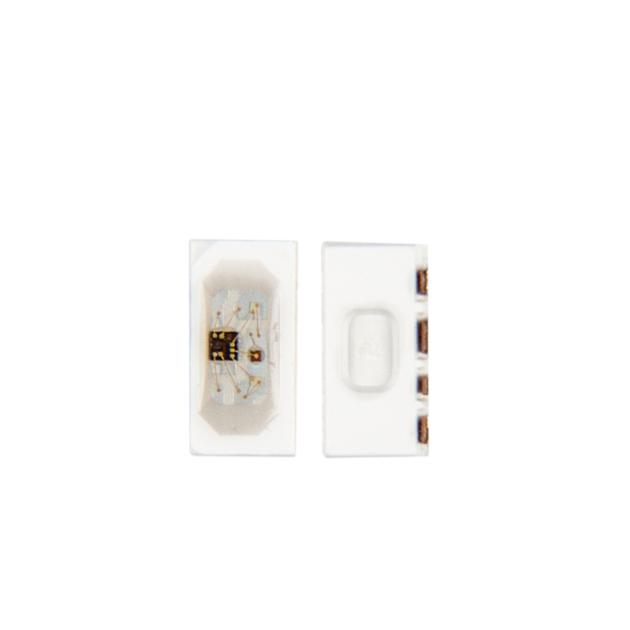

DC5V LED Chip SMD 4020 LED Side Emitting Chip Digital RGB SK6812 Chip

SK6812 4020 LED chip LC8812B side emitting led light DC5V

Product Description
1. Product Overview :

LC8812B is an external controlled intelligent LED with control circuit and light emitting circuit in one 4020 components. Each LED is a pixel, The pixel contains the intelligent digital interface data latch signal shaping amplifier driving circuit, power supply voltage regulator circuit, built-in constant current circuit, high precision RC oscillator, and the output driver adopts patented PWM technology, which Effectively ensure that the color of each pixel is consistent.
The data protocol being used is unipolar NRZ communication mode. After the pixel power-on reset, the DIN port receive data from controller,When the frist 24-bit data is extracted by the first pixel and sent to Data latch which inside the pixel ,The remaining data is processed by the internal shaping circuit, The remaining data is shaped and amplified by the internal shaping processing circuit, and then the output is forwarded to the next cascaded pixel through the DO port. The Data transmission through each pixel, the signal will reduce 24bit , The pixel is reset after the end of DIN. Using automaticshaping forwarding technology makes the number of cascaded pixels without signal transmission, only limited by signal transmission speed.
The LED has a low driving voltage, environmental protection and energy saving,high brightness, scattering angle, good consistency, low power, and long lifespan . The control circuit is integrated in the LED ,which make Components smaller and more easier to install.

2. Applications
Full-color module, Flexible led Strip ,Rigid led strip
LED decorative lighting, LED Panel a variety of electronic products, electrical equipment etc

Product Name

LC8812B-4020 LED Chip

LED type

4020 SMD LED

IC type

LC8812B

Emitting Color

Digital RGB

Voltage

DC5V

Gray Scale

256

Moisture-proof grade

LEVEL5a

Certification:

CE, EMC, FCC, LVD, RoHS



Packaging & Shipping
Packaging:

1500pcs per reel ,one reel in one Package bag

Anti-static bags+Neutral packing carton box

Shipment:

1.Ship Way:Door to Door express or by Air and Sea

2.Shipping port: Shenzhen, Mainland China

3.Leadtime:Sample can be delivered in 3-5days

4. Production lead time for 10000M:7-10days

Our Services
1.Reply you in 24 hours

2.Customized design,ODM/OEM Customized Service are available
3.Professional engineer team provide full support in the whole control system solutions.
4.Experienced sales consultant to cooperate with your work





Warranty:

1.All products we sell are in good quality and have been tested before they are shipped out.

2.We offer 3 years Warranty.

Company Information
Shenzhen LED Color Co., Ltd. is a leading manufacturer of digital LED packaging and LED strip lighting products in China. The company was established in 2012 and is a national high-tech enterprise specializing inthe design and manufacturing.We have a standard factory building of more than 8,000 square meters and more than 100 employees. And set up a professional and precise LED strip dust-free workshop, with 30 LED encapsulation production lines, multiple LED strip automatic production lines, 4 high-speed SMT assemble machines, various advanced instruments and equipments.

With 10 years of R&D and production experience technical team,we have successfully launched the addressable LED Chip, ordinary SMD LED, digital LED strips, ordinary flexible LED strip lights, COB LED strips, LED flex neon, CCT adjustable strip, RGBW led tape, constant voltage led strip lights and so on.We can provide customers wit a complete product line and OEM/ODM,customized production solutions.

DC5V LED Chip SMD 4020 LED Side Emitting Chip Digital RGB SK6812 ChipDC5V LED Chip SMD 4020 LED Side Emitting Chip Digital RGB SK6812 ChipDC5V LED Chip SMD 4020 LED Side Emitting Chip Digital RGB SK6812 ChipDC5V LED Chip SMD 4020 LED Side Emitting Chip Digital RGB SK6812 Chip

FAQ
Why Choose Us ?

1.Factory manufacturer,we can control the production process ,all our products have quality assurance,higher cost-effective and Fast delivery.

2.OEM/ODM Service:we are factory maufacturer and can provideOEM/ODM,customized service to meet customers` different demand.

3.Prefessional in LED:our factory team has 10 years experience in the area of the digital led strip works.

4.Quality Assurance:all our products have to be 100% aged and QC testment before delivery.

5.Payment protection:pay via alibaba 100% payment protection for your covered amount.
