Cylindrical diamond grinding wheel Used for milling cutter 1A1 14A1 [email protected]
| Price: | US$ USD10~100/pce / Piece |
|---|---|
| Minimum Order: | 10 |
| Payment Terms: | TT/Paypal/western union |
| Port of Export: | shanghai qingdao |
Product Details
| Model No.: | as required | Brand Name: | moresuperhard |
|---|
| Certification: | ISO 9001 |
|---|---|
| Specification: | ISO9001 |
Packaging & Delivery
| Packaging: | carton box with foam box |
|---|---|
| Delivery/Lead Time: | 7~15 workdays |
| Production Capacity: | 5000pcs/mth |
Product Description

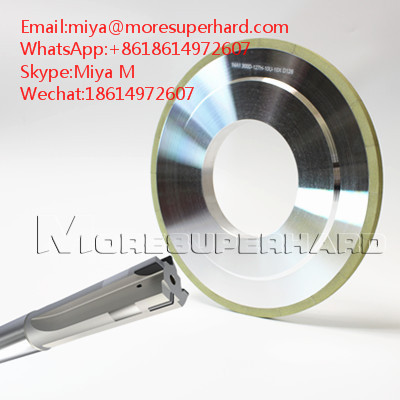

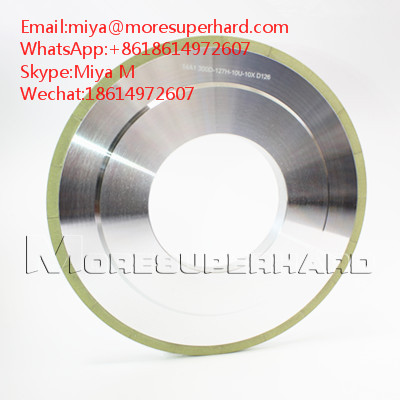

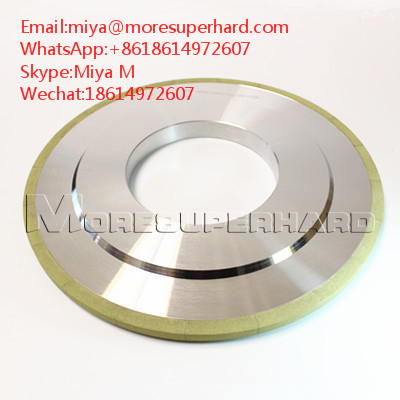

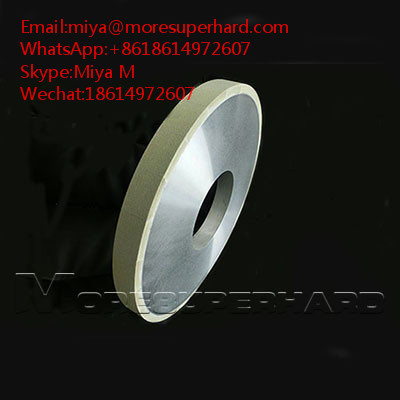

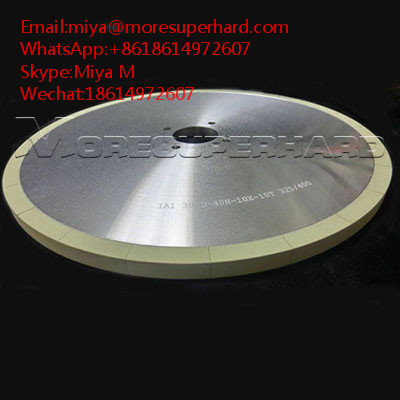

Name: Cylindrical diamond grinding wheel
Type: 1A1 , 14A1
Brief Introduction : vitrified diamond grinding wheel is used for PCD reamers grinding. It enjoys high grinding power,long working life, good surface quality.
Application: PCD reamers grinding
Details
Introduction of Cylindrical Diamond Wheels
Vitrified diamond grinding wheel is used for PCD tools grinding with large cylindrical grinding machines.The PCD tools in automotive industry include PCD profile cutters, PCD reamers and PCD milling cutters.
Advantages Of Cylindrical Diamond Wheels
Enjoys strong sharpness, high self-sharpening good surface finish after grinding.
High efficiency,Less dressing time,Long service life and stable quality.
Specifications Of Cylindrical Diamond Wheels
Model D (mm) T (mm) H (mm) X (mm) U (mm)
300 20 127 10 10
350 20 127 10 6
400 35 152.4 10 7
Other specification can be made according to customers requirement.
Model D (Mm) T (Mm) H (Mm) X (Mm) U (Mm)
200 50 75 10 -
250 50 75 10 -
300 50 127 10 -
350 50 127 10 -
400 50 203 10 -
450 50 228.6 10 -
500 50 305 10 -
300 20 127 10 10
350 20 127 10 6
400 35 152.4 10 7
Other Specification Can Be Made According To Customers Requirement.
Advantages of vitrified diamond wheels for PCD and PCBN tools :
* The porous structure of the abrasive improved diamond exposure and Can Prevent Vertical Streaks On Workpiece And Improve Surface Quality
* Accurately control geometric tolerances to make a good abrasive layer
* Good Self-Sharpening, High Grinding Efficiency,High Wear Resistance And Less Abrasive Grain Consumption
* High Precision Workpiece. PCD Tools Can Reach High Efficiency , Good Surface Finish And Edge No Chipping
* Vitrified Bond Wheels Offer Tool Life Greater Than 150 Times That Of A Resin Bond Wheel And Can Be Easily Trued And Dressed On The Machine
Material:Diamond /CBN
Size:150x20x40x40x10
Please don't hesitate to contact me if you have any needs:miya AT moresuperhard.com
Our company also produces a series of diamond and CBN tools,welcome to consult and choose at any time
|
