Cyanlite 125lm/W LED Backlight Panel for T grid ceiling gypsum ceiling concealed ceiling
| Price: | US$ 9.9 / Piece |
|---|---|
| Minimum Order: | 20pcs |
| Payment Terms: | T/T, L/C |
| Port of Export: | Shanghai |
Product Details
| Model No.: | PB35W060P | Brand Name: | Cyanlite |
|---|
| Certification: | CE, RoHS |
|---|---|
| Specification: |
Cyanlite 125lm/W LED Backlight Panel for T grid ceiling / metal ceiling / concealed ceiling / gypsum board ceiling
- For T15/T24 Lay-On ceiling - LED backlight technology, EN 12464-1& LG7 Compliant, UGR<19 Optional - 5 Years Warranty; CE, RoHS2.0, REACH approval Product description：Cyanlite Backlite LED panel for Lay-On ceiling, non-yellowing lens & FF driver. COI<3.3 compliant, daylight and motion sensor by smart control, tunable white and RGBW optional. |
Packaging & Delivery
| Packaging: | carton/pallet |
|---|---|
| Delivery/Lead Time: | 1 week |
| Production Capacity: | 200,000pcs/month |
Product Description

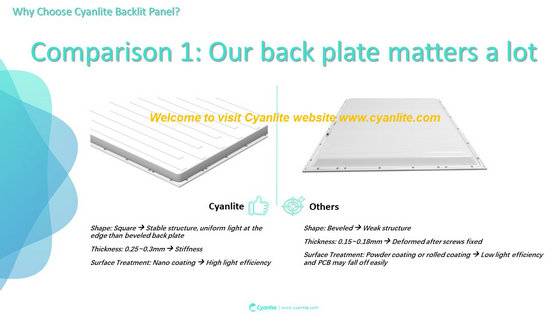

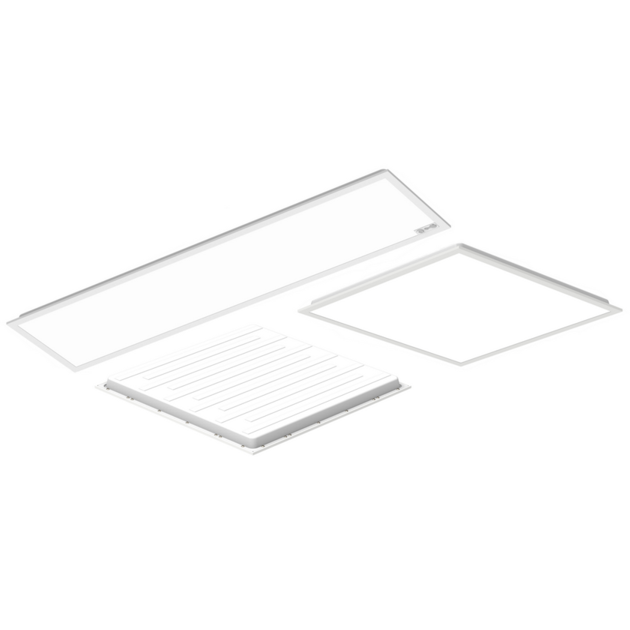

The Cyanlite™ LED backlite LED panel light is a solution for T15/T24 Lay-On ceiling in standard sizes and has perfect counterpoise of LPW and price, i.e. 125lm/W and 100lm/W optional. It is supplied with non-yellowing lens, nano coated back plate in shape of square for stiffness. More functions are available already, such as integrated with Philips occupancy sensing, daylight harvesting and task tuning, controlled with Android smartphone App; COI<3.3 compliant for medical lighting; tunable white from 3000K to 6000K for Human Centric Lighting; and RGBW for decorative lighting.
• Advantages

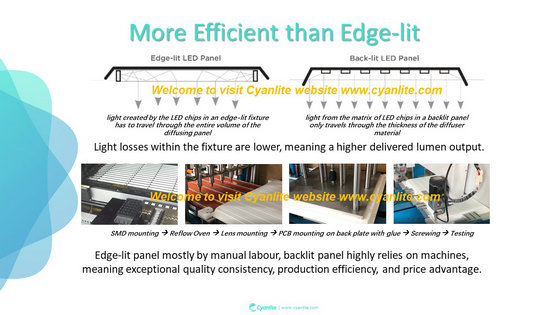

- Backlight technology for high efficiency
- Non-yellowing PMMA lens and Flicker Free driver as standard
- Exceptional quality consistency thanks to fully assembled by machines
- Easy and fast installation, tool-less installation, saving installation cost
- Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership
• Features
l Standard sizes (mm): 600x600, 625x625, 300x1200, 600x1200
l RAL9016 white as standard, other RAL colors available on request
l System Efficiency upto 120 lm/W
l EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser
l Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K
l 5 Years Warranty
l Various dimming options, including 0-10V, DALI, Switch Dim etc.
l Emergency options available
|
