Cut Off Filter

Infrared cut filter is the use of precision optical coating technology on optical substrate plating alternately high and low refractive index of optical film, achieve high visible light area (400-630 nm), near infrared (700-1100 nm) as optical filter, mainly used in mobile phone cameras, computer are photographed a built-in camera, car camera digital imaging field, is used to eliminate the influence on CCD/CMOS imaging infrared light.By imaging system with IR cutoff filter, block the part of the interference imaging quality of infrared light, can make the image more in line with the human eye made by the best feeling.

Description Of Cut Off Filter

Infrared cut filter is the use of precision optical coating technology on optical substrate plating alternately high and low refractive index of optical film, achieve high visible light area (400-630 nm), near infrared (700-1100 nm) as optical filter glass, mainly used in mobile phone cameras, computer are photographed a built-in camera, car camera digital imaging field, is used to eliminate the influence on CCD/CMOS imaging infrared light.By imaging system with infrared end filter, block the part of the interference imaging quality of infrared light, can make the image more in line with the human eye made by the best feeling.

Description
Specifications Of Cut Off Filter

Material: Optical Glass

Dimension:80mmx80mmx.03mm or customized size

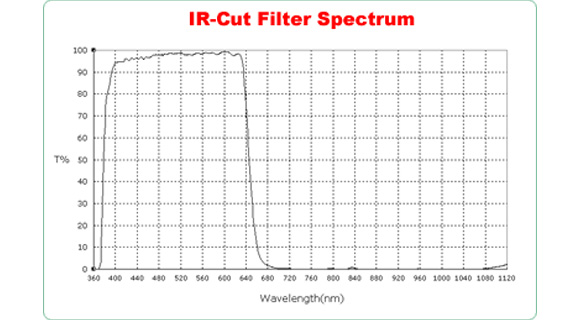

Cut-off Wavelength Specification
630nm Tavg>90%@400-580nm,T=50%@630¯10nm,Tavg<3%@680-1050nm
635nm Tavg>90%@420-590nm,T=50%@635¯10nm,Tavg<3%@680-1050nm
645nm Tavg>90%@420-600nm,T=50%@645¯10nm,Tavg<3%@700-1050nm
650nm Tavg>90%@420-600nm,T=50%@650¯10nm,Tavg<3%@700-1050nm
680nm Tavg>90%@420-630nm,T=50%@680¯10nm,Tavg<3%@730-1100nm
690nm Tavg>90%@420-640nm,T=50%@690¯10nm,Tavg<3%@740-1100nm
700nm Tavg>90%@420-650nm,T=50%@700¯10nm,Tavg<3%@750-1100nm
705nm Tavg>90%@420-650nm,T=50%@705¯10nm,Tavg<3%@750-1100nm

Ecoptik is a professional optical components companies, we provide custom optical components, optical component and etc. Want to know more? Please contact us.
