Customized 1/8 Bottom Port Pressure Gauge for Industrial Field
| Price: | US$ 1.26 / Piece |
|---|---|
| Minimum Order: | 200 pieces |
| Payment Terms: | T/T,L/C, D/P, D/A, Money Gram, Paypal, Western Uni |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | Y40 | Brand Name: | Naite or OEM |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
Pressure gauge,glycerine oil filled
Dial:1.5"(40mm),2"(50mm), 2.5"(63mm),3"(75mm),4"(100mm) case:St.st.304 Bezel: A: Crimped St.st.304 B:Bayonet St.St.304 (Dia.63,75,100mm) Window:plexiglass Internal: copper alloy Liquid filled: glycerine fillable Connection:BM (bottom connection) BMR(bottom connection with rear flange) BK(central back connection) BKF(central back connection with front flange) LBK(low back connection) LBKF(low back connection with front flange) Accuracy:1.6% or 1% Thread:1/8"BSP brass for 40mm 1/4"BSP brass for 50mm 1/4"BSP,3/8"BSP,1/2"BSP brass for 63mm,75mm,100mm Range: 0+1, 0+100, -1+0 Bar & Psi / Kg/cm2, or according to customer's requirement |
Packaging & Delivery
| Packaging: | 1,each pressure gauge put into a small polybag,then put into paper bag, 100 pcs a carton box 2, our |
|---|---|
| Delivery/Lead Time: | 35 days after receive customer make payment |
| Production Capacity: | 200000 pieces/month |
Product Description

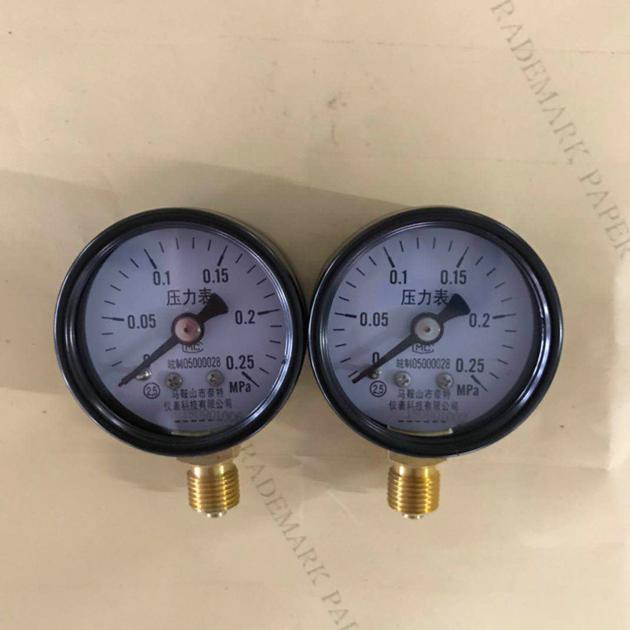

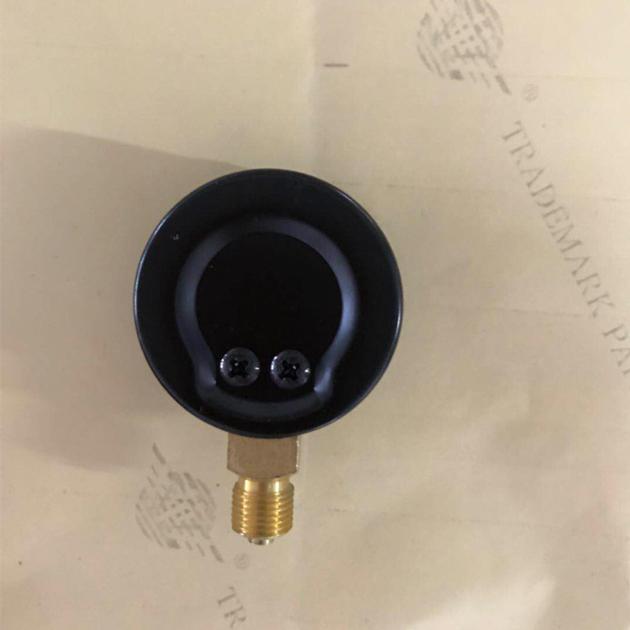

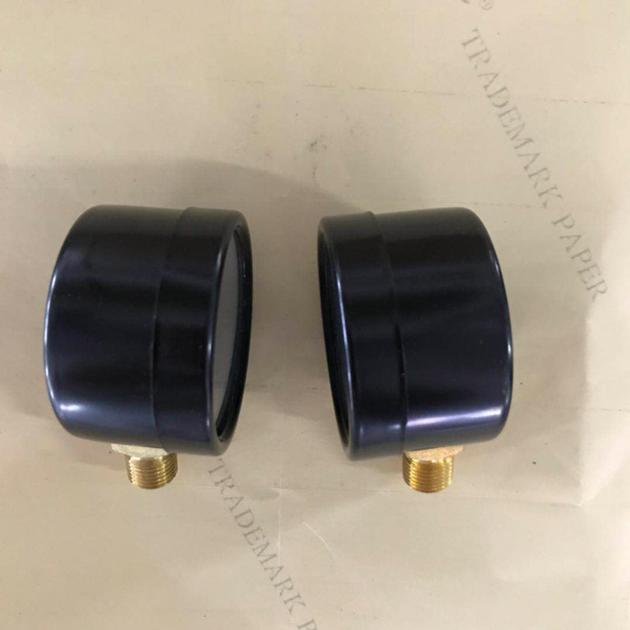

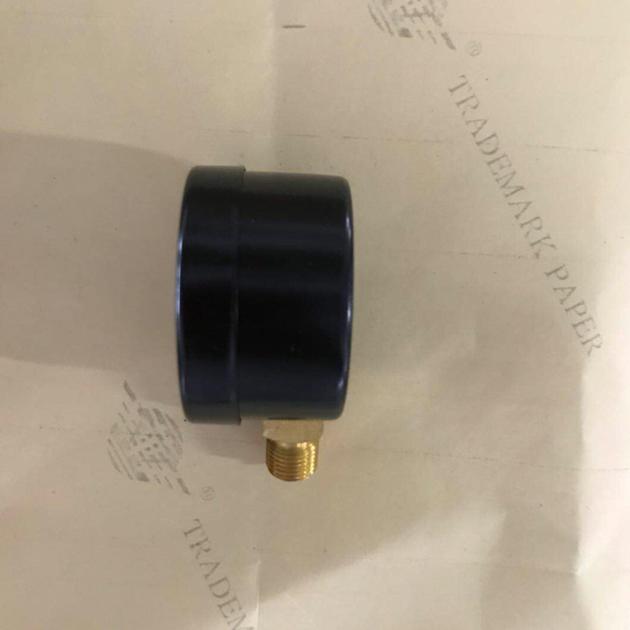

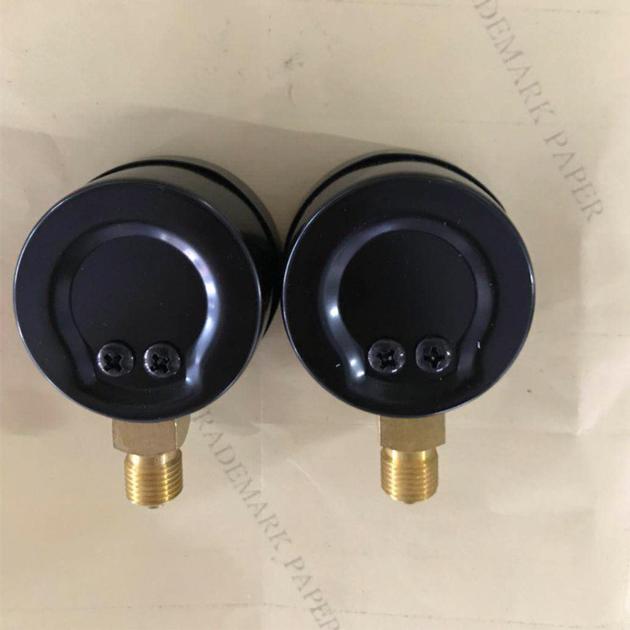

Customized 1/8 Bottom Port Pressure Gauge for Industrial Field
Pressure Gauge Description
Dials Size: 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)Case SS304
Pressure range: 0 -100Mpa,other scale units bar, psi, kg/cm2 etc.optional
Ring: Non, black steel or chrome plated
Movement: Brass,SS304 or SS316SocketBrass,SS304 or SS316
Bourdon tube:Phosphor Bronze,SS304 or SS316
Dial plate and pointer : Aluminum
Window: Glass or Safety glass
Connection sizes :1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case
Connection threads: Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting: Bottom, back and panel
Accuracy: 2"(50mm), 2.5(63mm)-2.5% ,4(100mm) and 6 (150mm)-1.6%
Pressure limitation : 1:Steady: 3/4x full scale value
2: Fluctuation:2/3x full scale value
3:Short time:full scale value
|
