Customized 0.5um Titanium Rod Filter Cartridge Special Interface

https://*/microporous-filter-components/customized-0-5um-titanium-rod-filter.html

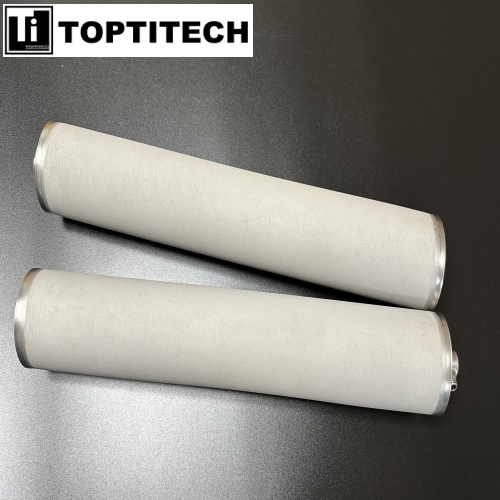

Customized 0.5μm Titanium Rod Filter Cartridge with Special Interface, offered by TOPTITECH, is a high-performance filtration solution designed to deliver excellent filtration efficiency and durability. Whether it is utilized for water treatment in industrial production processes or experimental water in the laboratory, the Customized 0.5μm Titanium Rod Filter Cartridge Special Interface ensures the purity and safety of the water source.

The Customized 0.5μm Titanium Rod Filter Cartridge Special Interface is constructed using precision titanium alloy material, renowned for its lightweight yet robust properties, exceptional corrosion resistance, and high-temperature tolerance. This enables the filter cartridge to perform admirably in demanding operating environments, remaining impervious to corrosion or damage. Furthermore, the titanium alloy material exhibits excellent biocompatibility, ensuring that no harmful substances are released into the filtered liquid, thus guaranteeing the safety of the filtered water source.

With a filtration accuracy of 0.5 microns, the custom-made titanium rod filter cartridge special interface efficiently removes harmful substances such as microscopic particles, bacteria, and viruses. Whether in industrial production processes that require the removal of suspended solids and impurities or in laboratory settings necessitating high-purity experimental water, this filter cartridge meets the specific requirements. Its precise filtering structure ensures reliable and consistent filtration performance, effectively improving product quality and production efficiency.

Parameter
Material:Titanium
Diameter: φ70 mm
Length: 500mm
Pore size: 0.5um

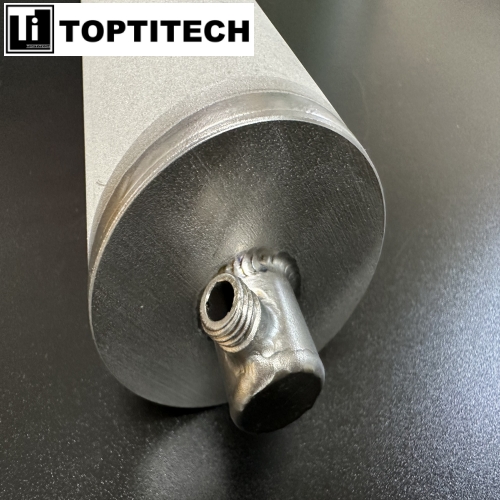

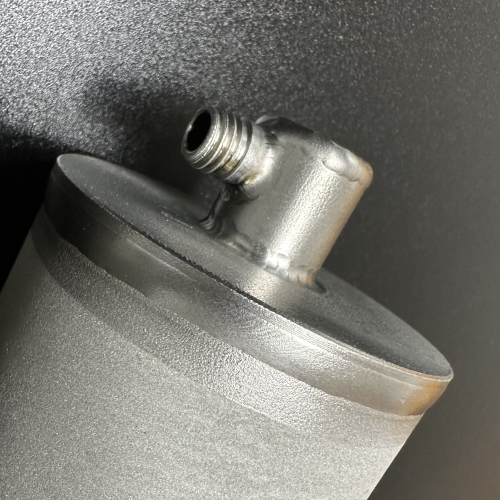

Interface form: One end is closed with a flat bottom, and the other end is customized with a special interface


Several interface connection methods of titanium rod filter cartridge：
Threaded connection: The filter element has a threaded interface, such as NPT, BSP, etc. Suitable for scenes with high fastening and sealing requirements.

Quick connector connection: The filter element is equipped with a quick connector, such as a quick release connector or a push-pull connector. It is convenient for frequent filter replacement or quick connection application scenarios.

Flange connection: The filter element has standard flange size and connection method, such as ANSI, DIN, etc. Suitable for high pressure or high flow applications.

Clamping connection: The filter element is fixed in the filter element housing by a clamping device. Suitable for quick installation and replacement of filter elements without additional tools.

Custom interface: according to specific needs, the interface connection method of special shape or size can be customized to ensure compatibility with existing systems.

Features
1.High filtration accuracy: With a filtration accuracy of 0.5 microns, it can effectively remove tiny particles and microorganisms.
2.Corrosion resistance: Titanium material has good corrosion resistance and is suitable for handling various chemical media.
3.High temperature tolerance: It can operate stably in high temperature environment and is suitable for high temperature process applications.
4.Long service life: It has a long service life, reducing the frequency of filter replacement and maintenance costs.
5.Customized design: Customized design can be carried out according to different application requirements to meet the requirements of specific scenarios.
6.Easy installation and replacement: Special interface design is adopted, which is convenient for quick installation and replacement of filter elements.


Application
1.Water treatment: used to remove suspended solids, impurities and microorganisms, and improve the purity of water quality.
2.Chemical process: used for water treatment to ensure the safety of the production process and product quality.
3.Food and beverage production: used to remove microorganisms, pigments and odors to ensure product hygiene and taste.
4.Pharmaceutical industry: used for water treatment to ensure the purity and safety of medicines.
5.Laboratories and scientific research institutions: provide high-purity experimental water to meet the needs of scientific research.
